Arlows Ø 22mm Aluminium Ringstück / Banjo auf Dash 10

18,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	17,75 €*
5	17,20 €*
10	16,64 €*

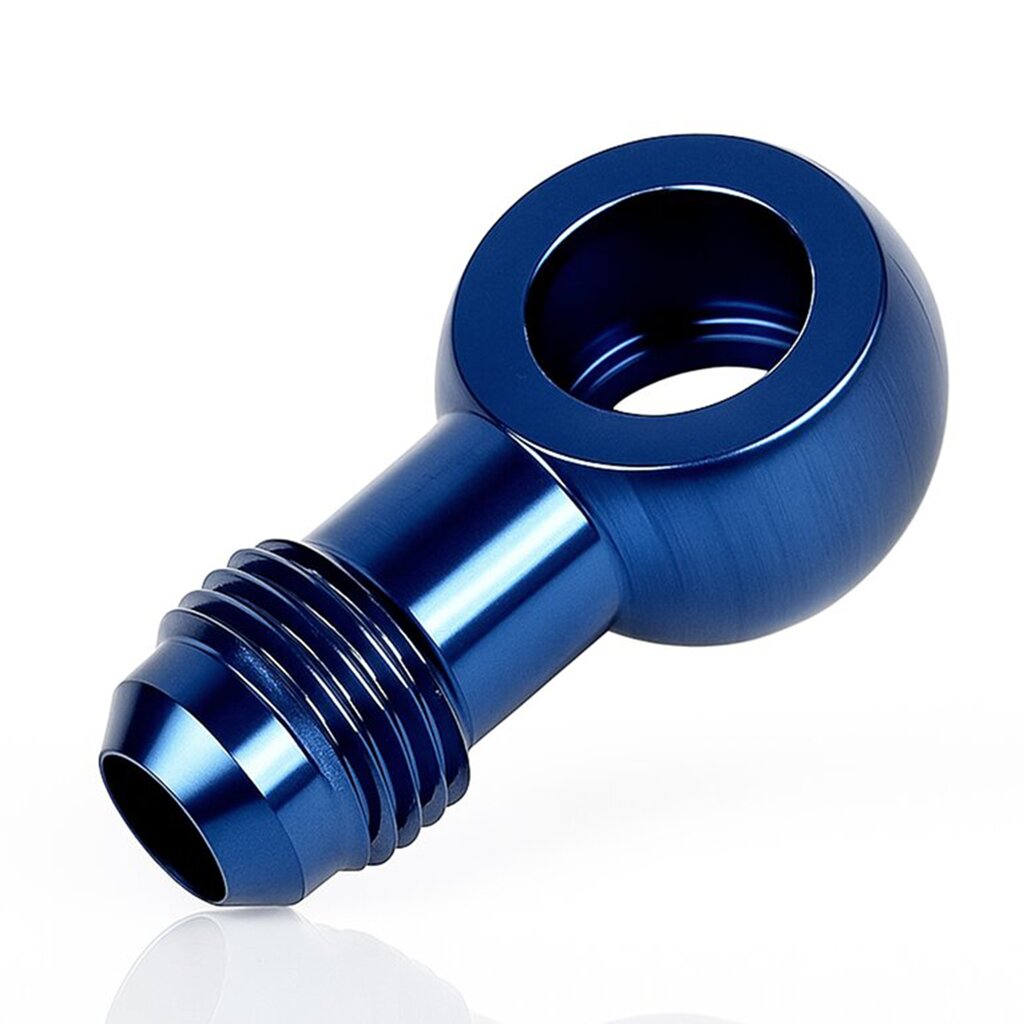

Arlows Ø 22 mm Aluminium banjo fitting to Dash 10
Connect an AN line through a banjo fitting.

Bore: 22 mm
Material: Aluminium
Colour: Blue anodised
Connection thread: Dash 10 UNF thread

Available now!
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

ARLOWS · AR2673

Arlows Ø 22 mm Aluminium banjo fitting to Dash 10

Connect an AN line through a banjo fitting.
This aluminium banjo fitting connects the specified AN thread to a compatible hollow-bolt assembly. The bore diameter helps you select the matching bolt diameter. This version: Bore: 22 mm. Connection thread: Dash 10 UNF thread.

Benefits at a glance

BANJO TO AN CONNECTION

The design connects an AN line to a suitable hollow-bolt port.

SPECIFIED BORE

The bore diameter helps you select the matching component.

Technical specifications

Bore	22 mm
Material	Aluminium
Colour	Blue anodised
Connection thread	Dash 10 UNF thread
SKU	AR2673

Applications

For compatible banjo ports in custom line assemblies. The bolt must match the bore, banjo thickness and receiving thread.

Installation & notes

Select a compatible hollow bolt and suitable sealing washers. Align the banjo without strain and assemble with the required seals. Check engagement length and fluid passages. Connect the AN mating fitting at its matching sealing face and leak-test the complete assembly.
