ARLOWS · AR2647

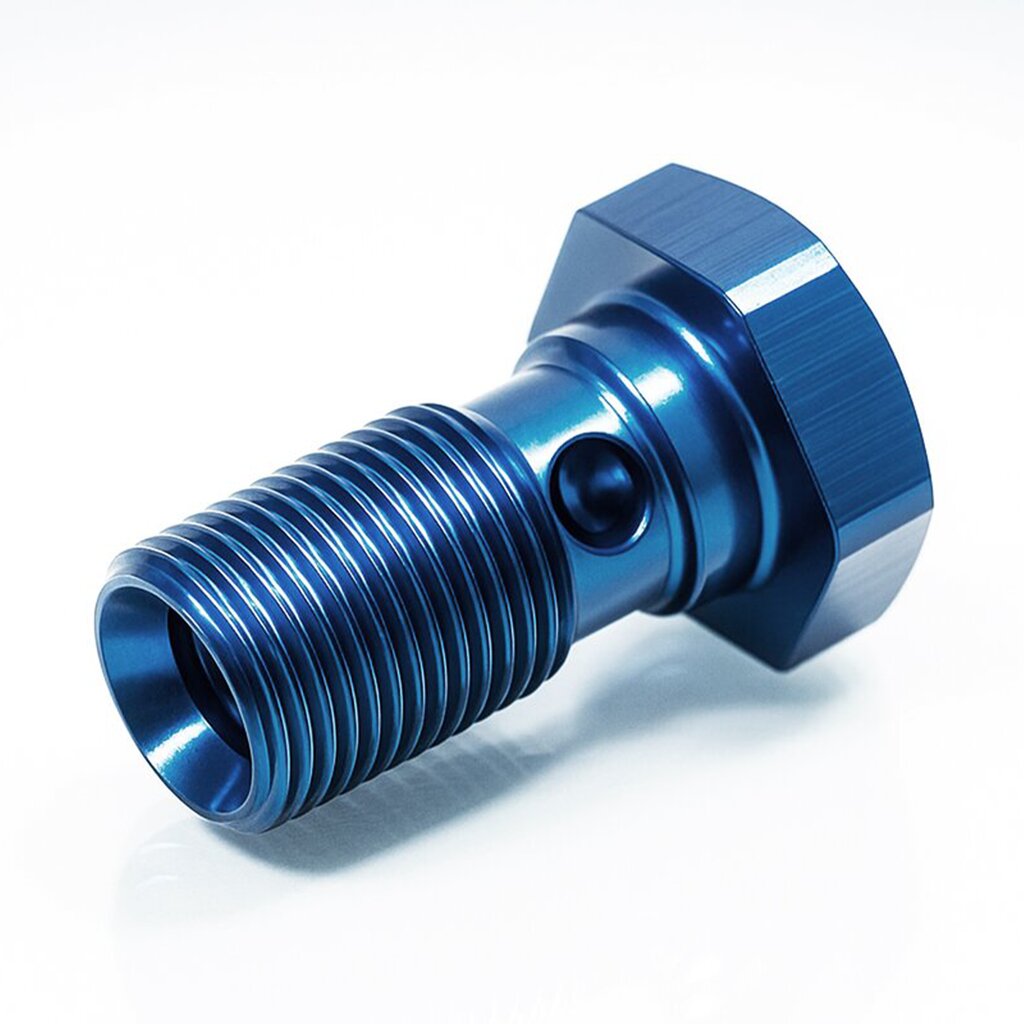

Arlows Aluminium banjo bolt M22 x 1.5 ( Blue anodised )
A banjo bolt for the matching connection.
This aluminium hollow bolt connects a suitable banjo fitting to a matching threaded port. Its internal fluid passage allows the line to connect through the banjo. This version: Thread: M22 x 1.5.
Benefits at a glance
SPECIFIED THREAD
The thread specification helps you check the receiving port.
MATCH THE BANJO
Match the bolt, banjo fitting and seals as a complete assembly.
Technical specifications
| Thread | M22 x 1.5 |
|---|---|
| Material | Aluminium |
| Colour | Blue anodised |
| SKU | AR2647 |
Applications
For compatible banjo assemblies. The thread, bolt length, banjo thickness and sealing surfaces must match the intended assembly.
Installation & notes
Check the thread, bolt length, banjo thickness and sealing faces. Install suitable new sealing washers at the intended sealing positions. Start the bolt by hand and tighten to the connection component instructions. Keep the fluid passages unobstructed and leak-test before use.
Common question
Will any banjo bolt with the same thread fit?
No. Engagement depth, banjo thickness and the position of the fluid passages must also match the assembly.
