Description
ARLOWS · SENSOR ADAPTER

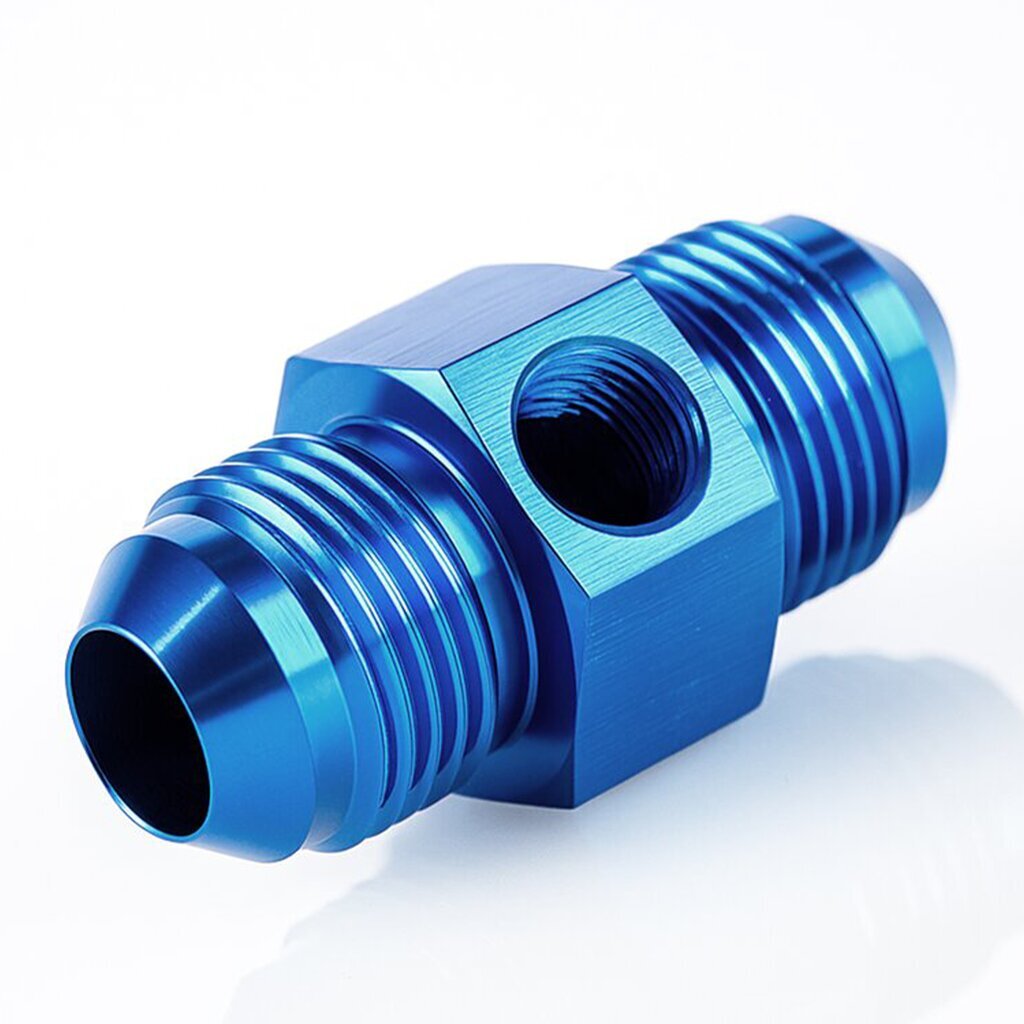

Arlows AN-10 1/8" NPT Sensor adapter ( male - male / Blue )
Add a sensor directly to the line.
This CNC-machined aluminium sensor adapter connects two compatible AN fittings and adds a 1/8-inch NPT sensor port. It lets you place a measurement point within the line route.
This version: AN-10, Blue.
Key benefits
IN-LINE MEASUREMENT POINT
The additional port accommodates a sensor between two sections of the line.
1/8-INCH NPT
The specified sensor thread helps you select a compatible sensor.
ALUMINIUM
The aluminium component supports a weight-conscious plumbing layout.
Technical specifications
| Manufacturer | Arlows |
|---|---|
| SKU | AR7861 |
| AN size | AN-10 |
| Component | Sensor adapter |
| Material | Aluminium |
| Colour | Blue |
| Connections | 2× male |
| Sensor thread | 1/8" NPT |
| Manufacture | CNC-machined |
Applications
For compatible sensors, for example for oil temperature or fuel pressure measurement. The sensor, line and adapter must be suitable for the fluid and operating conditions.
Installation & notes
Depressurise the system before installation. Check sensor thread, insertion depth and clearance for the connector and wiring. Install the sensor with suitable NPT sealant as directed by its manufacturer, keeping sealant out of the flow passage. The sensor tip must not unduly restrict flow. AN flare connections seal at the matching sealing face rather than with thread tape. Follow the tightening instructions for the components used and leak-test the completed assembly before operation.
Permitted operating conditions depend on the ratings of every component in the assembly.
Common question
Is a sensor included?
The product data describes the adapter. An included sensor is not specified.
Complete your plumbing assembly
Select mating fittings, lines and supports to match the connection and application.
