Arlows V-Band Set mit Schnellverschluß 2,375" / 60,3mm ( selbstzentrierend, Edelstahl )

43,90 €
including 19% VAT. , plus shipping (Paketversand)
From Price per unit
2 42,58 €
3 41,70 €
5 40,39 €
Arlows V-Band Set mit Schnellverschluß 2,375" / 60,3mm ( selbstzentrierend, Edelstahl )
Available now!

Shipping time: 1 - 2 workdays

Description

V-BAND 60,3 MM TT00603

Arlows V-Band set 60,3 mm / 2,375 in

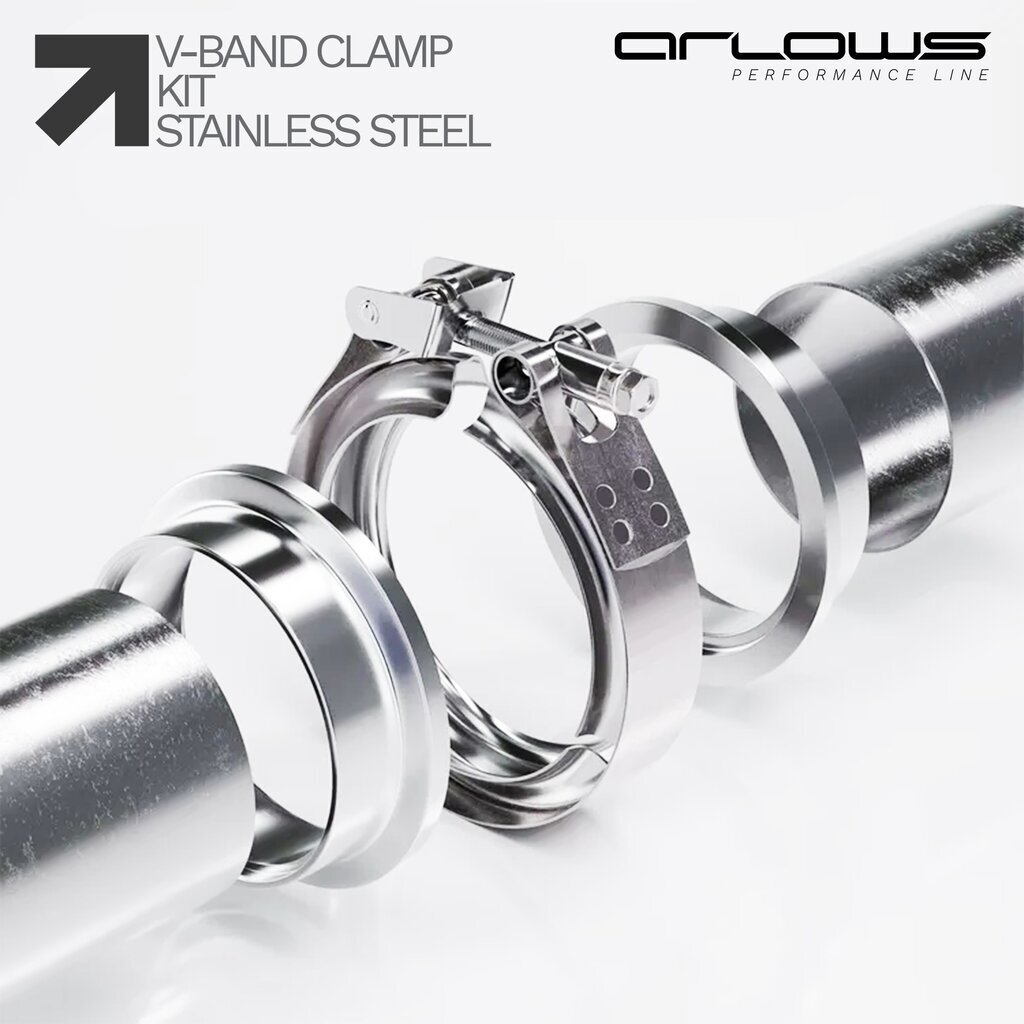

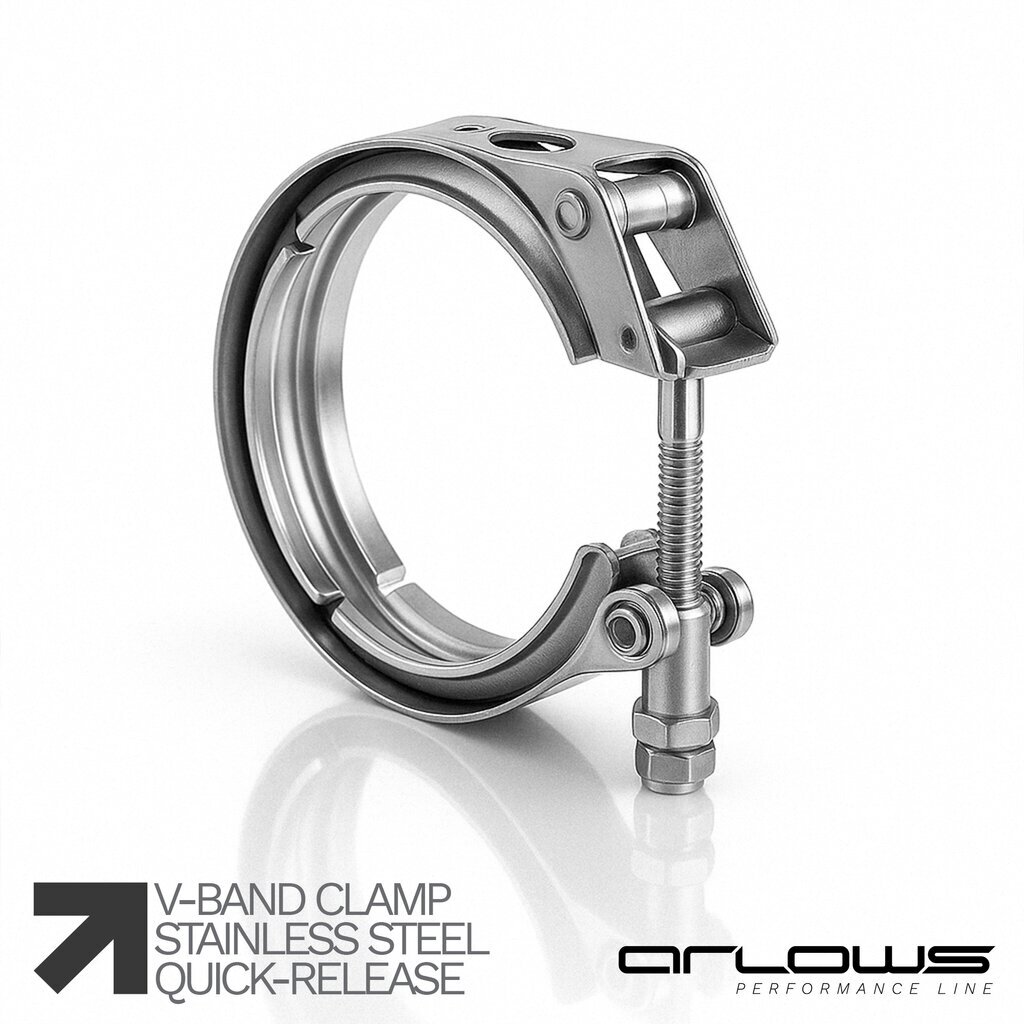

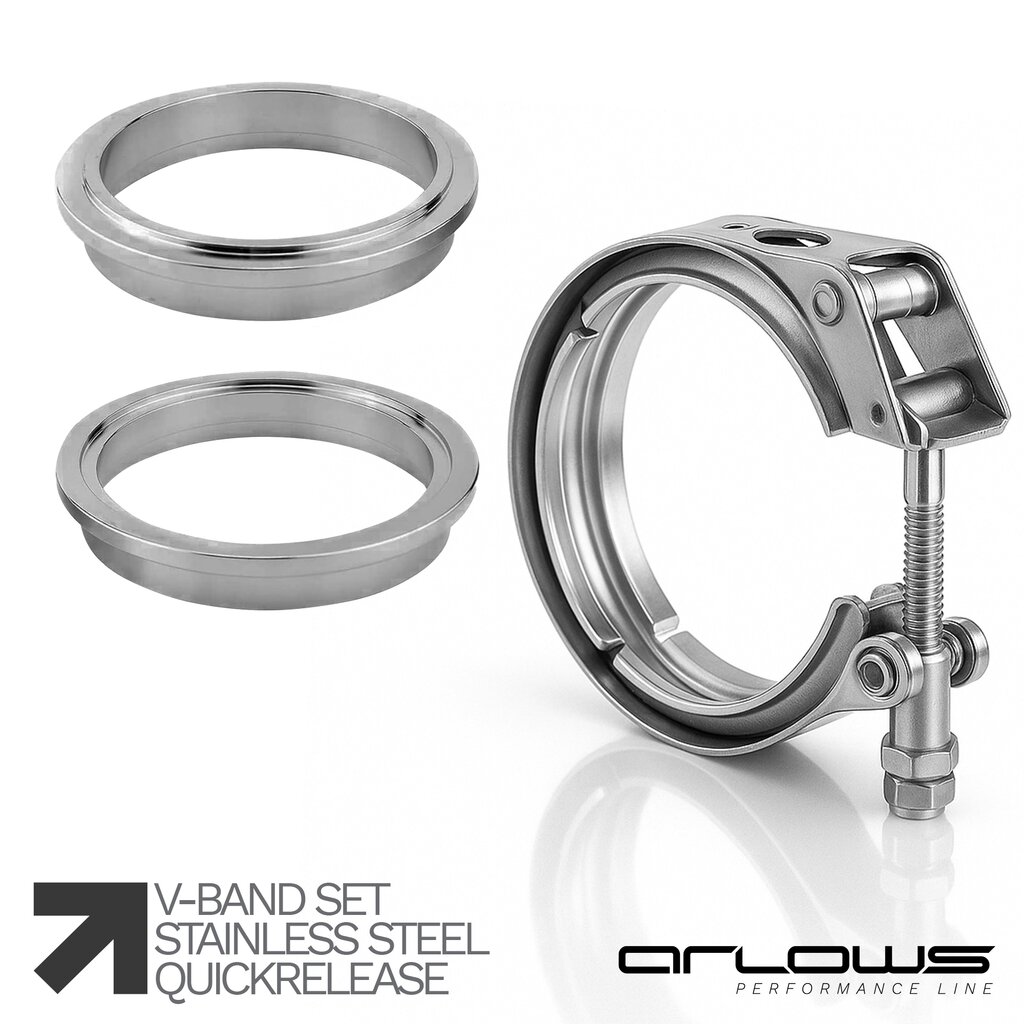

Clamp plus two weld rings for 60,3 mm / 2,375 in stainless tube.
Clamp plus two weld rings for 60,3 mm / 2,375 in stainless tube. A joint you can open without cutting the weld. Male and female ring centre on the groove. Quick release for tight spots.

OPENS

Clamp off, part off. Turbo, downpipe and test flange without cutting the flex.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

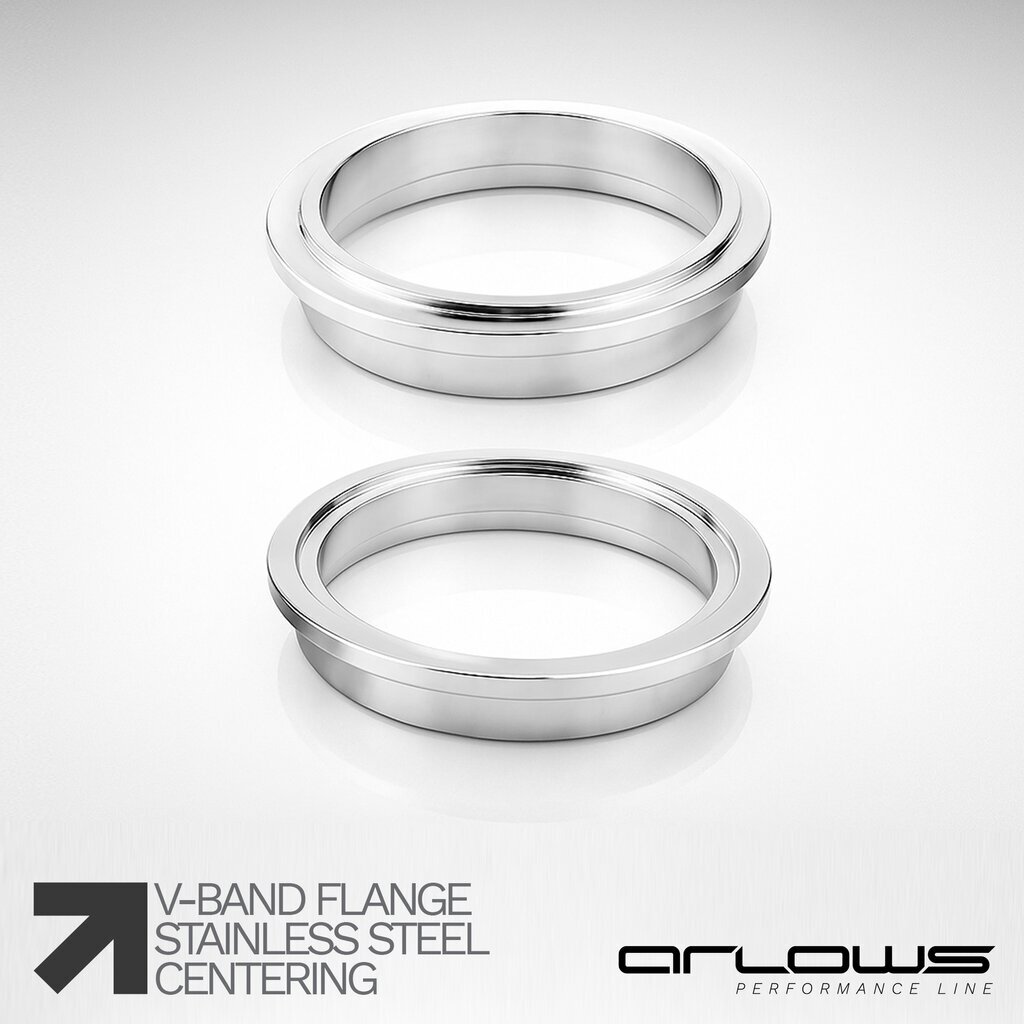

CENTRING

Groove and step put the rings on centre. No step in the gas path.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

  • Exhaust: downpipe, header, mid pipe, rear silencer
  • Turbo: turbine outlet, wastegate, external bypass
  • Shop: remove a part without cutting the weld

Technical data

Part number TT00603
Fits tube 60,3 mm / 2,375 in
Material stainless 1.4301 / 304
Build clamp plus 2 weld rings
Flange male and female, self centring
Latch quick release
Bore after weld 57,3 mm
Chamfer depth 7 mm
Ring thickness 15 mm
Clamp OD approx. 100 mm
Thread M8
Spanner 13 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding or use the centring groove. Tighten the clamp only after it has cooled, thread M8. Do not mix aluminium and stainless in the same weld.

Other size?

Clamp, rings or set

SHOP V-BAND >
Item number: TT00603
Material‍: Edelstahl
Diameter‍: Ø 60mm / 2,375"
×
