Arlows V-Band Ersatzschelle mit Schnellverschluss 2,375" / 60,3mm ( Edelstahl )

24,90 €

including 19% VAT. , plus (Paketversand)

From	Price per unit
2	24,15 €
3	23,66 €
5	22,91 €

Description

V-BAND 60,3 MM AR7812

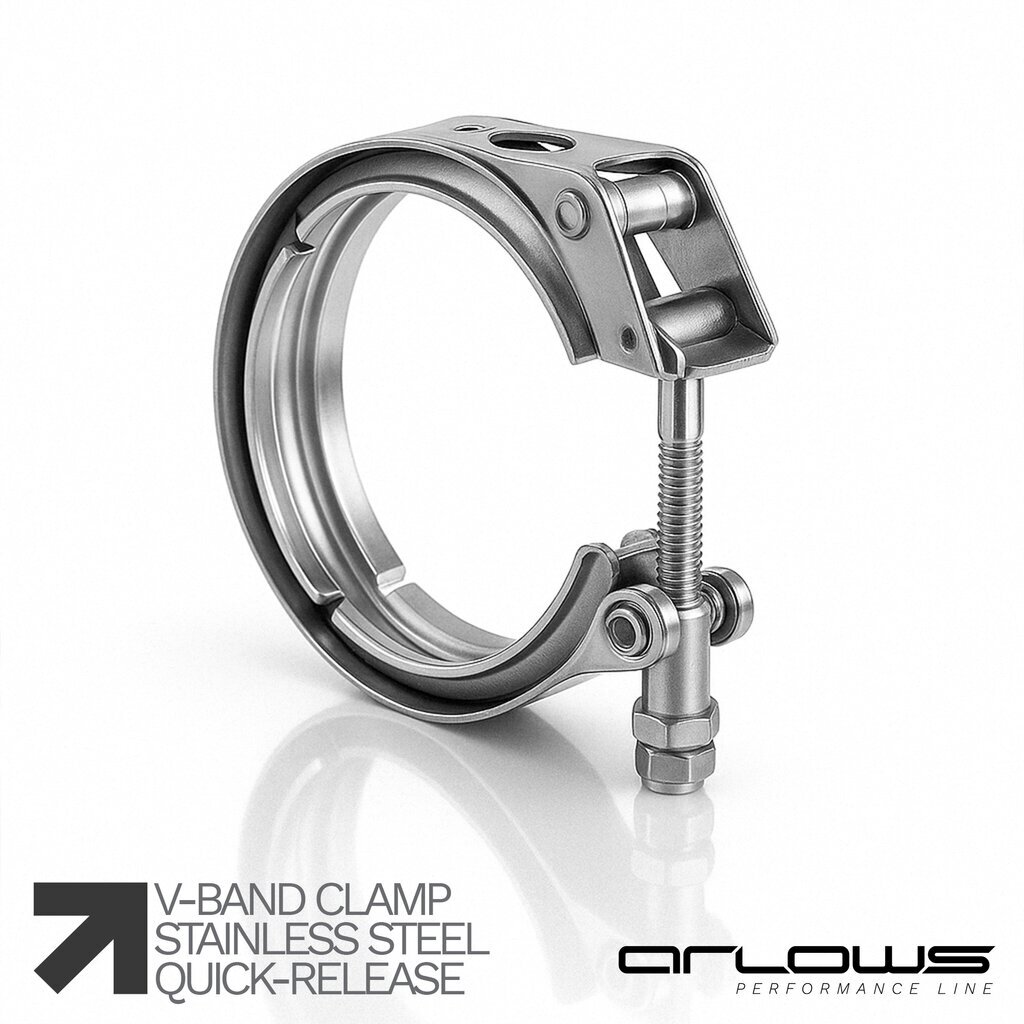

Arlows V-Band clamp 60,3 mm / 2,375 in

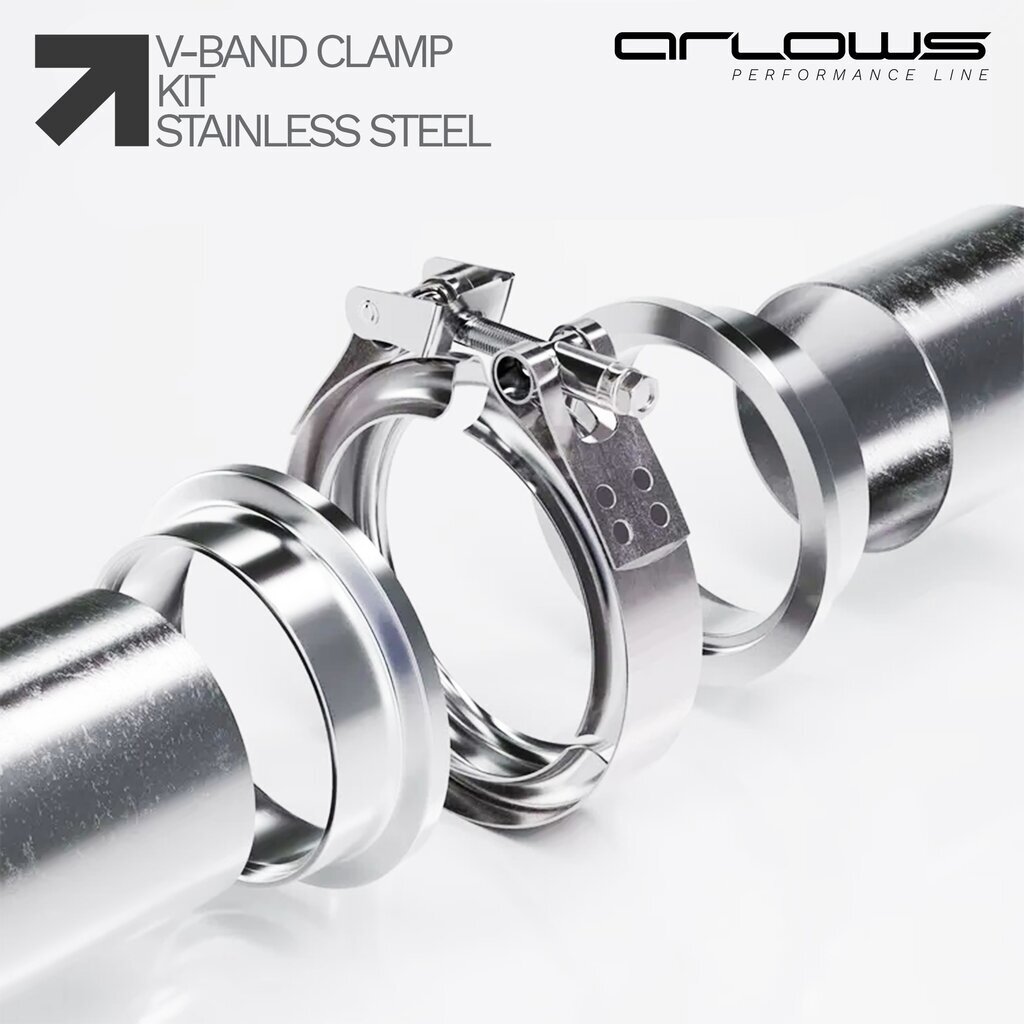

Replacement clamp for V-band flanges 60,3 mm / 2,375 in.
Replacement clamp for V-band flanges 60,3 mm / 2,375 in. Stainless, reusable, for exhaust and turbo. Quick release for tight spots.

OPENS

Clamp off, part off. Turbo, downpipe and test flange without cutting the flex.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

QUICK RELEASE

Open and close where a spanner barely fits.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

Exhaust: downpipe, header, mid pipe, rear silencer
Turbo: turbine outlet, wastegate, external bypass
Shop: remove a part without cutting the weld

Technical data

Part number	AR7812
Fits tube	60,3 mm / 2,375 in
Material	stainless 1.4301 / 304
Build	clamp
Latch	quick release
Clamp OD	approx. 100 mm
Thread	M8
Spanner	13 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding. Tighten the clamp only after it has cooled, thread M8. Do not mix aluminium and stainless in the same weld.

Other size?

Clamp, rings or set

SHOP V-BAND >

Item number:	AR7812
weight‍:	0,1KG
Material‍:	Edelstahl
Diameter‍:	Ø 60mm / 2,375"
