Arlows V-Band Anschweissringe 2,375" / 60,3mm ( selbstzentrierend , Edelstahl )

21,90 €

including 19% VAT. , plus (Paketversand)

From	Price per unit
2	21,24 €
3	20,81 €
5	20,15 €

Arlows V-Band Anschweißringe 2,375" / 60,3mm ( selbstzentrierend , Edelstahl )

Description

V-BAND 60,3 MM AR3815

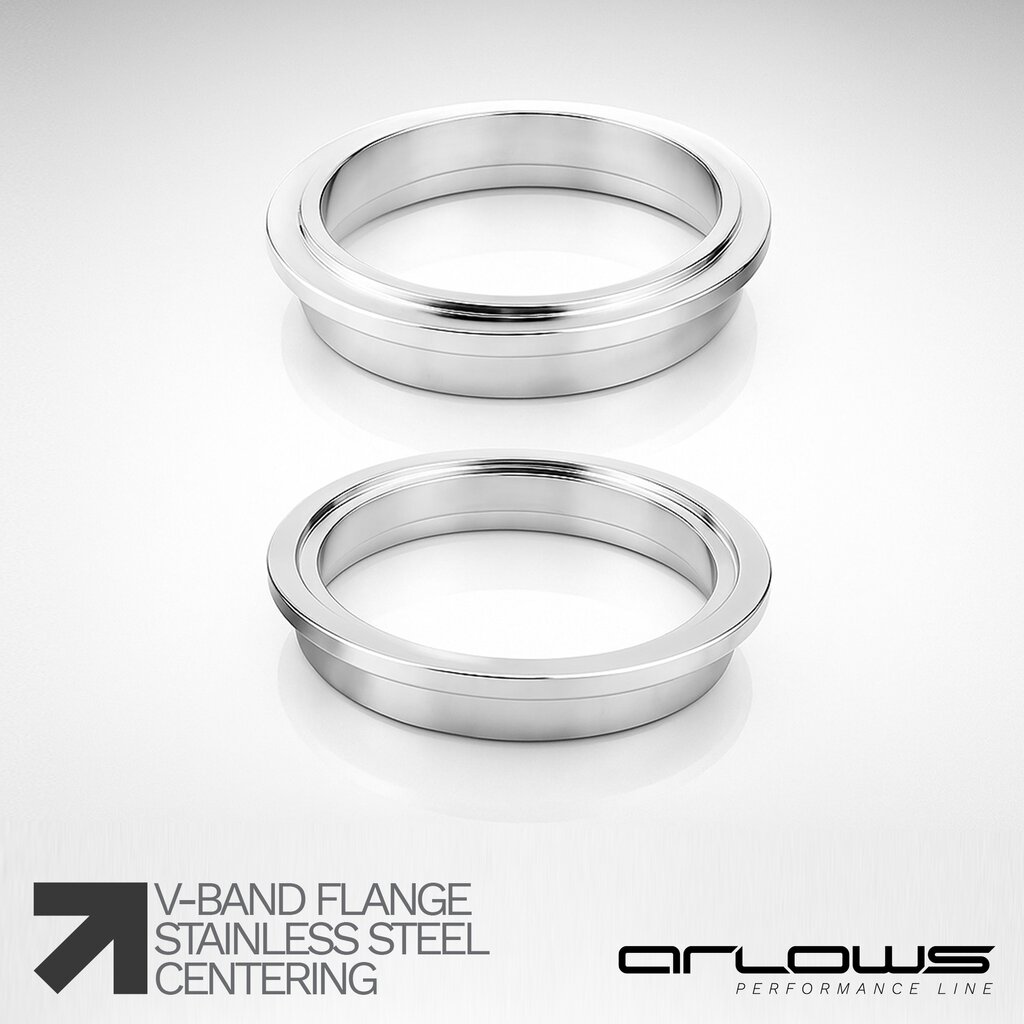

Arlows V-Band weld rings 60,3 mm / 2,375 in

Two weld rings for 60,3 mm / 2,375 in stainless tube.
Two weld rings for 60,3 mm / 2,375 in stainless tube. Chamfered seat, weld inside and outside, then a smooth bore with no step. Male and female ring centre on the groove.

CHAMFER

Slide the tube into the seat, weld inside and outside. The flange does not pull out of true.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

CENTRING

Groove and step put the rings on centre. No step in the gas path.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

Exhaust: downpipe, header, mid pipe, rear silencer
Turbo: turbine outlet, wastegate, external bypass
Shop: remove a part without cutting the weld

Technical data

Part number	AR3815
Fits tube	60,3 mm / 2,375 in
Material	stainless 1.4301 / 304
Build	2 weld rings
Flange	male and female, self centring
Bore after weld	57,3 mm
Chamfer depth	7 mm
Ring thickness	15 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding or use the centring groove. Tighten the clamp only after it has cooled. Do not mix aluminium and stainless in the same weld.

Other size?

Clamp, rings or set

SHOP V-BAND >

Item number:	AR3815
Material‍:	Edelstahl
Diameter‍:	Ø 60mm / 2,375"
