Arlows V-Band Set mit Schnellverschluss 2" / 50,8mm ( selbstzentrierend, Edelstahl )

Arlows V-Band Set mit Schnellverschluss 2" / 50,8mm ( selbstzentrierend, Edelstahl )

41,90 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	40,64 €*
3	39,81 €*
5	38,55 €*

Available now!
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

V-BAND 50,8 MM TT00400

Arlows V-Band set 50,8 mm / 2 in

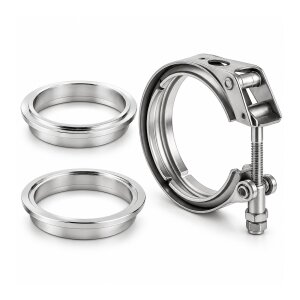

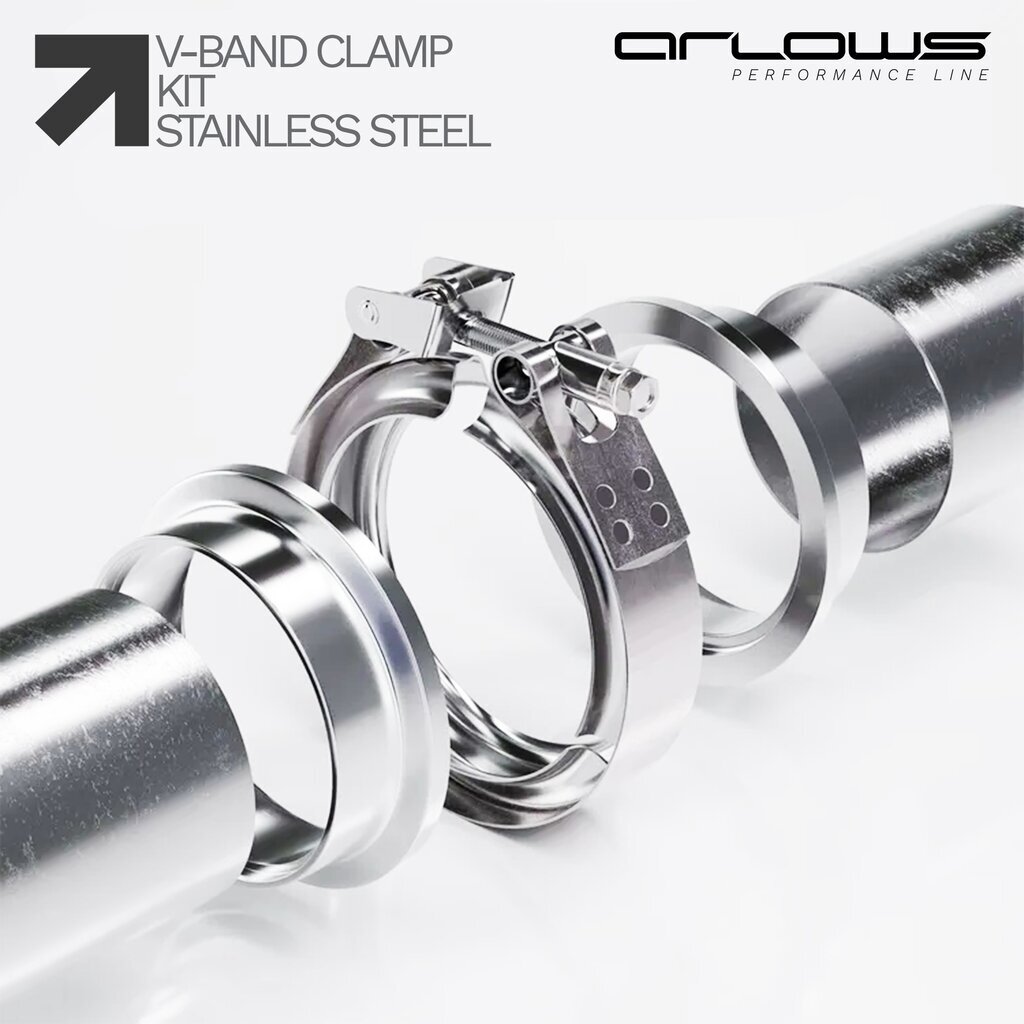

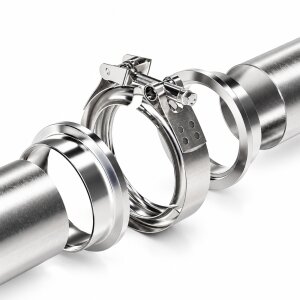

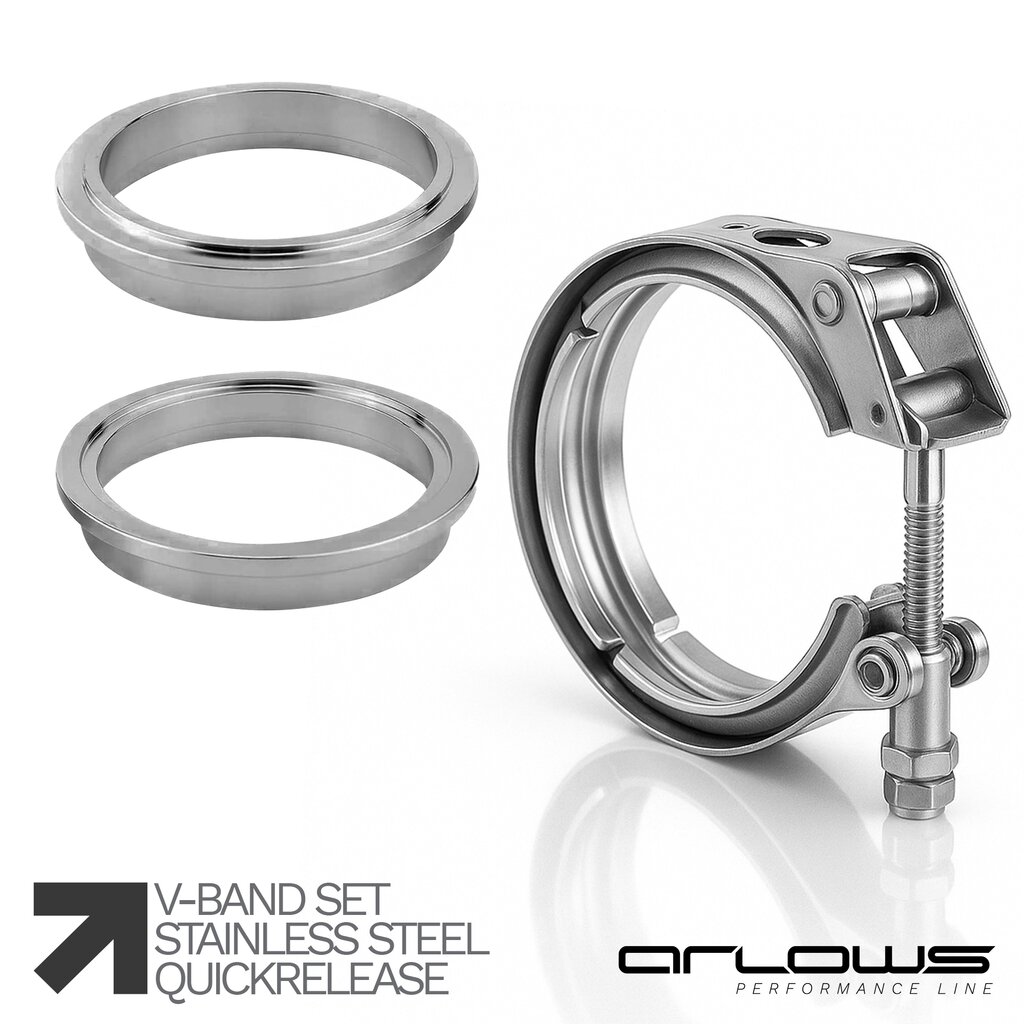

Clamp plus two weld rings for 50,8 mm / 2 in stainless tube.
Clamp plus two weld rings for 50,8 mm / 2 in stainless tube. A joint you can open without cutting the weld. Male and female ring centre on the groove. Quick release for tight spots.

OPENS

Clamp off, part off. Turbo, downpipe and test flange without cutting the flex.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

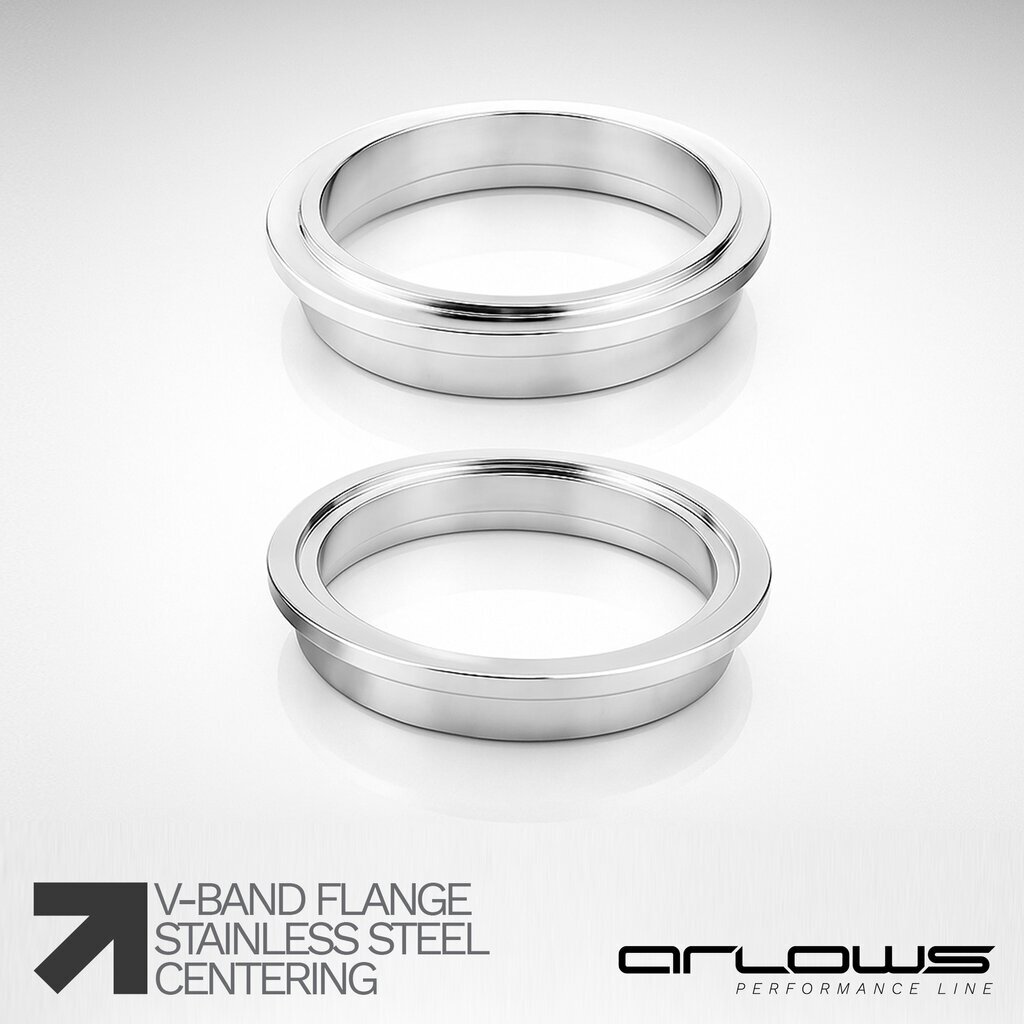

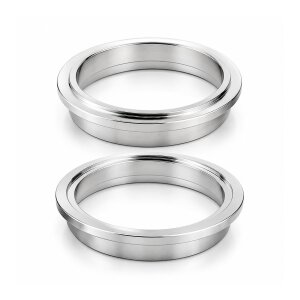

CENTRING

Groove and step put the rings on centre. No step in the gas path.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

Exhaust: downpipe, header, mid pipe, rear silencer
Turbo: turbine outlet, wastegate, external bypass
Shop: remove a part without cutting the weld

Technical data

Part number	TT00400
Fits tube	50,8 mm / 2 in
Material	stainless 1.4301 / 304
Build	clamp plus 2 weld rings
Flange	male and female, self centring

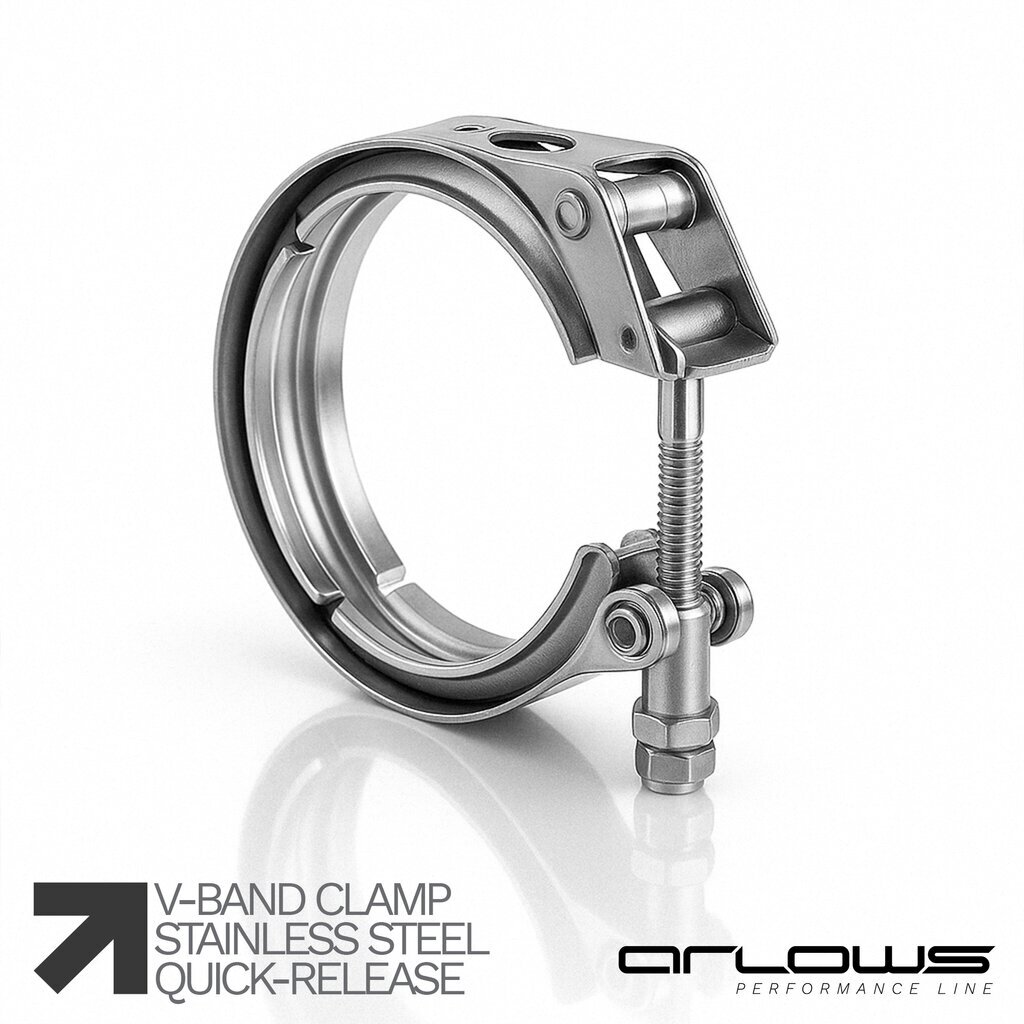

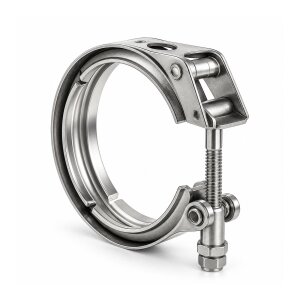

Latch	quick release
Chamfer depth	7 mm
Clamp OD	approx. 90 mm
Thread	M6
Spanner	10 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding or use the centring groove. Tighten the clamp only after it has cooled, thread M6. Do not mix aluminium and stainless in the same weld.
