Arlows V-Band Ersatzschelle mit Schnellverschluss 2" / 50,8mm ( Edelstahl )

23,90 €

including 19% VAT. , plus (Paketversand)

From	Price per unit
2	23,18 €
3	22,70 €
5	21,99 €

Description

V-BAND 50,8 MM AR2143

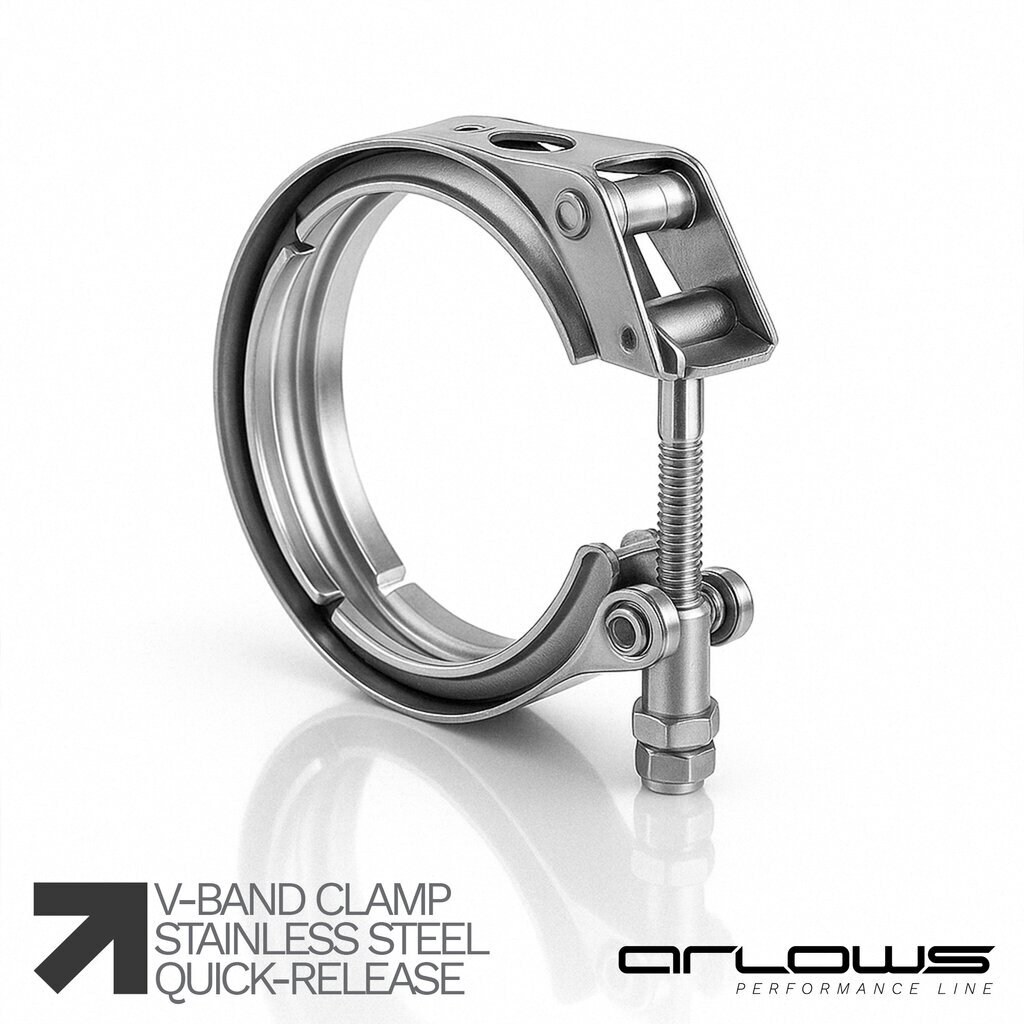

Arlows V-Band clamp 50,8 mm / 2 in

Replacement clamp for V-band flanges 50,8 mm / 2 in.
Replacement clamp for V-band flanges 50,8 mm / 2 in. Stainless, reusable, for exhaust and turbo. Quick release for tight spots.

OPENS

Clamp off, part off. Turbo, downpipe and test flange without cutting the flex.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

QUICK RELEASE

Open and close where a spanner barely fits.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

Exhaust: downpipe, header, mid pipe, rear silencer
Turbo: turbine outlet, wastegate, external bypass
Shop: remove a part without cutting the weld

Technical data

Part number	AR2143
Fits tube	50,8 mm / 2 in
Material	stainless 1.4301 / 304
Build	clamp
Latch	quick release
Clamp OD	approx. 90 mm
Thread	M6
Spanner	10 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding. Tighten the clamp only after it has cooled, thread M6. Do not mix aluminium and stainless in the same weld.

Other size?

Clamp, rings or set

SHOP V-BAND >

Item number:	AR2143
weight‍:	0,1KG
Material‍:	Edelstahl
