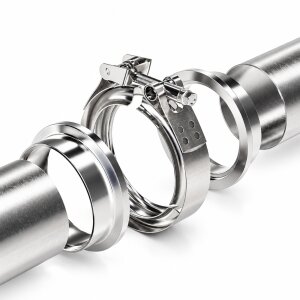

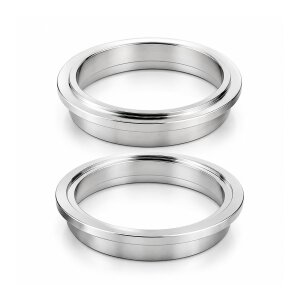

Arlows V-Band Anschweissringe 2" / 50,8mm ( selbstzentrierend , Edelstahl )

25,90 €

including 19% VAT. , plus (Paketversand)

From	Price per unit
2	25,12 €
3	24,61 €
5	23,83 €

Description

V-BAND 50,8 MM AR8623

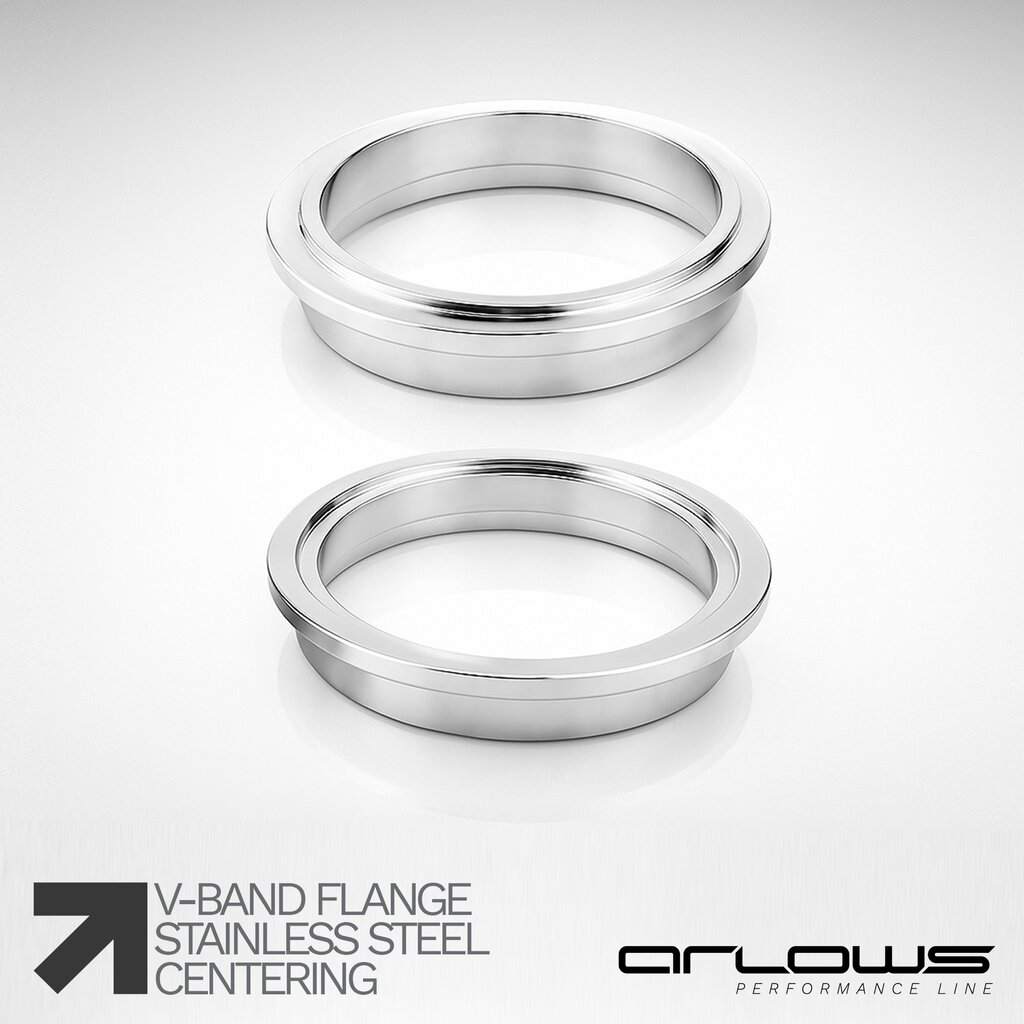

Arlows V-Band weld rings 50,8 mm / 2 in

Two weld rings for 50,8 mm / 2 in stainless tube.
Two weld rings for 50,8 mm / 2 in stainless tube. Chamfered seat, weld inside and outside, then a smooth bore with no step.

CHAMFER

Slide the tube into the seat, weld inside and outside. The flange does not pull out of true.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

SMOOTH BORE

After welding the inside diameter is the tube's.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

Exhaust: downpipe, header, mid pipe, rear silencer
Turbo: turbine outlet, wastegate, external bypass
Shop: remove a part without cutting the weld

Technical data

Part number	AR8623
Fits tube	50,8 mm / 2 in
Material	stainless 1.4301 / 304
Build	2 weld rings
Ring thickness	15 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding. Tighten the clamp only after it has cooled. Do not mix aluminium and stainless in the same weld.

Other size?

Clamp, rings or set

SHOP V-BAND >

Item number:	AR8623
Material‍:	Edelstahl
