Arlows V-Band Set mit Schnellverschluss 1,5 / 38,1mm ( selbstzentrierend, Edelstahl )

Arlows V-Band Set mit Schnellverschluss 1,5" / 38,1mm ( selbstzentrierend, Edelstahl )

33,90 €

including 19% VAT. , plus (Paketversand)

From	Price per unit
2	32,88 €
3	32,20 €
5	31,19 €

Description

V-BAND 70 MM TT00617

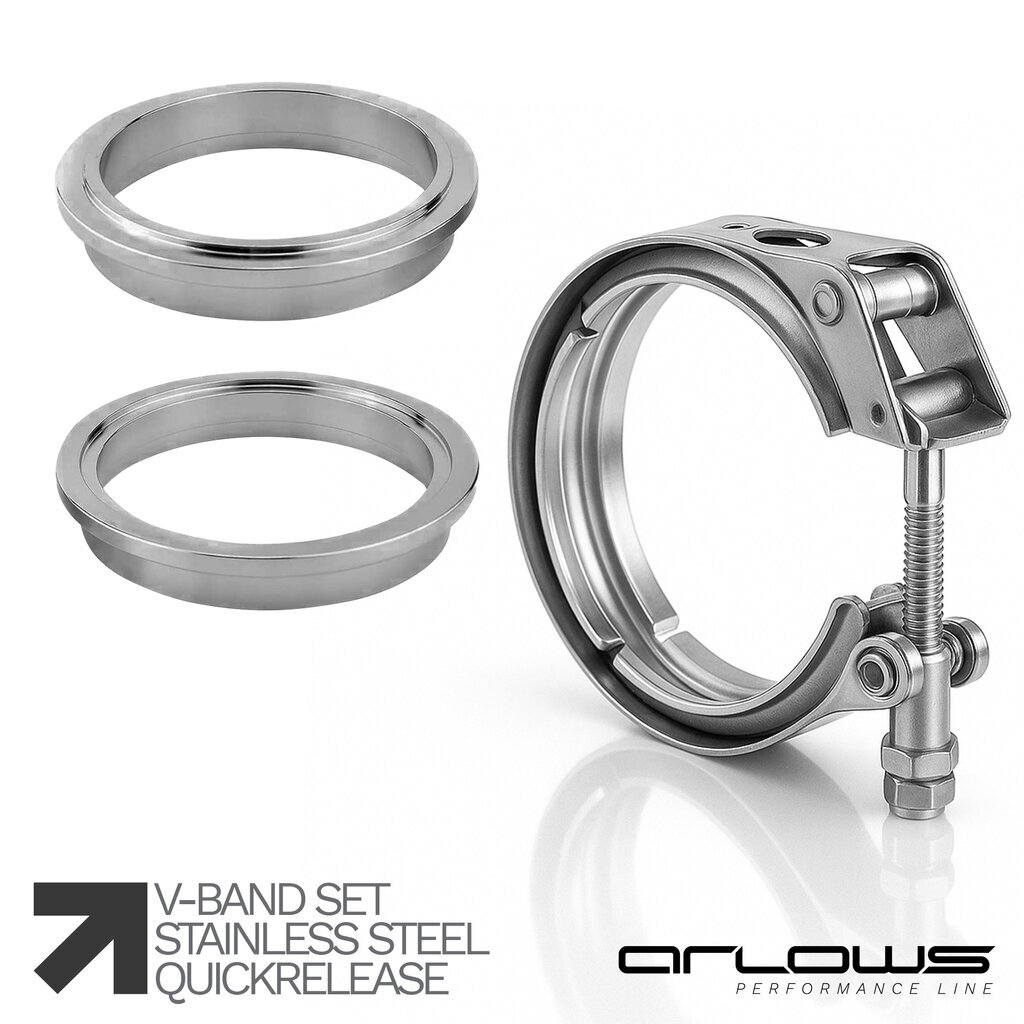

Arlows V-Band set 70 mm / 2,75 in

Clamp plus two weld rings for 70 mm / 2,75 in stainless tube.

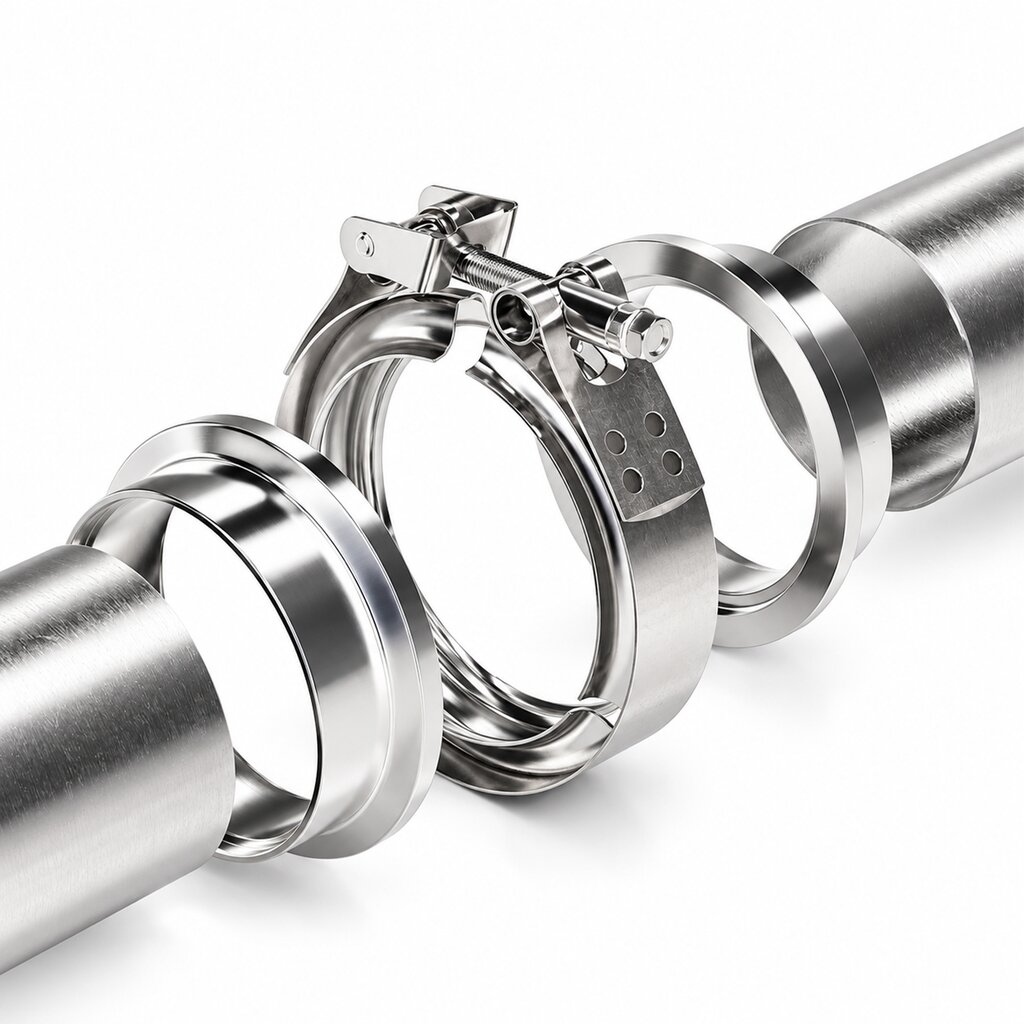

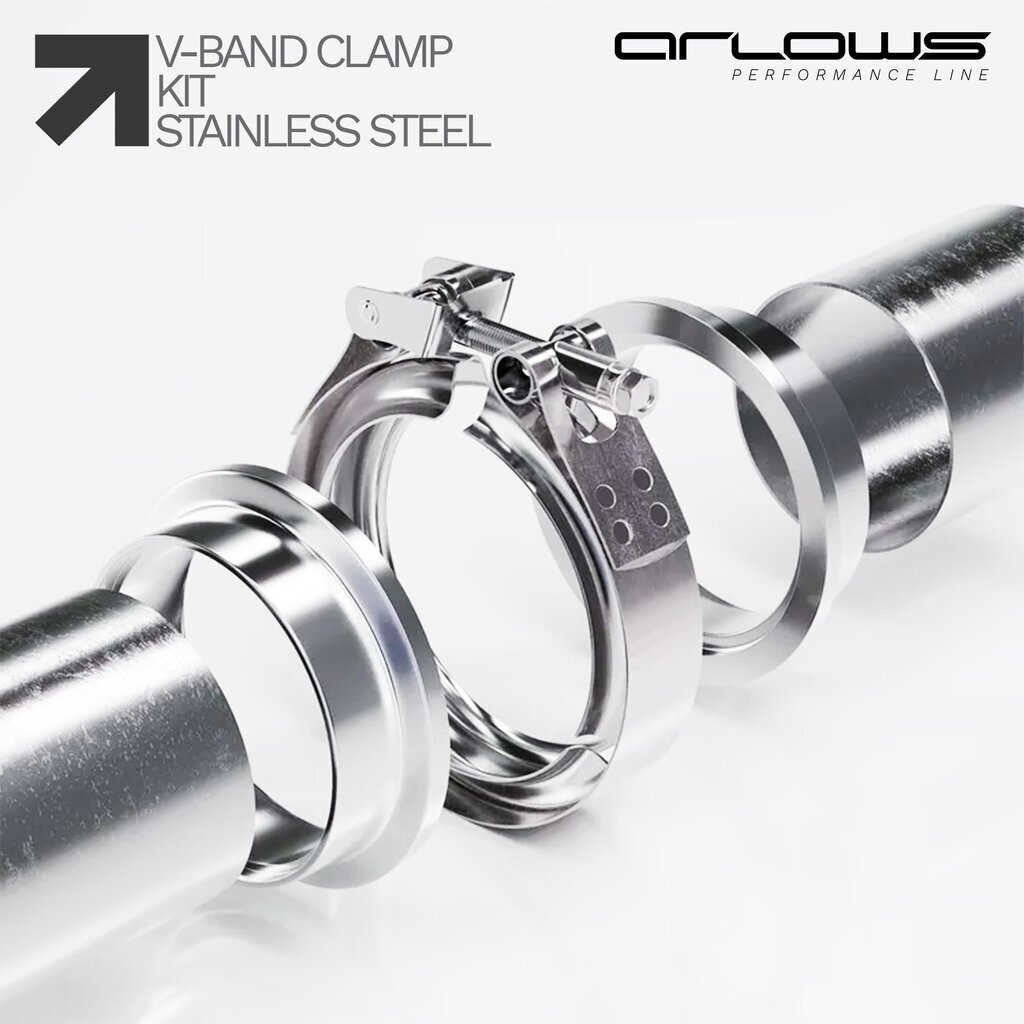

Clamp plus two weld rings for 70 mm / 2,75 in stainless tube. A joint you can open without cutting the weld. Male and female ring centre on the groove. Quick release for tight spots.

OPENS

Clamp off, part off. Turbo, downpipe and test flange without cutting the flex.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

CENTRING

Groove and step put the rings on centre. No step in the gas path.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

Exhaust: downpipe, header, mid pipe, rear silencer
Turbo: turbine outlet, wastegate, external bypass
Shop: remove a part without cutting the weld

Technical data

Part number	TT00617
Fits tube	70 mm / 2,75 in
Material	stainless 1.4301 / 304
Build	clamp plus 2 weld rings
Flange	male and female, self centring
Latch	quick release
Clamp OD	approx. 70 mm
Thread	M6
Spanner	10 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding or use the centring groove. Tighten the clamp only after it has cooled, thread M6. Do not mix aluminium and stainless in the same weld.

Other size?

Clamp, rings or set

SHOP V-BAND >

Item number:	TT00617
Material‍:	Edelstahl
Diameter‍:	Ø 40mm

Importeur / EU-Verantwortlicher

This product consists of

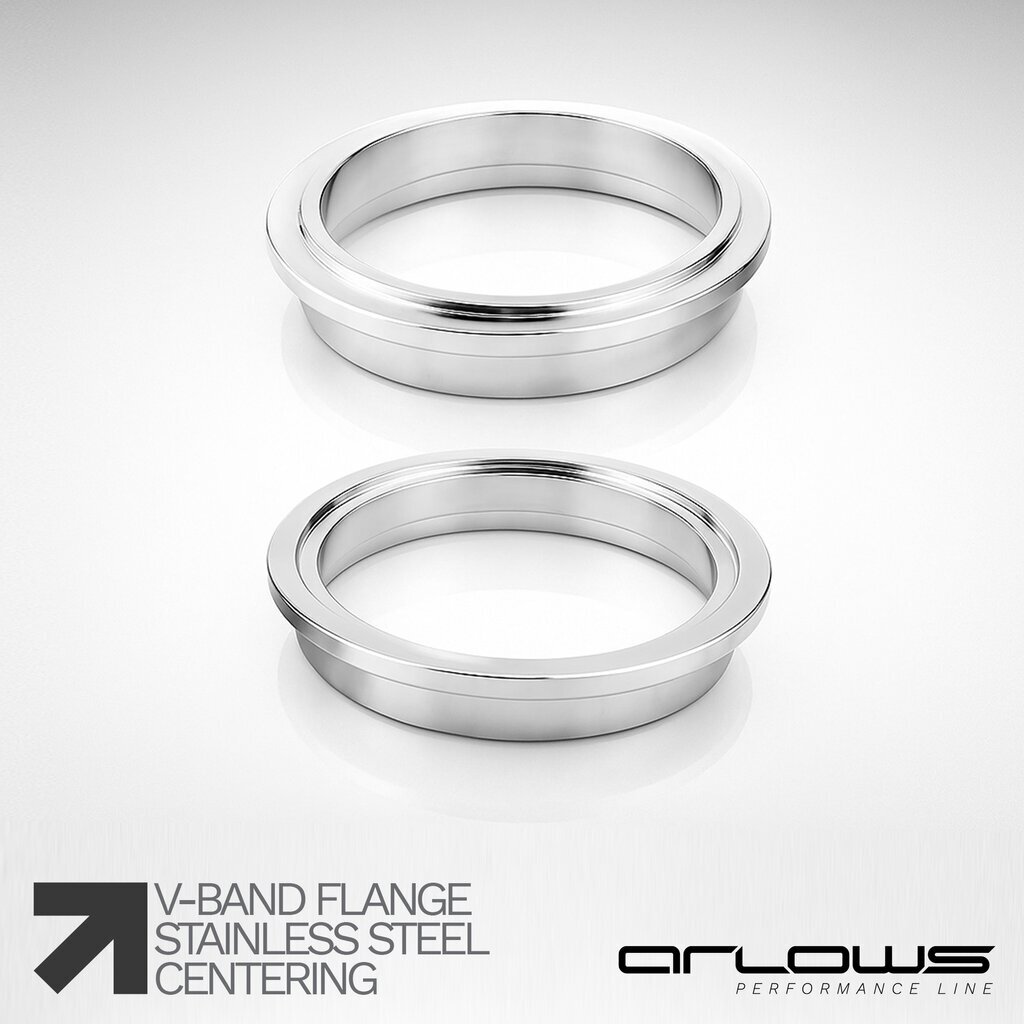

1 x Arlows V-Band Anschweissringe 1,5" / 38,1mm ( selbstzentrierend , Edelstahl )

21,90 € *

sofort verfügbar

Lieferzeit: 1 - 2 Werktage

1 x Arlows V-Band Ersatzschelle mit Schnellverschluss 1,5" / 38,1mm ( Edelstahl )

22,90 € *

sofort verfügbar

Lieferzeit: 1 - 2 Werktage
