Arlows V-Band Set mit Schnellverschluß 4 / 102mm ( selbstzentrierend, Edelstahl )

Arlows V-Band Set mit Schnellverschluß 4" / 102mm ( selbstzentrierend, Edelstahl )

56,90 €

including 19% VAT. , plus (Paketversand)

From	Price per unit
2	55,19 €
3	54,06 €
5	52,35 €

Description

V-BAND 102 MM TT00407

Arlows V-Band set 102 mm / 4 in

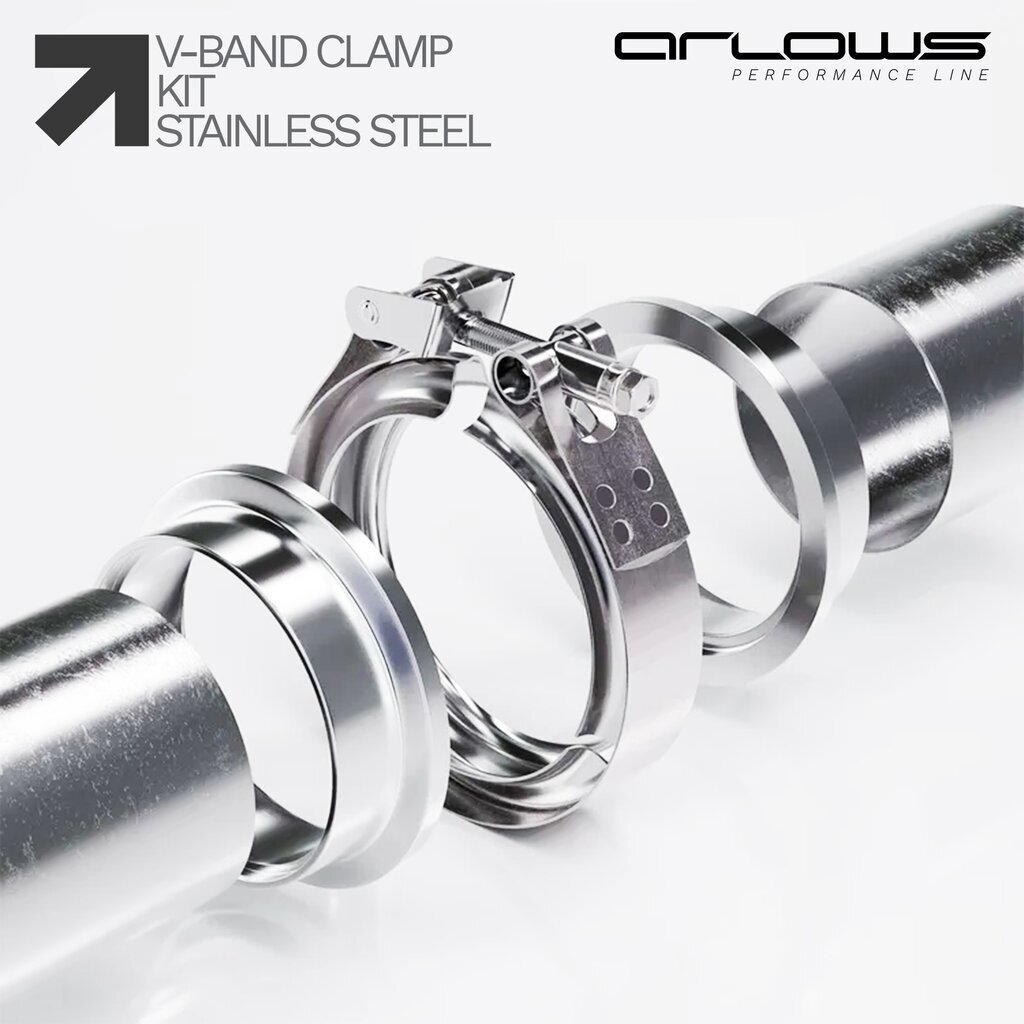

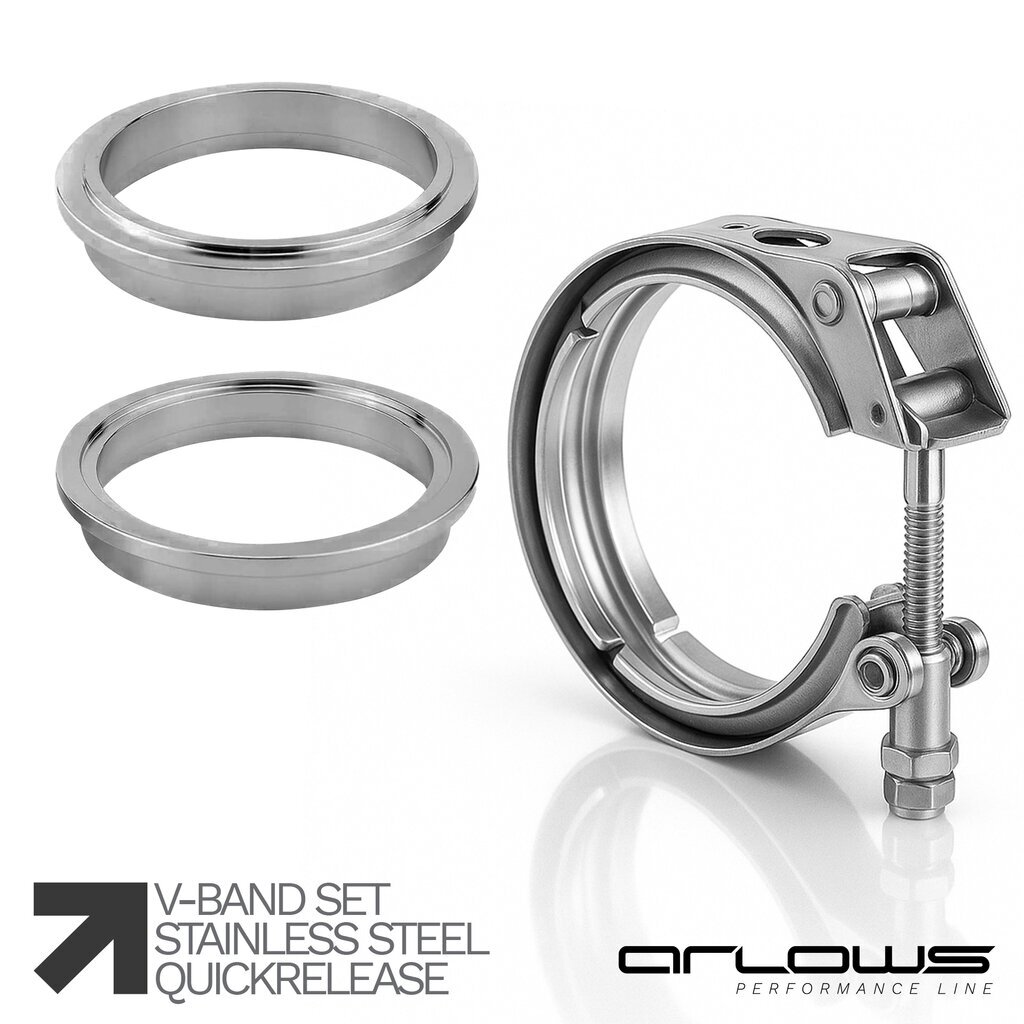

Clamp plus two weld rings for 102 mm / 4 in stainless tube.
Clamp plus two weld rings for 102 mm / 4 in stainless tube. A joint you can open without cutting the weld. Male and female ring centre on the groove. Quick release for tight spots.

OPENS

Clamp off, part off. Turbo, downpipe and test flange without cutting the flex.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

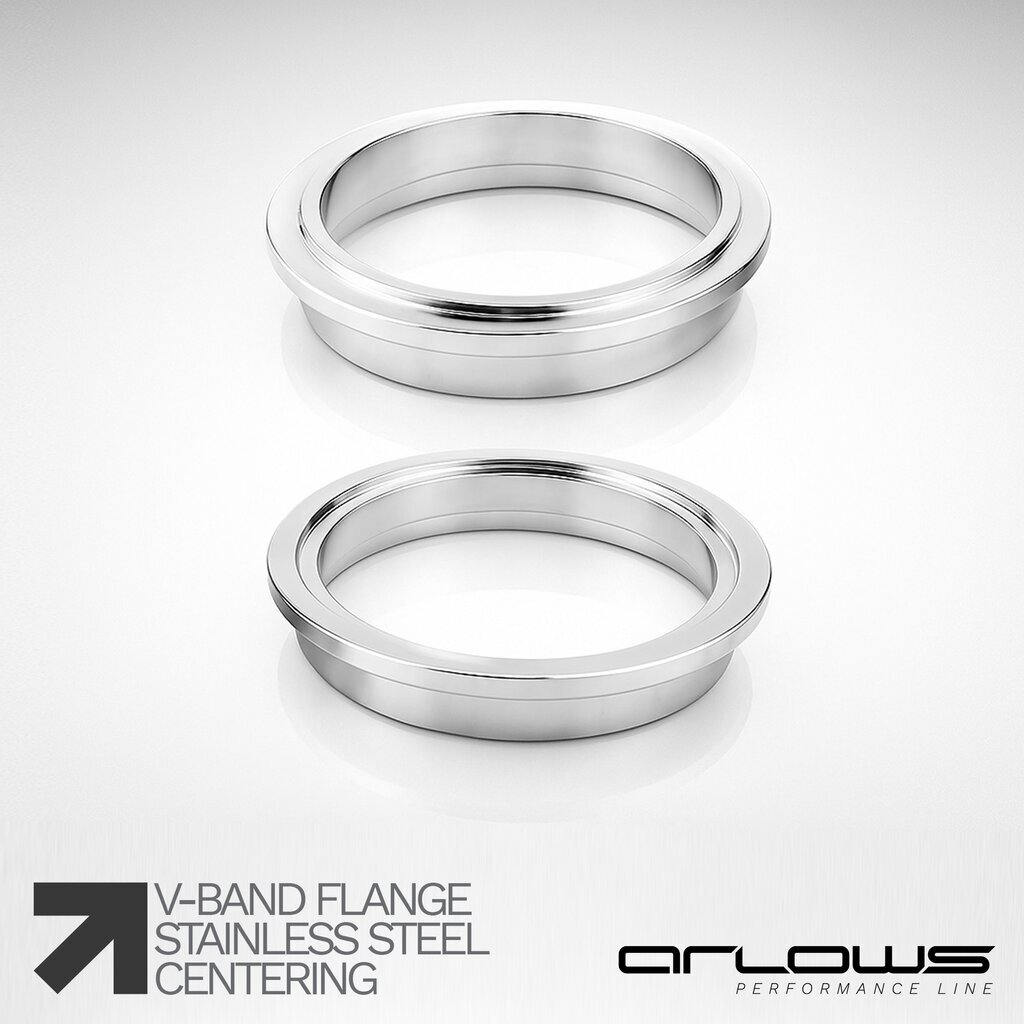

CENTRING

Groove and step put the rings on centre. No step in the gas path.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

Exhaust: downpipe, header, mid pipe, rear silencer
Turbo: turbine outlet, wastegate, external bypass
Shop: remove a part without cutting the weld

Technical data

Part number	TT00407
Fits tube	102 mm / 4 in
Material	stainless 1.4301 / 304
Build	clamp plus 2 weld rings
Flange	male and female, self centring

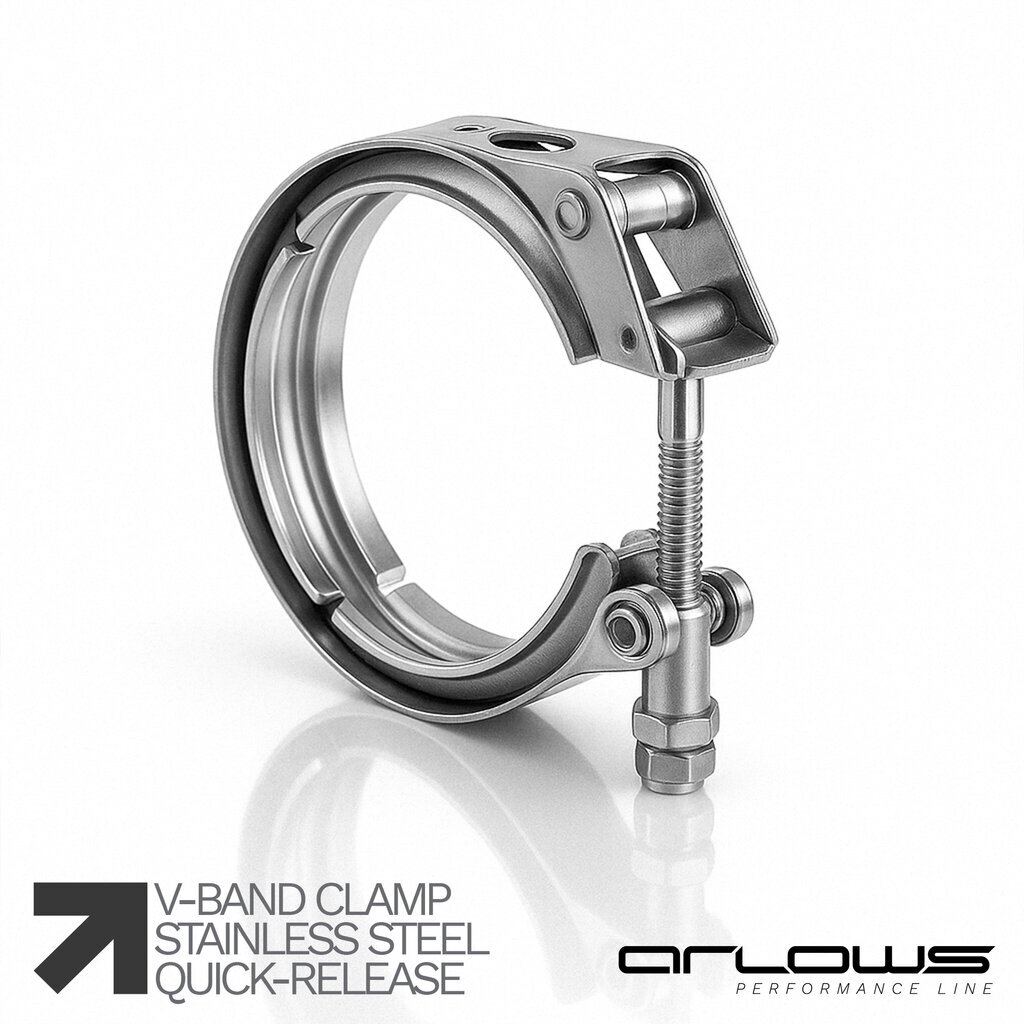

Latch	quick release
Chamfer depth	7 mm
Ring thickness	15 mm
Clamp OD	approx. 130 mm
Thread	M8
Spanner	13 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding or use the centring groove. Tighten the clamp only after it has cooled, thread M8. Do not mix aluminium and stainless in the same weld.

Other size?

Clamp, rings or set

SHOP V-BAND >

Item number:	TT00407
Material‍:	Edelstahl
Diameter‍:	Ø 102mm / 4"

Importeur / EU-Verantwortlicher

This product consists of

1 x Arlows V-Band Ersatzschelle mit Schnellverschluß 4" / 102mm ( Edelstahl )

26,90 € *

sofort verfügbar

Lieferzeit: 1 - 2 Werktage

1 x Arlows V-Band Anschweissringe 4" / 102mm ( selbstzentrierend , Edelstahl )

44,90 € *

sofort verfügbar

Lieferzeit: 1 - 2 Werktage
