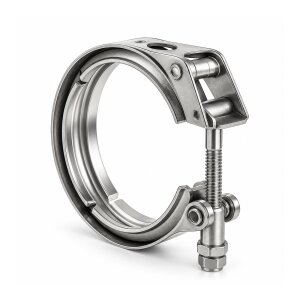

Arlows V-Band Ersatzschelle mit Schnellverschluss 1,5" / 38,1mm ( Edelstahl )

22,90 €

including 19% VAT. , plus (Paketversand)

From	Price per unit
2	22,21 €
3	21,75 €
5	21,07 €

Description

V-BAND 70 MM AR3868

Arlows V-Band clamp 70 mm / 2,75 in

Replacement clamp for V-band flanges 70 mm / 2,75 in.
Replacement clamp for V-band flanges 70 mm / 2,75 in. Stainless, reusable, for exhaust and turbo. Quick release for tight spots.

OPENS

Clamp off, part off. Turbo, downpipe and test flange without cutting the flex.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

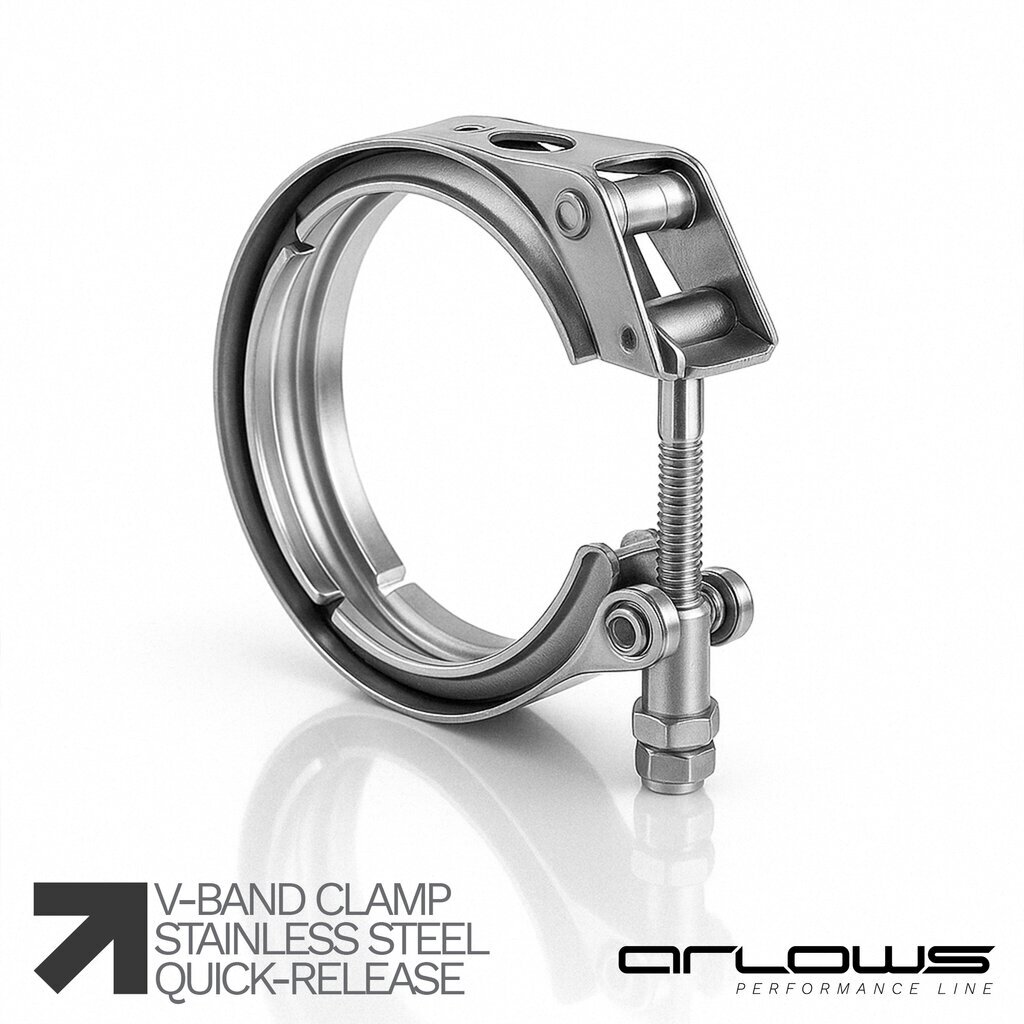

QUICK RELEASE

Open and close where a spanner barely fits.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

Exhaust: downpipe, header, mid pipe, rear silencer
Turbo: turbine outlet, wastegate, external bypass
Shop: remove a part without cutting the weld

Technical data

Part number	AR3868
Fits tube	70 mm / 2,75 in
Material	stainless 1.4301 / 304
Build	clamp
Latch	quick release
Clamp OD	approx. 70 mm
Thread	M6
Spanner	10 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding. Tighten the clamp only after it has cooled, thread M6. Do not mix aluminium and stainless in the same weld.

Other size?

Clamp, rings or set

SHOP V-BAND >

Item number:	AR3868
weight‍:	0,1KG
Material‍:	Edelstahl
Diameter‍:	Ø 40mm

Importeur / EU-Verantwortlicher
