ARLOWS · ADAPTER

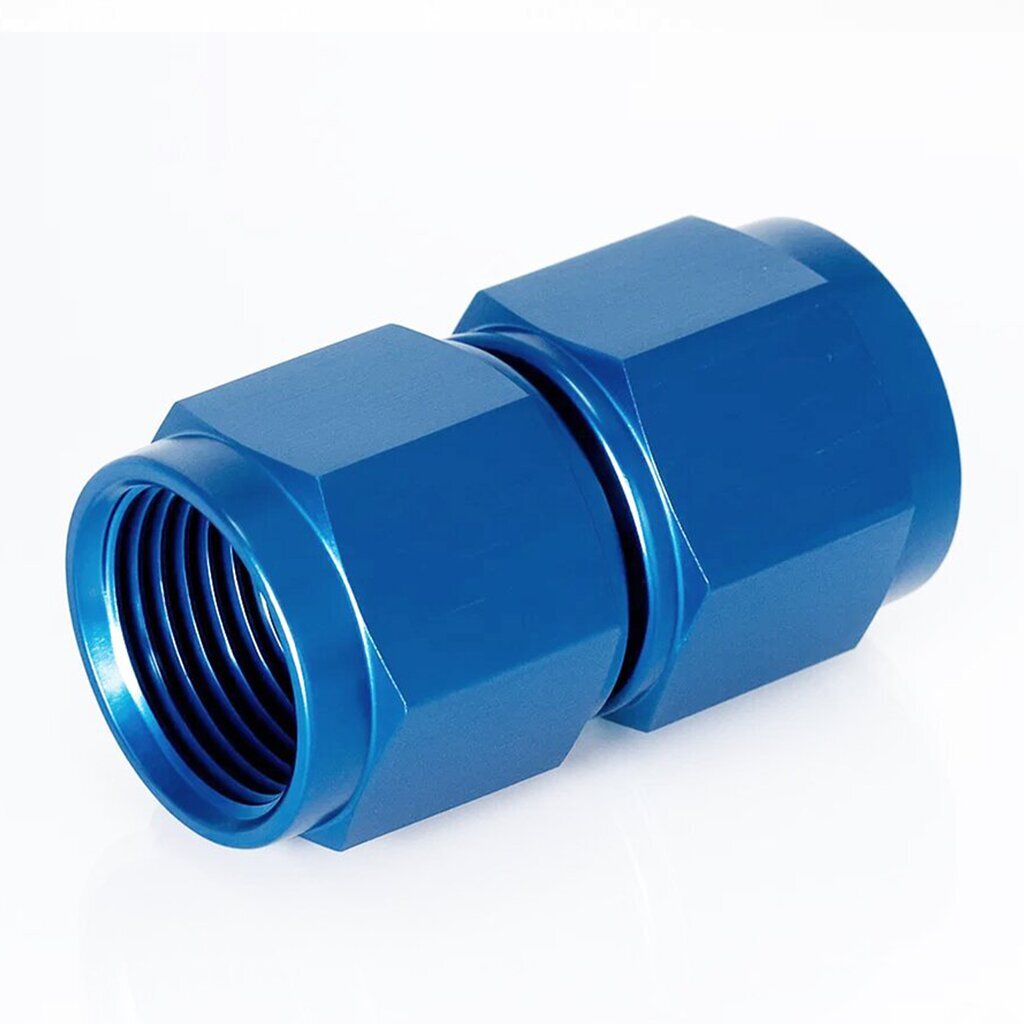

Arlows Adapter ( female )
Connect compatible AN fittings.
This anodised aluminium adapter provides a transition between compatible AN mating parts. Choose the connection configuration and shape to suit the existing fittings and intended line route.
Select the required size and configuration from the available variants.
Key benefits
MATCHING CONNECTIONS
The connection configuration identifies the male or female mating fittings required.
PLAN THE LINE ROUTE
The shape and connection direction help you route the line without unnecessary strain.
ALUMINIUM
The aluminium component supports a weight-conscious plumbing layout.
Technical specifications
| Manufacturer | Arlows |
|---|---|
| SKU | AR8386 |
| Selection | Size and configuration depend on selected variant |
| Component | Adapter |
| Material | Aluminium |
| Finish | Anodised |
| Connections | 2× female |
Please note: The connection configuration follows the product title ?female?. The older description conflicts with this information; confirm both ends before ordering.
Applications
For custom oil or fuel lines where every component is suitable for the fluid, pressure and temperature. Select by connection geometry and available clearance.
Installation & notes
Check both connections and sealing faces before installation. Start threads by hand, hold the mating part while tightening and route the lines without tension or twisting. AN flare connections seal at the matching sealing face rather than with thread tape. Follow the tightening instructions for the components used and leak-test the completed assembly before operation.
Permitted operating conditions depend on the ratings of every component in the assembly.
Common question
Does AN size alone confirm compatibility?
No. Thread configuration, sealing face and installation clearance must also match the mating component.
Complete your plumbing assembly
Select mating fittings, lines and supports to match the connection and application.
