PUSH ON 90° AR8379
Arlows Push On Aluminium AN Dash Fitting 90°
Push on. Right angle out. For rubber hose.

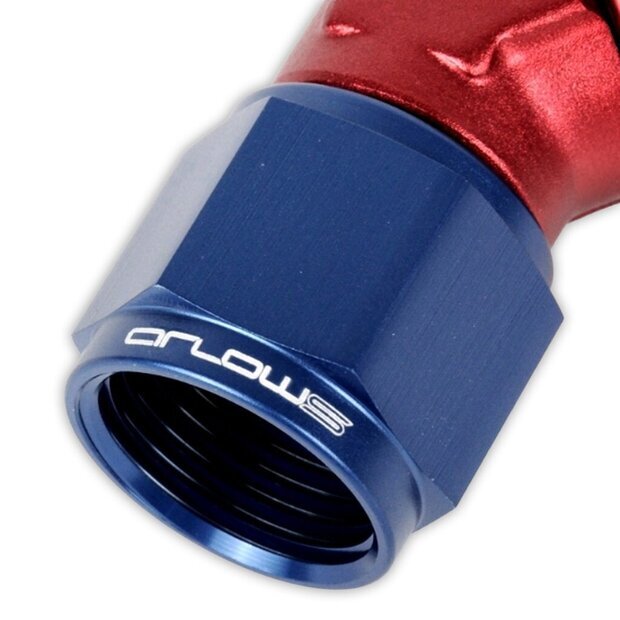

Anodized aluminium fitting with a push on barb and a 90° body. For Dash rubber hose, not for steel flex and not for PTFE. Pick Dash size above. AN thread on the port side, hose slides on the barb without a clamp. The rubber does not have to make the 90° itself.
PUSH ON
Slide the hose onto the barb. No crimp, no olive, no clamp.
90° ANGLE
Full turn at the fitting. Less kink and less stress in the rubber.
ANODIZED ALU
Light, corrosion resistant, race look. Pick colour above.
AN DASH
AN thread to the block, filter or adapter. Size must match the rubber hose.
Use cases
- Fuel and oil: feed, return, breather, catch can on rubber hose
- Air: vacuum, breather, blow off recirculation
- Tight bay: at the block, frame and cooler, where the line must leave at a right angle
- Not for: PTFE Teflon AR9106 / AR9107 and classic steel flex AR8394
Technical data
| Dash | Thread | ID | OD |
|---|---|---|---|
| Dash 4 | 7/16-20 UNF | 5.56 mm | 11.13 mm |
| Dash 6 | 9/16-18 UNF | 8.73 mm | 13.89 mm |
| Dash 8 | 3/4-16 UNF | 11.12 mm | 16.28 mm |
| Dash 10 | 7/8-14 UNF | 14.27 mm | 20.24 mm |
| Dash 12 | 1 1/16-12 UNF | 17.47 mm | 23.82 mm |
| Dash 16 | 1 5/16-12 UNF | 22.20 mm | 30.50 mm |
| Dash 20 | 1 5/8-12 UNF | 28.50 mm | 35.81 mm |
- Part number: AR8379
- Material: aluminium, anodized
- Angle: 90°
- Hose: Dash rubber / push on hose
- Not for: steel flex AR8394, PTFE AR9106 / AR9107
- Sister parts: straight AR8377, 45° AR8378
Fitment
Cut the hose square, wet the barb lightly, push the hose on to the stop. Dash size must match hose and counterpart. Push On holds on the barb, no hose clamp. For high pressure, hot oil or E85 switch to steel flex or PTFE. Straight AR8377 and 45° AR8378 are separate items.
