PUSH ON STRAIGHT AR8377

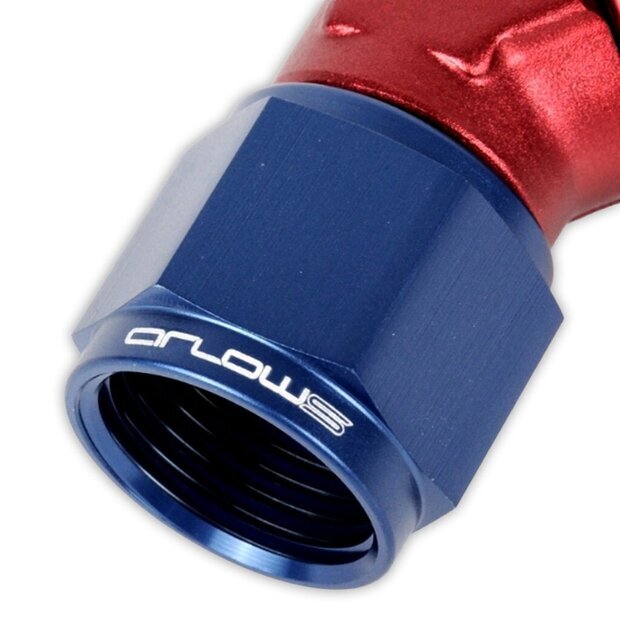

Arlows Push On Aluminium AN Dash Fitting Straight
Push on. Done. For rubber hose.
Anodized aluminium fitting with a push on barb, straight body. For Dash rubber hose, not for steel flex and not for PTFE. Pick Dash size above. AN thread on the port side, hose slides on the barb without a clamp. For fuel, oil, air and vacuum at low to medium pressure.
PUSH ON
Slide the hose onto the barb. No crimp, no olive, no clamp.
STRAIGHT
Direct exit. Less height than an angled body when the line runs straight on.
ANODIZED ALU
Light, corrosion resistant, race look. Pick colour above.
AN DASH
AN thread to the block, filter or adapter. Size must match the rubber hose.
Use cases
- Fuel and oil: feed, return, breather, catch can on rubber hose
- Air: vacuum, breather, blow off recirculation
- Quick builds: test days and the shop, where the line comes on and off often
- Not for: PTFE Teflon AR9106 / AR9107 and classic steel flex AR8394
Technical data
| Dash | Thread | ID | OD |
|---|---|---|---|
| Dash 4 | 7/16-20 UNF | 5.56 mm | 11.13 mm |
| Dash 6 | 9/16-18 UNF | 8.73 mm | 13.89 mm |
| Dash 8 | 3/4-16 UNF | 11.12 mm | 16.28 mm |
| Dash 10 | 7/8-14 UNF | 14.27 mm | 20.24 mm |
| Dash 12 | 1 1/16-12 UNF | 17.47 mm | 23.82 mm |
| Dash 16 | 1 5/16-12 UNF | 22.20 mm | 30.50 mm |
| Dash 20 | 1 5/8-12 UNF | 28.50 mm | 35.81 mm |
- Part number: AR8377
- Material: aluminium, anodized
- Angle: straight
- Hose: Dash rubber / push on hose
- Not for: steel flex AR8394, PTFE AR9106 / AR9107
Fitment
Cut the hose square, wet the barb lightly, push the hose on to the stop. Dash size must match hose and counterpart. Push On holds on the barb, no hose clamp. For high pressure, hot oil or E85 switch to steel flex or PTFE. Angled versions are separate items.
