Arlows V-Band Ersatzschelle mit Schnellverschluß 4" / 102mm ( Edelstahl )

26,90 €

including 19% VAT. , plus (Paketversand)

From	Price per unit
2	26,09 €
3	25,56 €
5	24,75 €

Description

V-BAND 102 MM AR2148

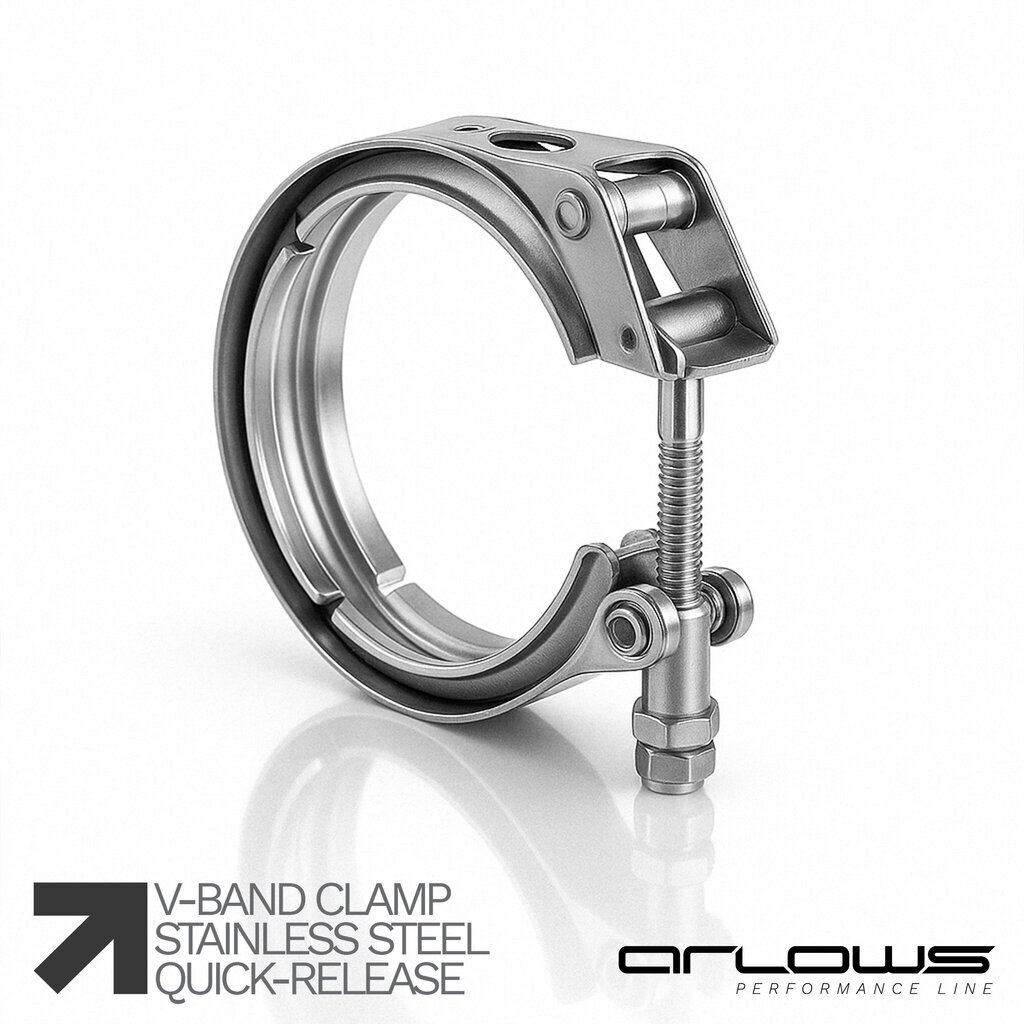

Arlows V-Band clamp 102 mm / 4 in

Replacement clamp for V-band flanges 102 mm / 4 in.
Replacement clamp for V-band flanges 102 mm / 4 in. Stainless, reusable, for exhaust and turbo. Quick release for tight spots.

OPENS

Clamp off, part off. Turbo, downpipe and test flange without cutting the flex.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

QUICK RELEASE

Open and close where a spanner barely fits.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

Exhaust: downpipe, header, mid pipe, rear silencer
Turbo: turbine outlet, wastegate, external bypass
Shop: remove a part without cutting the weld

Technical data

Part number	AR2148
Fits tube	102 mm / 4 in
Material	stainless 1.4301 / 304
Build	clamp
Latch	quick release
Clamp OD	approx. 130 mm
Thread	M8
Spanner	13 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding. Tighten the clamp only after it has cooled, thread M8. Do not mix aluminium and stainless in the same weld.

Other size?

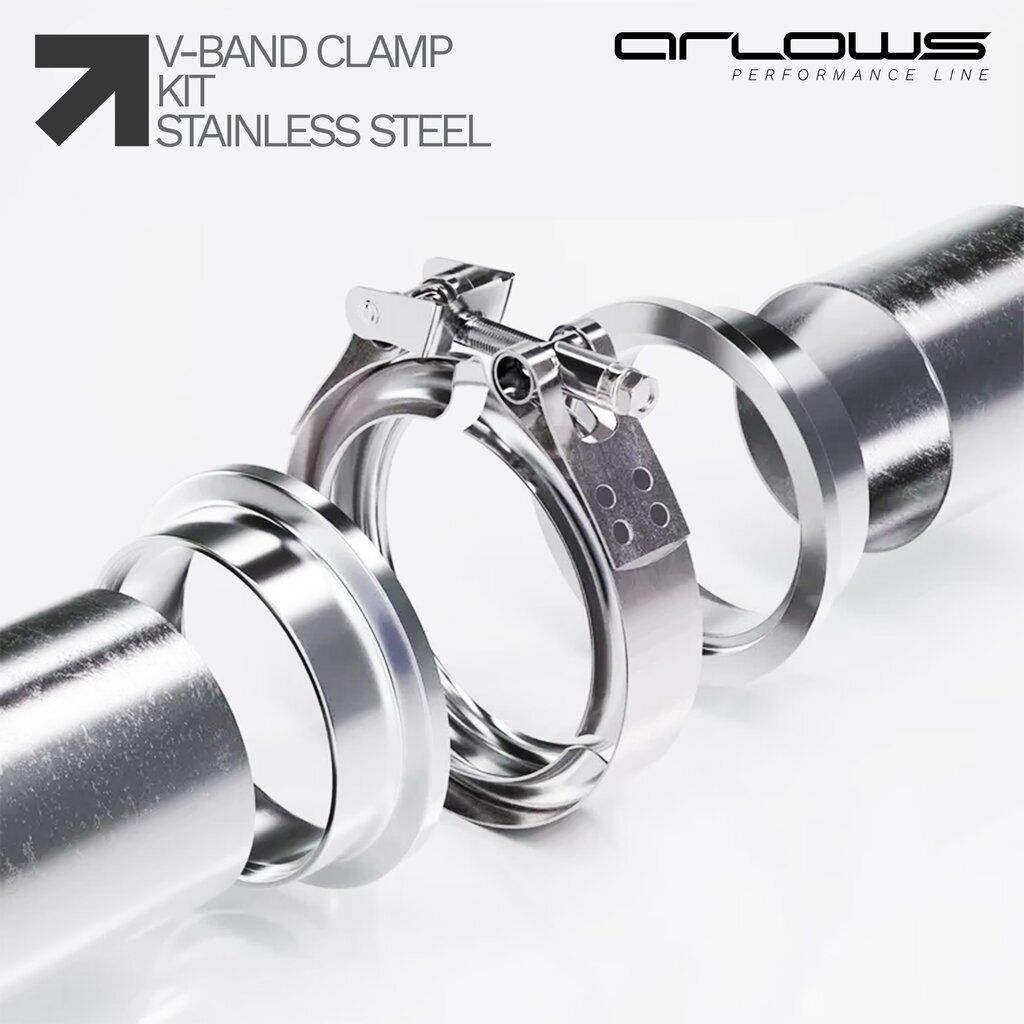

Clamp, rings or set

SHOP V-BAND >

Item number:	AR2148
weight‍:	0,1KG
Material‍:	Edelstahl
Diameter‍:	Ø 102mm / 4"
