56,90 € *
sofort verfügbar
Description
V-BAND 102 MM AR0623

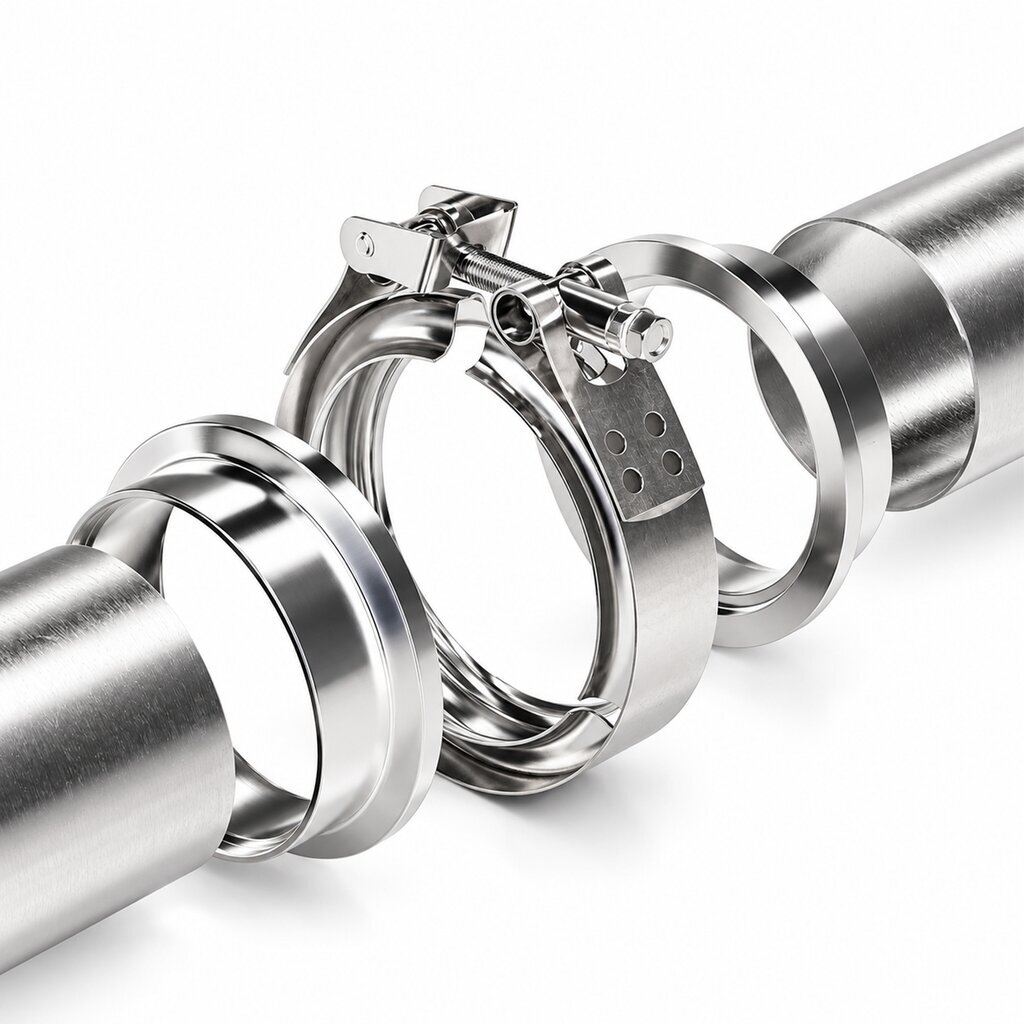

Arlows V-Band weld rings 102 mm / 4 in

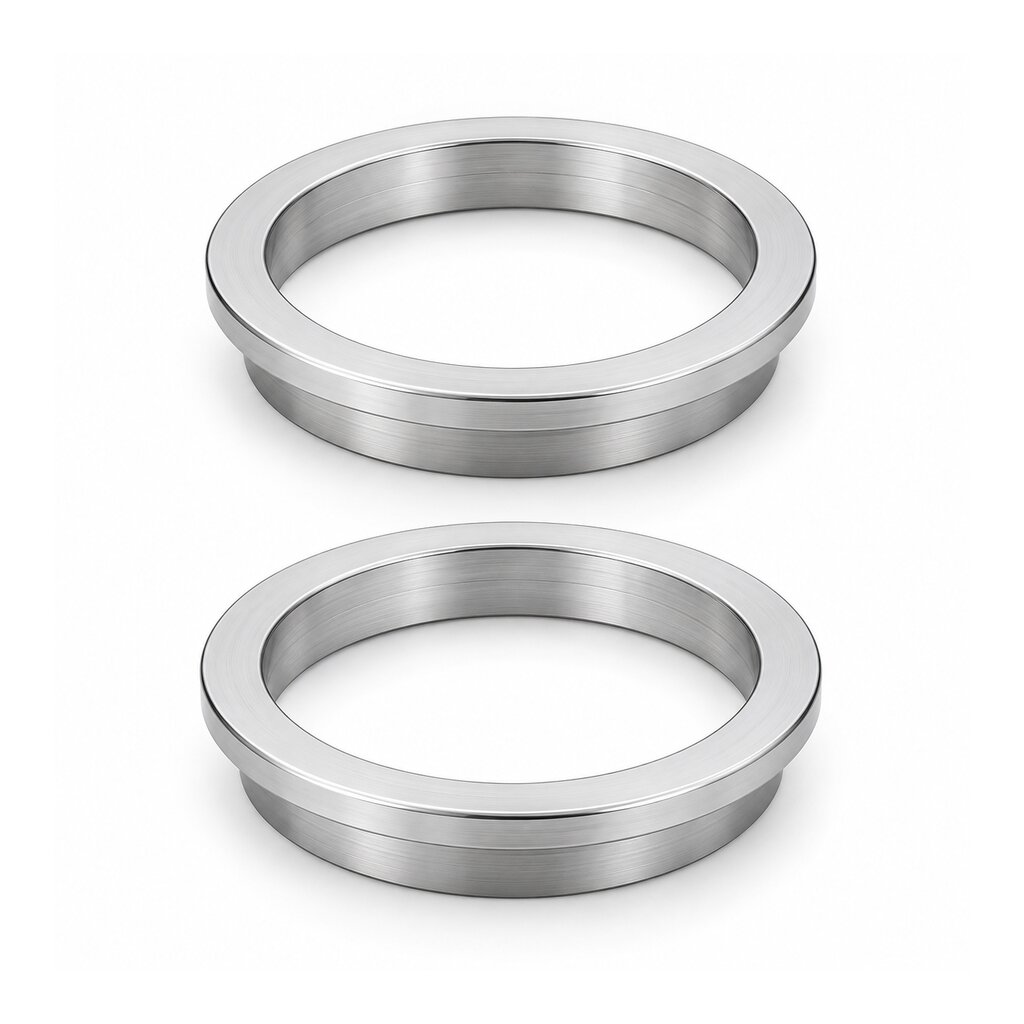

Two weld rings for 102 mm / 4 in stainless tube.
Two weld rings for 102 mm / 4 in stainless tube. Chamfered seat, weld inside and outside, then a smooth bore with no step.
CHAMFER
Slide the tube into the seat, weld inside and outside. The flange does not pull out of true.
STAINLESS
1.4301 / V2A. Heat, vibration, exhaust.
SMOOTH BORE
After welding the inside diameter is the tube's.
EXHAUST AND TURBO
Downpipe, header, turbo flange, wastegate.
Use cases
- Exhaust: downpipe, header, mid pipe, rear silencer
- Turbo: turbine outlet, wastegate, external bypass
- Shop: remove a part without cutting the weld
Technical data
| Part number | AR0623 |
| Fits tube | 102 mm / 4 in |
| Material | stainless 1.4301 / 304 |
| Build | 2 weld rings |
| Bore after weld | 97,6 mm |
| Chamfer depth | 7 mm |
| Ring thickness | 15 mm |
Fitment
Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding. Tighten the clamp only after it has cooled. Do not mix aluminium and stainless in the same weld.
| Item number: | AR0623 |
| Material: | Edelstahl |
