Description

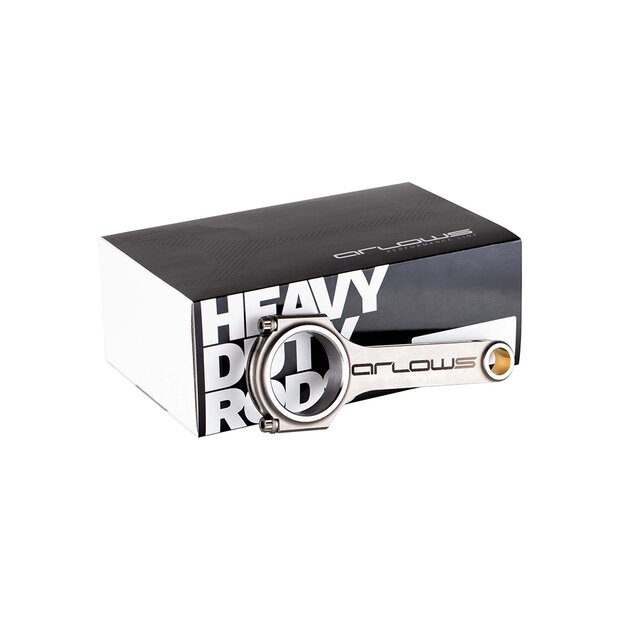

Arlows 6x Steel Connecting Rod Audi RS4 154mm (H-Beam)
Fitting at following Audi V6 engines:
- Audi RS4 2,7L Biturbo
This highquality con-rods are made of 4340 steel (40CrNiMoA).
The H-shank enables maximum stability during minimum weight.
Thereby they're perfectly suited for high-engine-speeds.
At first this con-rods got many times hardened to achieve an durability of HRC35-38.
Finally they got shot-blasted to strenghen the surface density to the maximum.
Before all of our con-rods are 3D designed and finally CNC-milled, it's possible to simulate a lot of charge states and tensions.
The small-end-bearing is made of bronze, and is suited with an lubrication bore.
All our connecting rods are equipped with high-strength Pro-Series 14.9 screws ! These have a tensile strength of 1490N/mm^2. Furthermore, the threads are rolled which also increases the flank thickness by 30%.
Allowance:
Piston pin bore: +-4/1000mm
Crank pin bore: +-4/1000mm
Verticality, paralellism und deformation: +-5/1000mm
Weight: +-1 Gramm
Technical specifications:
Material: 4340 Stahl (40CrNiMoA)
Tenacity: >1250N/mm²
Length: 154mm
Piston pin bore: 21mm
Upper width:
Crank pin bore:
Lower width:
Weight incl. screws: 510 Gramm
(Original: 645 Gramm)
Employment:
- approved for up to 9000upm
- approved for up to 200hp per con-rod
| Item number: | AR0916 |
