Arlows V-Band Kit with Quick Lock 5 / 127mm (self-centering / Stainless Steel)

Arlows V-Band Kit with Quick Lock 5" / 127mm (self-centering / Stainless Steel)

64,90 €
including 19% VAT. , plus shipping (Paketversand)
Arlows V-band set with quick release 5 "/ 127 mm (self-centering, stainless steel)
Available now!

Shipping time: 1 - 2 workdays

Description

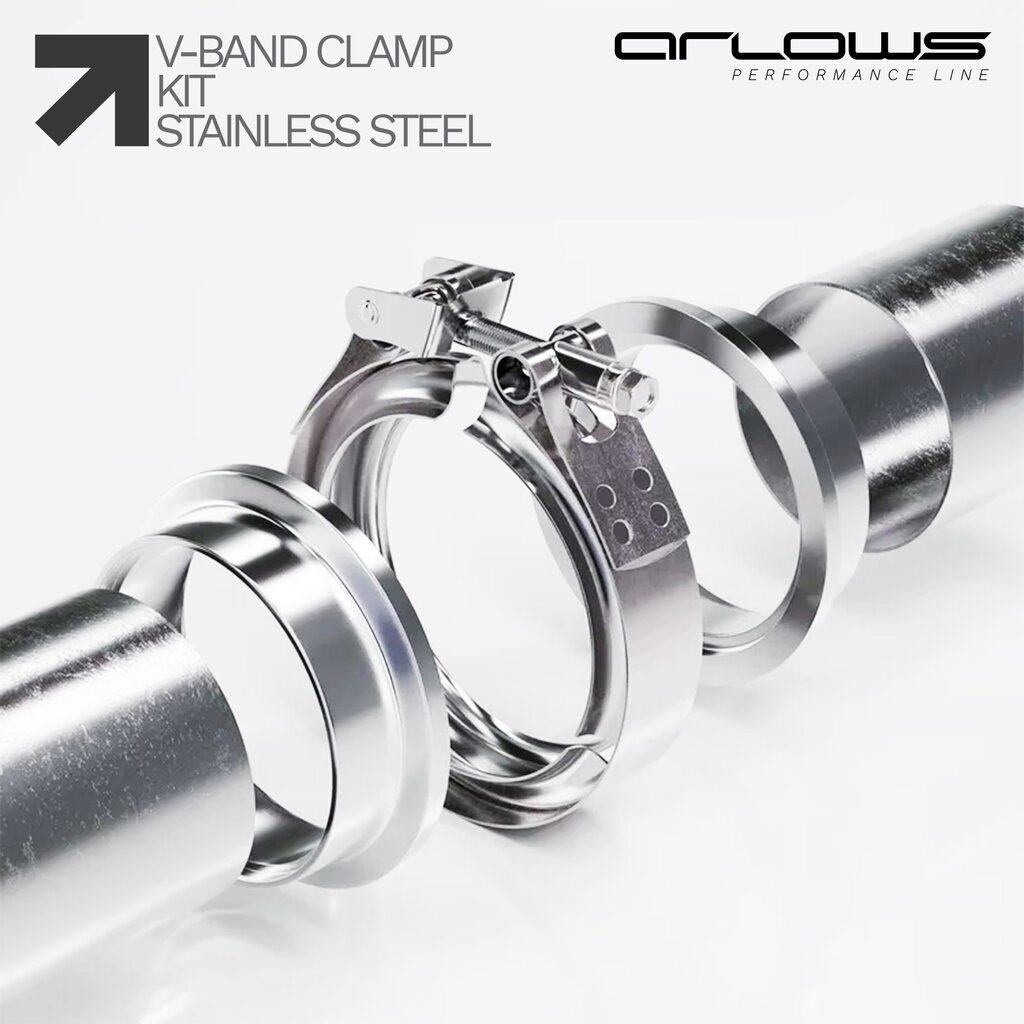

This set includes a clamp and 2 welded rings made of 100% stainless steel (1.4301)

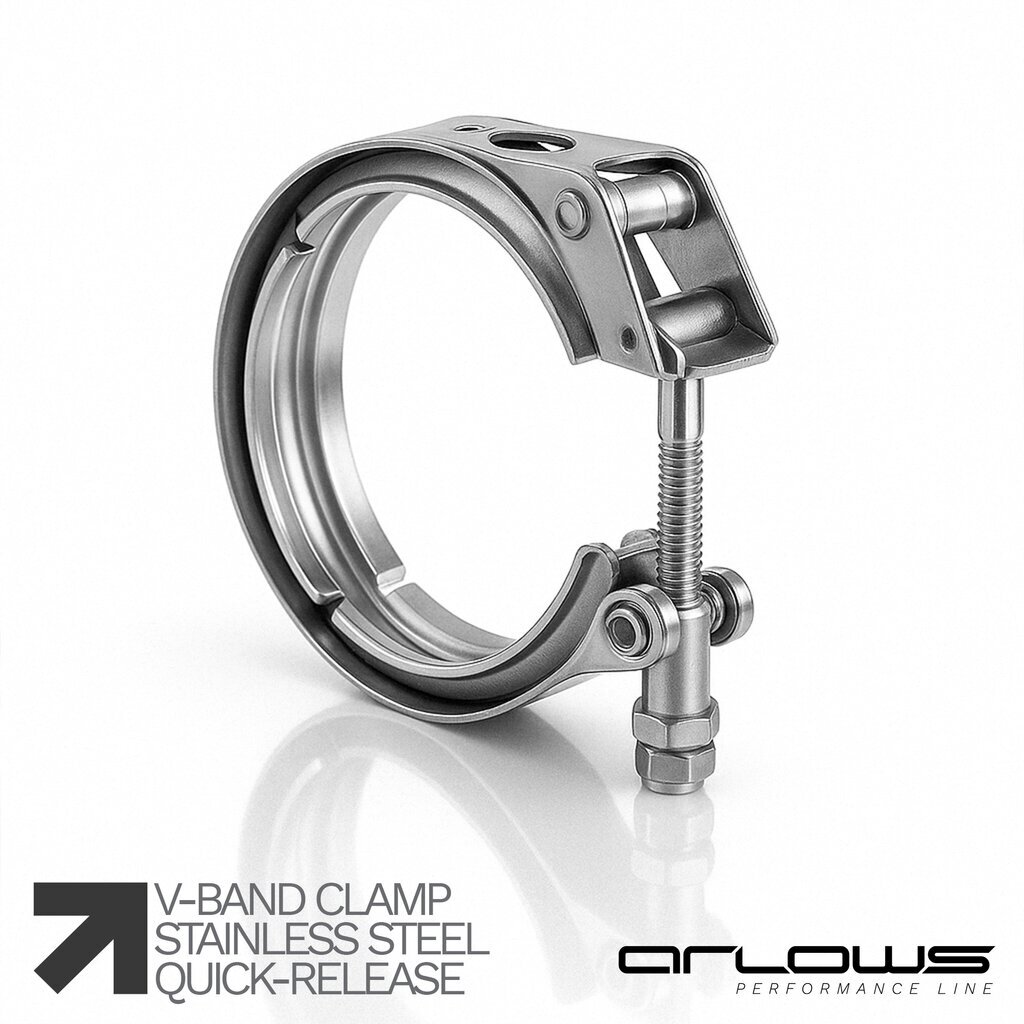

The clamp has a quick release, ideal for hard-to-reach areas.
This is the "self centering" high-end variant of the flanges.

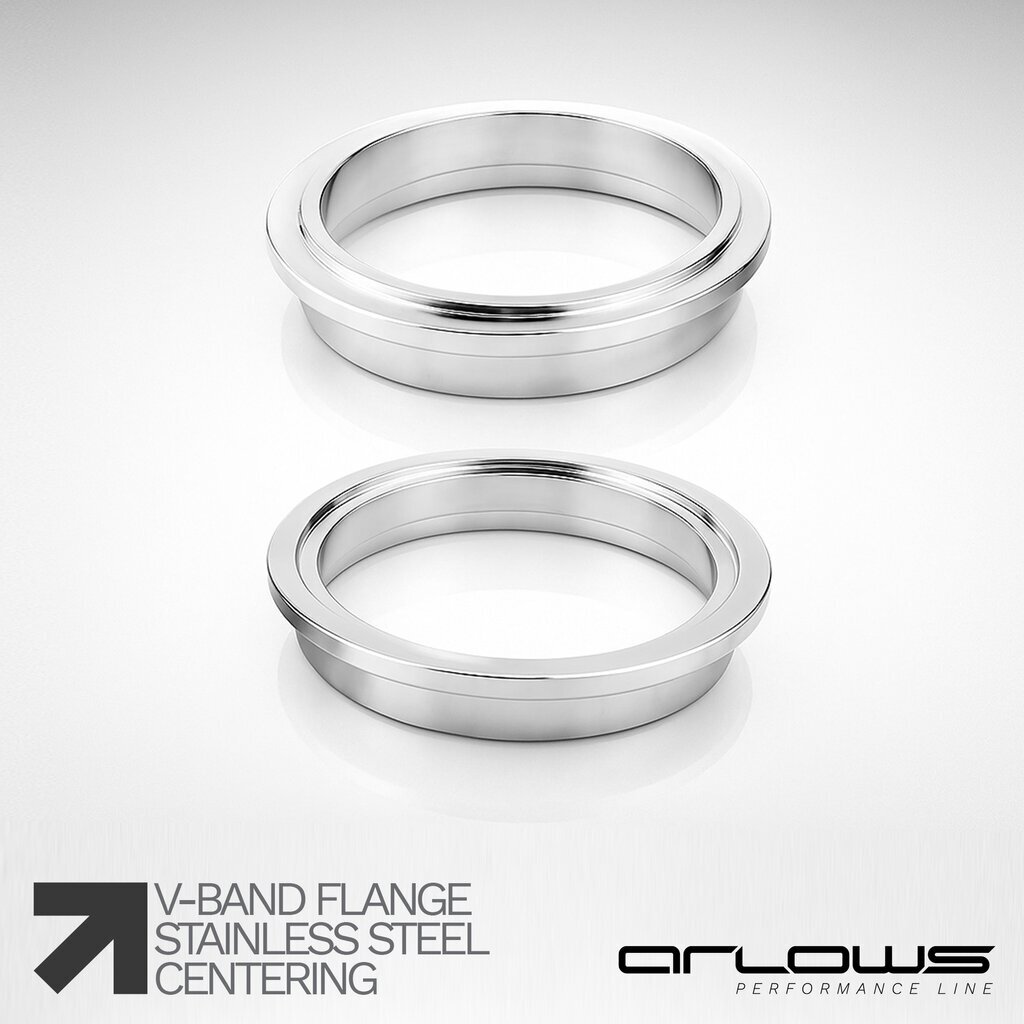

In this variant, there is a male and a female flange, which get centered via centering rabbet.
These flanges are centering themself through the rabbet.

The welded rings are equipped with a phase in which one the 127 mm stainless steel tube gets inserted.

Afterwards the flange and the tube have to be welded at the inside and the outside.

So there are no problems with wrong applied or distorted flanges.

The internal diameter of the flange will be just the same internal diameter as the one of the pipe, so that no unfavorable edges may occur.



Dimensions:
Inner diameter weld-on ring external: 5 "/ 127 mm
The phase depth: 7mm
Inner diameter weld-on ring inside: 123 mm
Thick pro weld-on ring: 15 mm
Diameter clamp: ~ 160mm
Thread: M8
Width: 13
Item number: TT00519
Material‍: Edelstahl
×
