Arlows Ø 63,5mm auf 57mm Silikon Schlauch Reduzierer ( Schwarz ) Reduzierstück

14,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	14,06 €*
4	13,62 €*
8	13,19 €*

Available now!
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

SILICONE AR4006

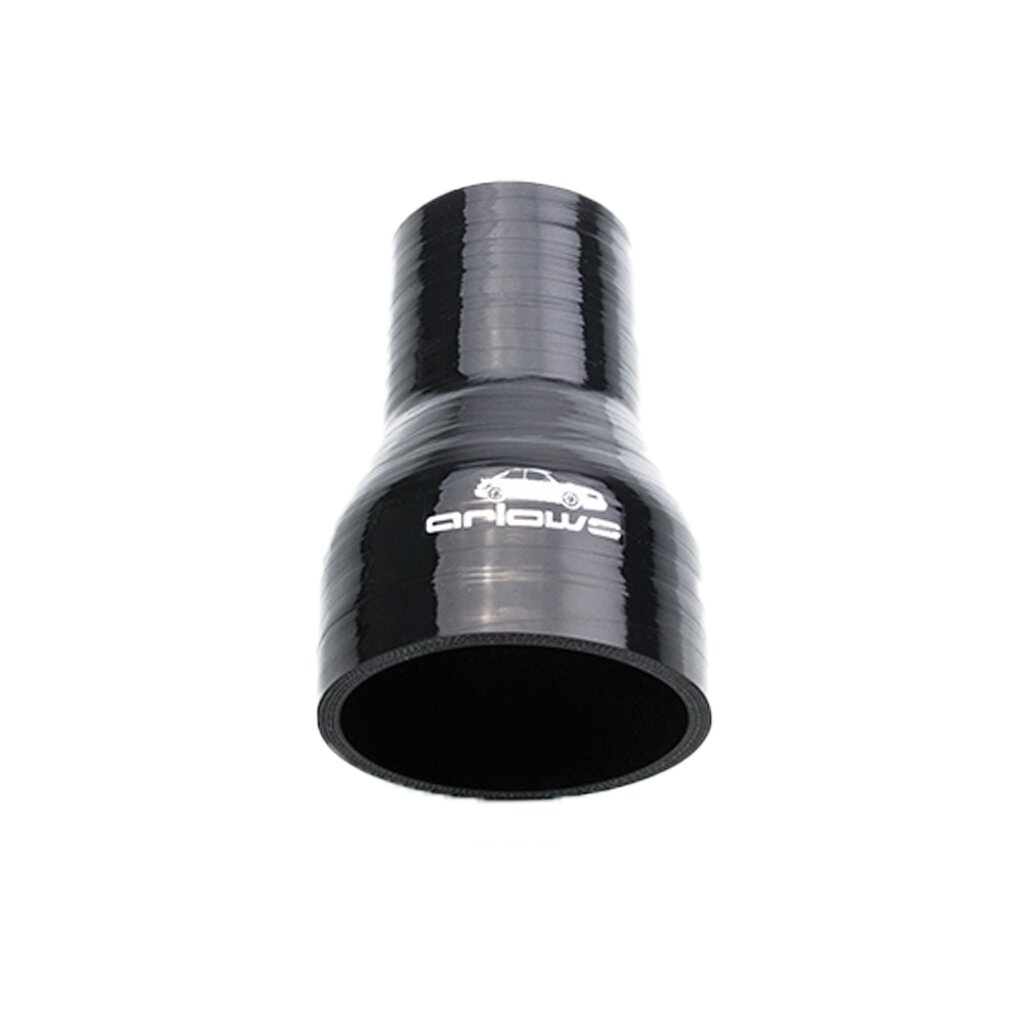

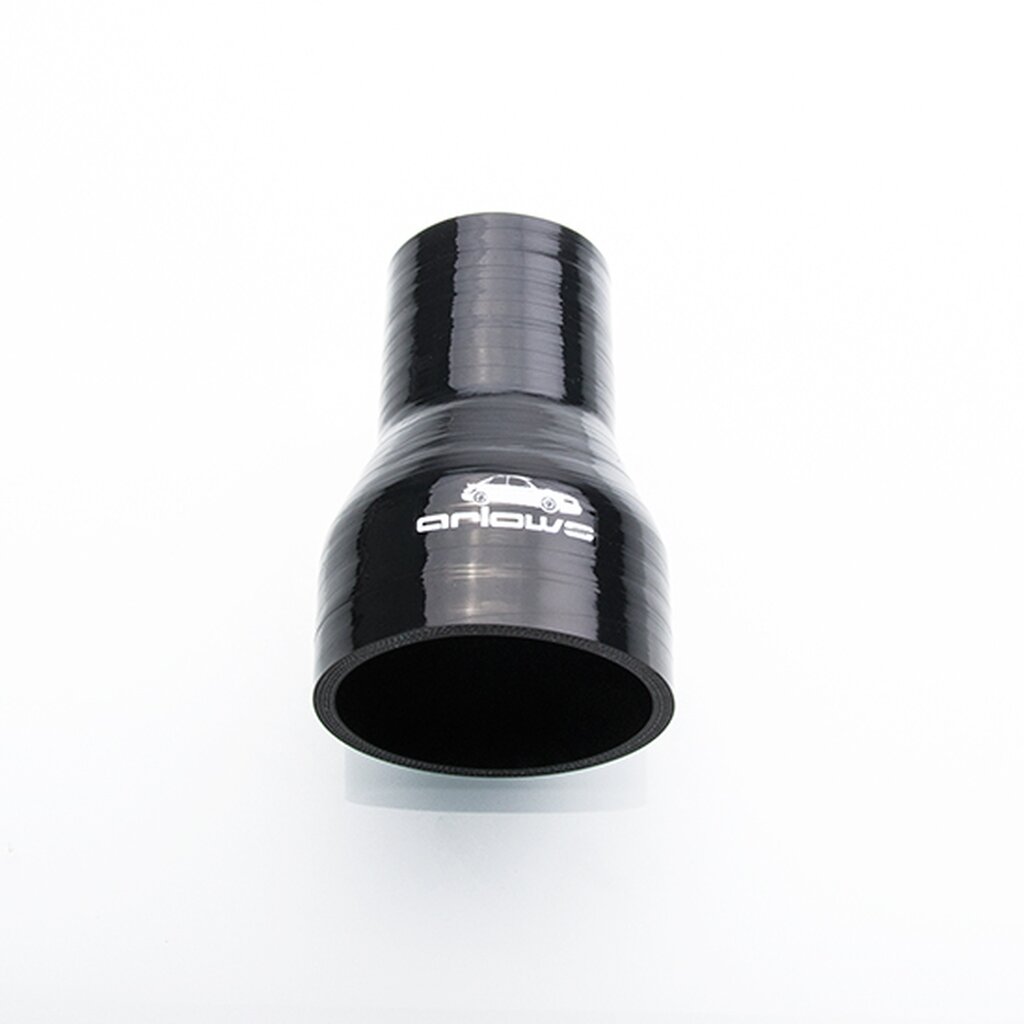

Arlows silicone hose straight reducer 63,5 mm to 57 mm Black

Straight reducer 63,5 mm to 57 mm.
Straight reducer 63,5 mm to 57 mm. A step in diameter without an extra elbow. Colour Black. Multilayer with fabric, logo on one side only, the other stays blank.

FABRIC

3 to 6 plies in the wall, depending on diameter. The hose holds shape under pressure.

PRESSURE

-0,5 to +5 bar. Temperature -40 °C bis 220 °C.

INSIDE SIZE

The size is the inside diameter. Clamp: inside diameter plus twice the wall.

NOT FOR FUEL

Charge air, intake air, coolant, heater. Not petrol, not oil.

Use cases

Charge air: charge pipe, throttle, intercooler, up to the stated pressure
Intake: vacuum and control lines
Water: coolant and heater, not fuel

Technical data

Part number	AR4006
Form	straight reducer
Inside diameter	63,5 mm to 57 mm
Colour	Black
Wall	4,3 mm
Length	127 mm
Pressure	-0,5 to +5 bar
Temperature	-40 °C bis 220 °C
Plies	3 to 6, depending on diameter

Fitment

Deburr the pipe or stub. Do not run the hose above the stated pressure. Clamp size = inside diameter plus twice the wall (4,3 mm). Up to 3 mm stretch if the nominal size is just short. Turn the logo inward if the run should stay blank. Do not use with fuel or oil.
