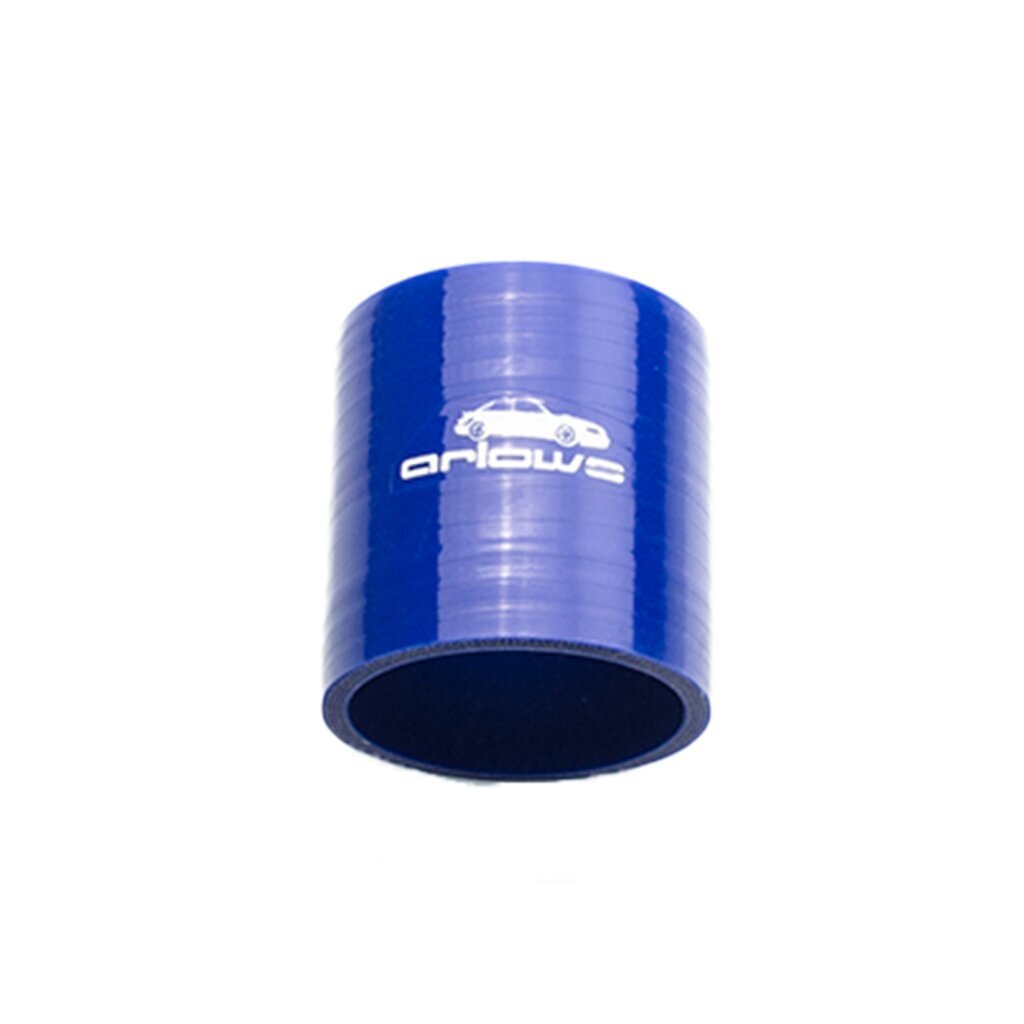

Straight silicone hose 63,5 mm.

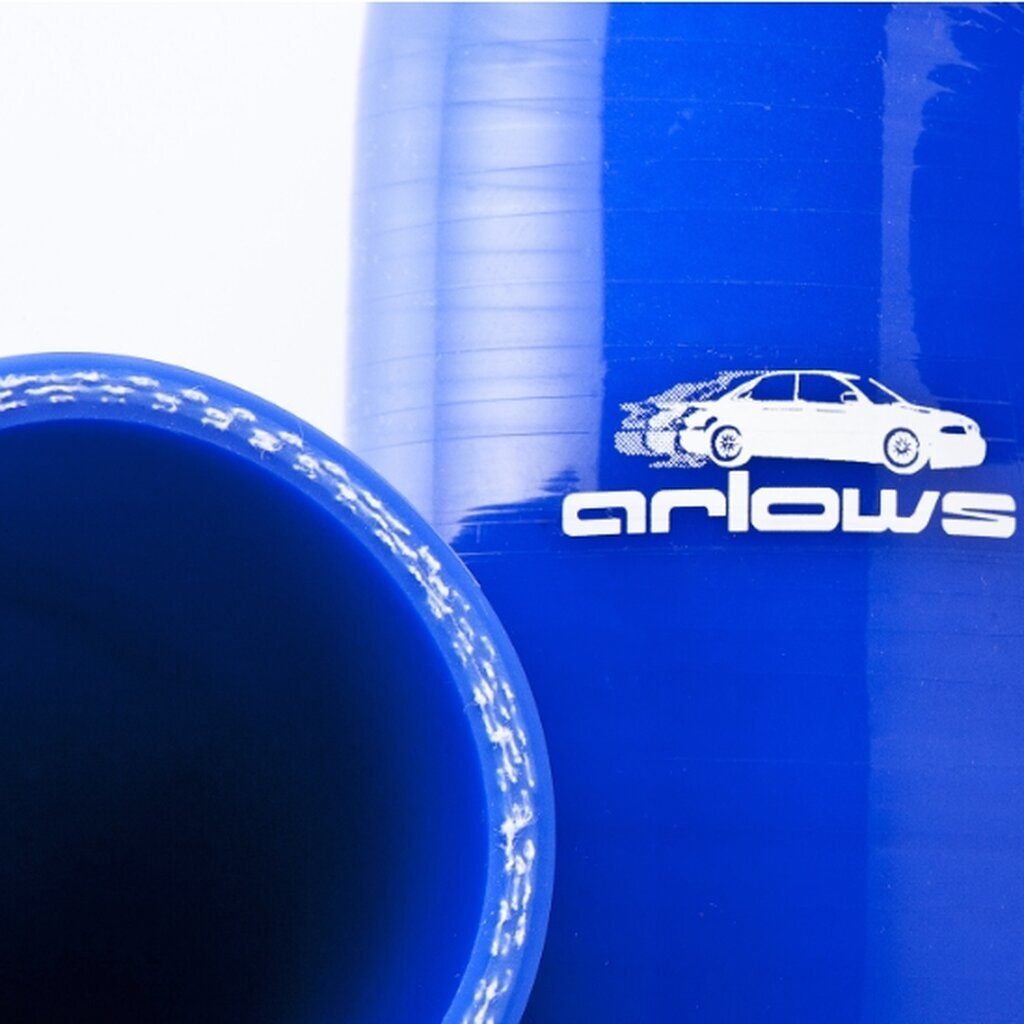

Straight silicone hose 63,5 mm. For charge air, intake and water. Colour Blue. Multilayer with fabric, logo on one side only, the other stays blank.
3 to 6 plies in the wall, depending on diameter. The hose holds shape under pressure.
-0,5 to +5 bar. Temperature -40 °C bis 220 °C.
The size is the inside diameter. Clamp: inside diameter plus twice the wall.
Charge air, intake air, coolant, heater. Not petrol, not oil.
| Part number | AR2808 |
| Form | straight hose |
| Inside diameter | 63,5 mm |
| Colour | Blue |
| Wall | 4,3 mm |
| Length | 75 mm |
| Pressure | -0,5 to +5 bar |
| Temperature | -40 °C bis 220 °C |
| Plies | 3 to 6, depending on diameter |
Deburr the pipe or stub. Do not run the hose above the stated pressure. Clamp size = inside diameter plus twice the wall (4,3 mm). Up to 3 mm stretch if the nominal size is just short. Turn the logo inward if the run should stay blank. Do not use with fuel or oil.
| Item number: | AR2808 |
| Angle: | Straight |
| Colour: | Blue |
| Version: | |
| Length: | 75mm |
| Diameter: | Ø 63,5mm / 2,5" |
