SILICONE AR2706

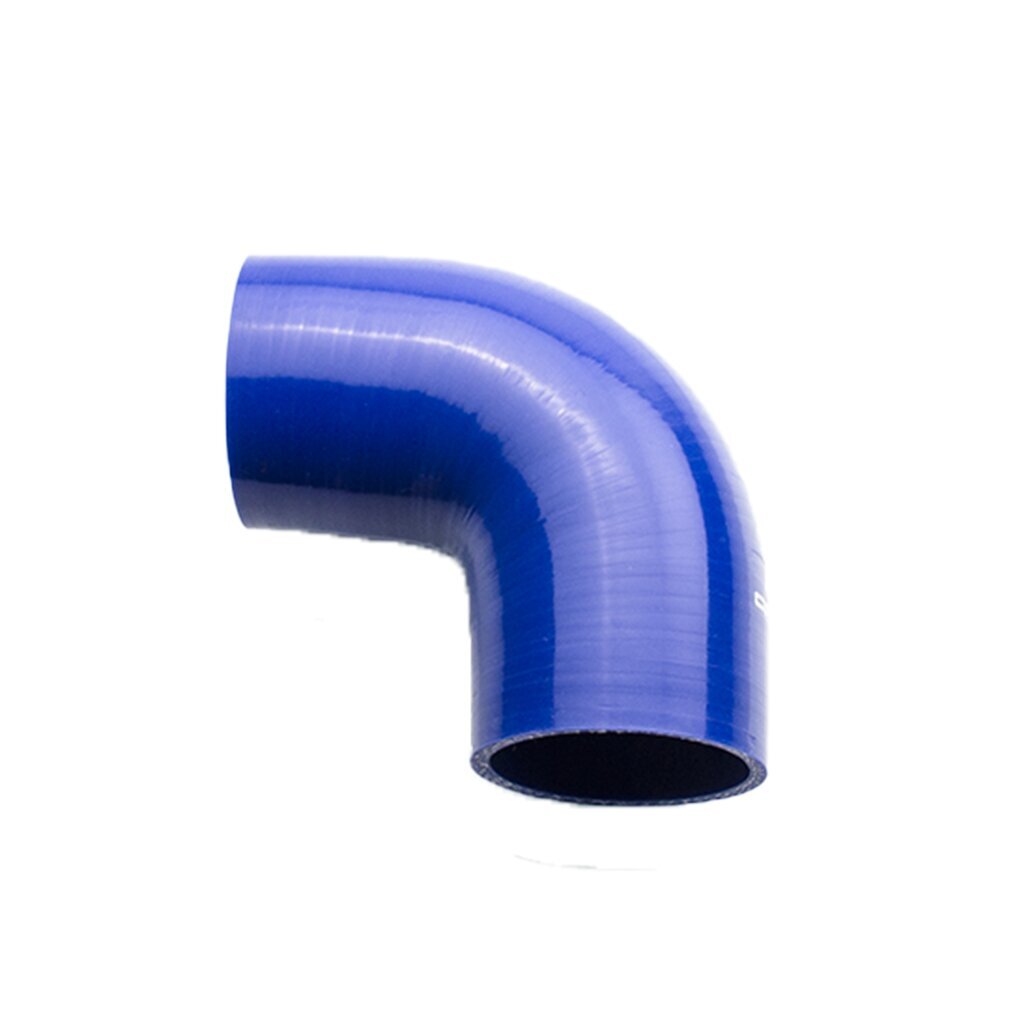

Arlows silicone hose 90 degree elbow 60,3 mm Blue
90 degree elbow, 60,3 mm inside.

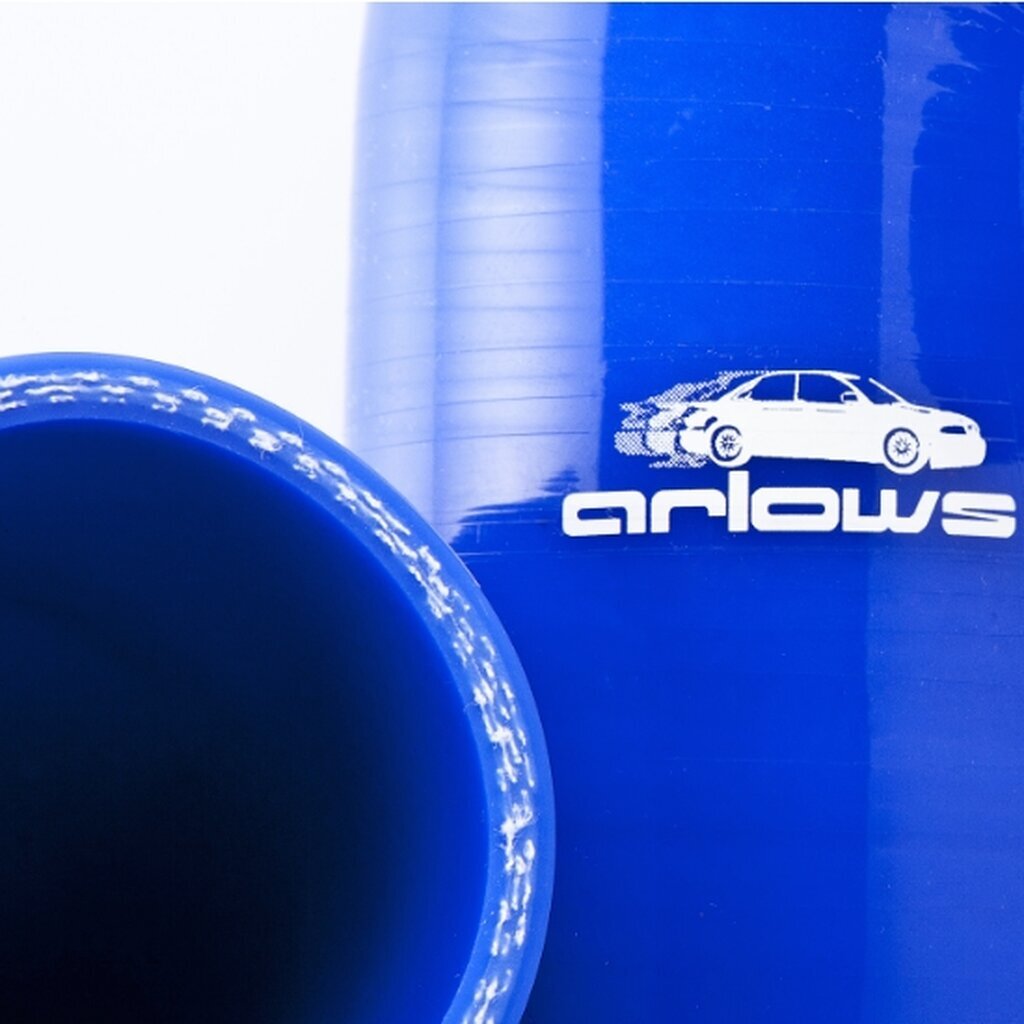

90 degree elbow, 60,3 mm inside. The turn is in the hose, the pipe stays straight. Colour Blue. Multilayer with fabric, logo on one side only, the other stays blank.
FABRIC
3 to 6 plies in the wall, depending on diameter. The hose holds shape under pressure.
PRESSURE
-0,5 to +5 bar. Temperature -40 °C bis 220 °C.
INSIDE SIZE
The size is the inside diameter. Clamp: inside diameter plus twice the wall.
NOT FOR FUEL
Charge air, intake air, coolant, heater. Not petrol, not oil.
Use cases
- Charge air: charge pipe, throttle, intercooler, up to the stated pressure
- Intake: vacuum and control lines
- Water: coolant and heater, not fuel
Technical data
| Part number | AR2706 |
| Form | 90 degree elbow |
| Inside diameter | 60,3 mm |
| Colour | Blue |
| Wall | 5,3 mm |
| Leg length | 60 mm |
| Length | 60 mm |
| Pressure | -0,5 to +5 bar |
| Temperature | -40 °C bis 220 °C |
| Plies | 3 to 6, depending on diameter |
Fitment
Deburr the pipe or stub. Do not run the hose above the stated pressure. Clamp size = inside diameter plus twice the wall (5,3 mm). Up to 3 mm stretch if the nominal size is just short. Turn the logo inward if the run should stay blank. Do not use with fuel or oil.
| Item number: | AR2706 |
| Colour: | Blue |
| Version: | |
| Angle: | 90° |
| Diameter: | Ø 60mm / 2,375" |
