Description
SILICONE AR3484

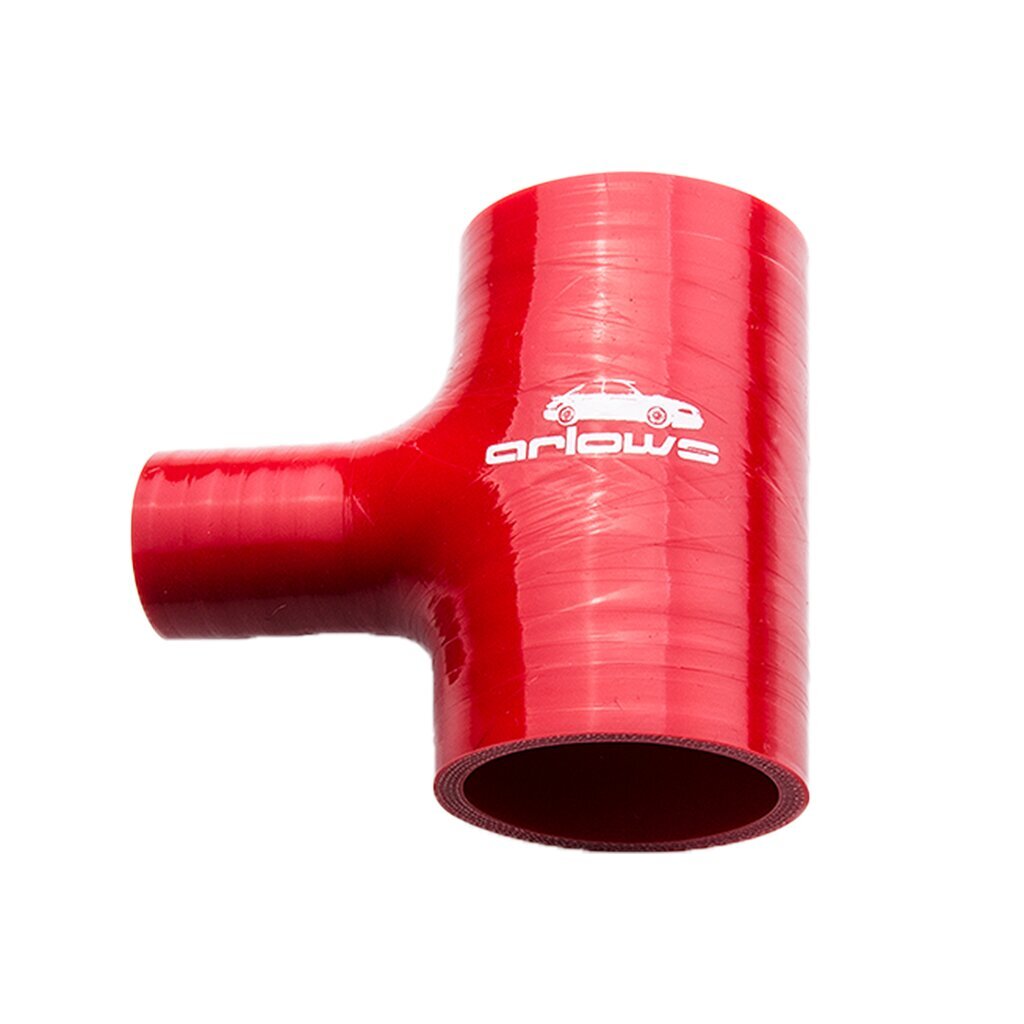

Arlows silicone hose T piece 54 mm Red
T piece 54 mm, branch 25 mm.
T piece 54 mm, branch 25 mm. Colour Red. Multilayer with fabric, logo on one side only, the other stays blank.
FABRIC
3 to 6 plies in the wall, depending on diameter. The hose holds shape under pressure.
PRESSURE
-0,5 to +5 bar. Temperature -40 °C bis 220 °C.
INSIDE SIZE
The size is the inside diameter. Clamp: inside diameter plus twice the wall.
NOT FOR FUEL
Charge air, intake air, coolant, heater. Not petrol, not oil.
Use cases
- Charge air: charge pipe, throttle, intercooler, up to the stated pressure
- Intake: vacuum and control lines
- Water: coolant and heater, not fuel
Technical data
| Part number | AR3484 |
| Form | T piece |
| Inside diameter | 54 mm |
| Colour | Red |
| Wall | 4,3 mm |
| Leg length | 100 mm |
| Length | 100 mm |
| Branch | 25 mm |
| Pressure | -0,5 to +5 bar |
| Temperature | -40 °C bis 220 °C |
| Plies | 3 to 6, depending on diameter |
Fitment
Deburr the pipe or stub. Do not run the hose above the stated pressure. Clamp size = inside diameter plus twice the wall (4,3 mm). Up to 3 mm stretch if the nominal size is just short. Turn the logo inward if the run should stay blank. Do not use with fuel or oil.
