Arlows Ø 45mm Silikon Wulstverbinder 1fach 100mm Länge ( Schwarz ) Schlauch

13,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	13,09 €*
4	12,68 €*
8	12,28 €*

Available now!
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

SILICONE AR2839

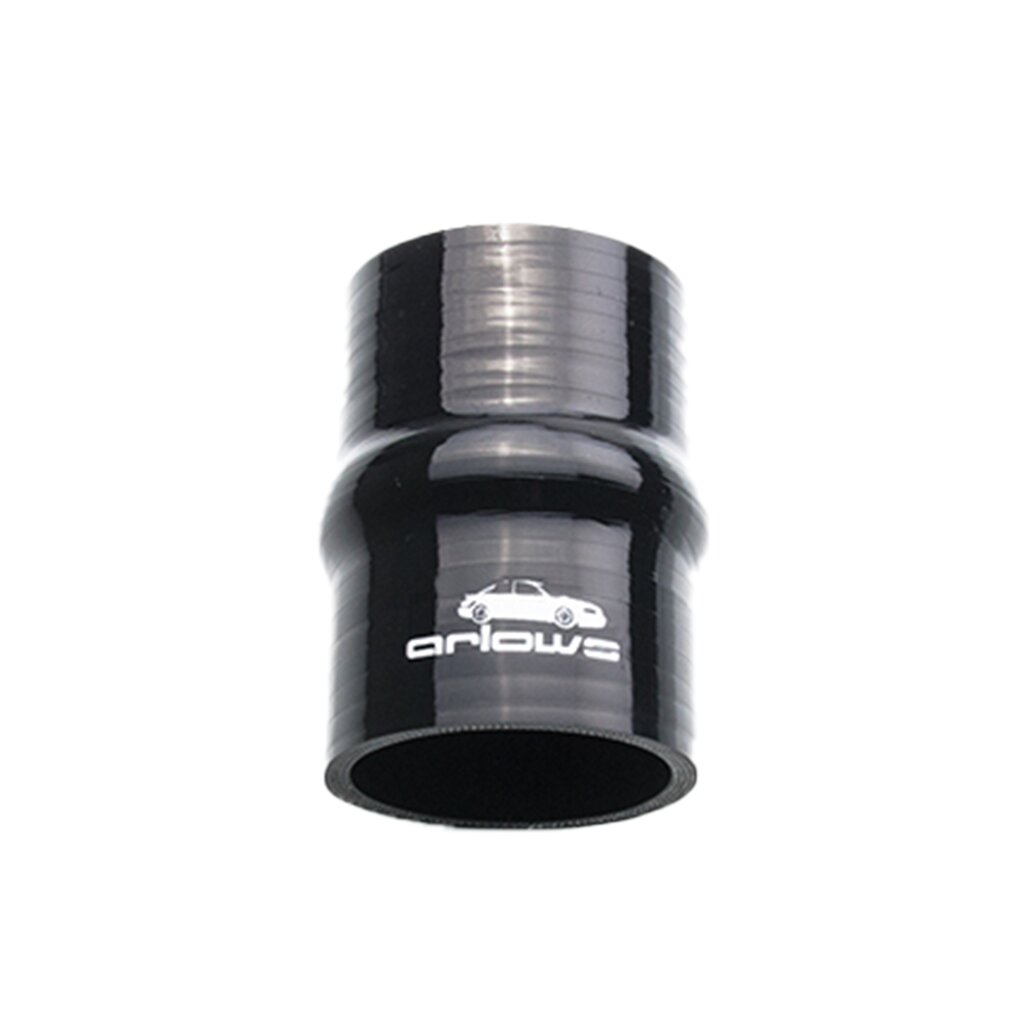

Arlows silicone hose straight hump hose 45 mm Black

Straight hose with hump, 45 mm.
Straight hose with hump, 45 mm. The hump takes up offset and vibration. Colour Black. Multilayer with fabric, logo on one side only, the other stays blank.

FABRIC

3 to 6 plies in the wall, depending on diameter. The hose holds shape under pressure.

PRESSURE

-0,5 to +5 bar. Temperature -40 °C bis 220 °C.

INSIDE SIZE

The size is the inside diameter. Clamp: inside diameter plus twice the wall.

NOT FOR FUEL

Charge air, intake air, coolant, heater. Not petrol, not oil.

Use cases

Charge air: charge pipe, throttle, intercooler, up to the stated pressure
Intake: vacuum and control lines
Water: coolant and heater, not fuel

Technical data

Part number	AR2839
Form	straight hump hose
Inside diameter	45 mm
Colour	Black
Wall	4,3 mm
Length	100 mm
Pressure	-0,5 to +5 bar
Temperature	-40 °C bis 220 °C
Plies	3 to 6, depending on diameter

Fitment

Deburr the pipe or stub. Do not run the hose above the stated pressure. Clamp size = inside diameter plus twice the wall (4,3 mm). Up to 3 mm stretch if the nominal size is just short. Turn the logo inward if the run should stay blank. Do not use with fuel or oil.
