Arlows Ø 35mm auf 28mm Silikon Schlauch Reduzierer ( Rot ) Reduzierstück

10,49 €

including 19% VAT. , plus (Paketversand)

From	Price per unit
2	10,18 €
4	9,86 €
8	9,55 €

Description

SILICONE AR3394

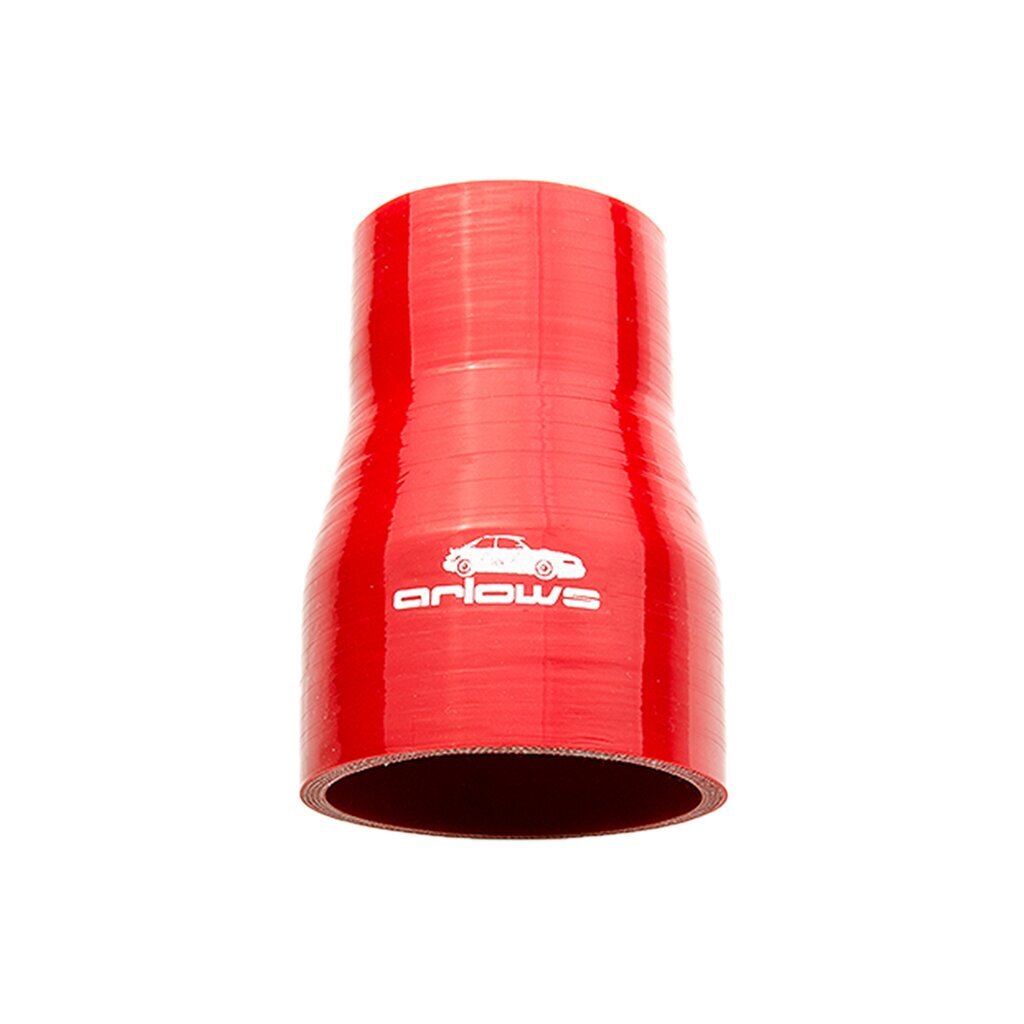

Arlows silicone hose straight reducer 35 mm to 28 mm Red

Straight reducer 35 mm to 28 mm.
Straight reducer 35 mm to 28 mm. A step in diameter without an extra elbow. Colour Red. Multilayer with fabric, logo on one side only, the other stays blank.

FABRIC

3 to 6 plies in the wall, depending on diameter. The hose holds shape under pressure.

PRESSURE

-0,5 to +5 bar. Temperature -40 °C bis 220 °C.

INSIDE SIZE

The size is the inside diameter. Clamp: inside diameter plus twice the wall.

NOT FOR FUEL

Charge air, intake air, coolant, heater. Not petrol, not oil.

Use cases

Charge air: charge pipe, throttle, intercooler, up to the stated pressure
Intake: vacuum and control lines
Water: coolant and heater, not fuel

Technical data

Part number	AR3394
Form	straight reducer
Inside diameter	35 mm to 28 mm
Colour	Red
Wall	4,3 mm
Length	127 mm
Pressure	-0,5 to +5 bar
Temperature	-40 °C bis 220 °C
Plies	3 to 6, depending on diameter

Fitment

Deburr the pipe or stub. Do not run the hose above the stated pressure. Clamp size = inside diameter plus twice the wall (4,3 mm). Up to 3 mm stretch if the nominal size is just short. Turn the logo inward if the run should stay blank. Do not use with fuel or oil.

Other size or colour?

Elbow, reducer, hump, T piece

SHOP SILICONE HOSES >

Item number:	AR3394
Angle‍:	Straight
Material‍:	Silikon
manufacturer‍:	Arlows
Version‍:	Reducer
Colour‍:	Red
Diameter‍:	Ø 35mm
