Description

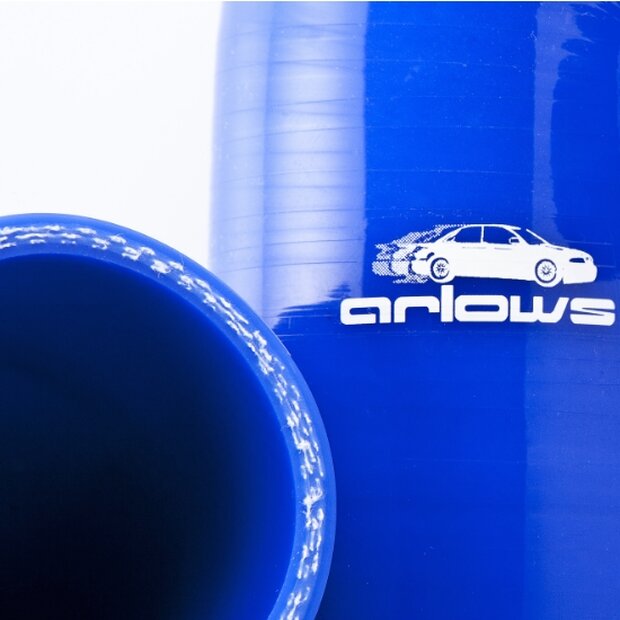

MULTILAYER SILICONE HOSE FOR UNIVERSAL USE
Our silicone hoses are made of high quality silicone.
Depending on the diameter these hoses have 3 or 6 layers of an integrated canvas in the silicone.
This strengthens the outer silicone cover so that our hoses have an extremely high compressive strength.
Distinguishing feature of our hoses is the high quality printed company logo.
This logo is only visible on one side so that the hose can be installed "blank", if desired.
Intended use:
- Boost pressure piping in the overpressure range up to 5 Bar
- Suctions / Control pipes in the underpressure range
- Waterpipes / Heating pipes
Technical details:
Inner diameter: 102mm and 76mm
Length: 150mm
Shape: Reducer Bend
Color: Blue
Wall thickness: 4,3mm
Layers:
Resilience: -1 to +5 bar
Temperature range: -40°C to 220"C

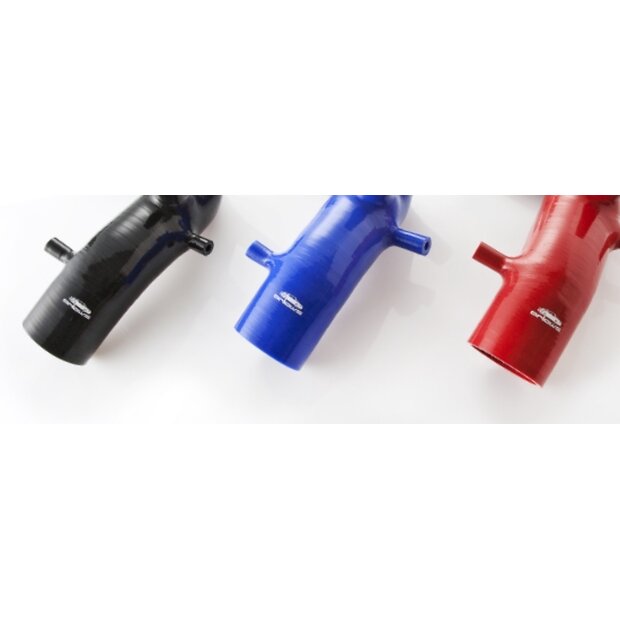

We constantly have the colors Blue, Black and Red on stock.
The colors White, Green, Orange and Yellow are available on request.
CAUTION:
The specified size is the inner diameter. If you need appropriate hose clamps you should add twice the wall thickness.
If you can not find your desired size, please choose the next smaller size because our hoses can be extended up to 3mm.
| Item number: | Ar5988 |
| Colour: | Blue |
| manufacturer: | Arlows |
| Version: | Reducer |
| Angle: | 45° |
| Diameter: | Ø 114mm / 4,5" |
