Arlows Ø 10mm 1 Meter Silikon Unterdruckschlauch ( Schwarz ) Meterware

13,49 €

13,49 € per 1 m

including 19% VAT. , plus (Paketversand)

From	Price per unit
2	13,09 €	13,09 € per m
5	12,68 €	12,68 € per m
10	12,14 €	12,14 € per m

Description

SILICONE AR3084

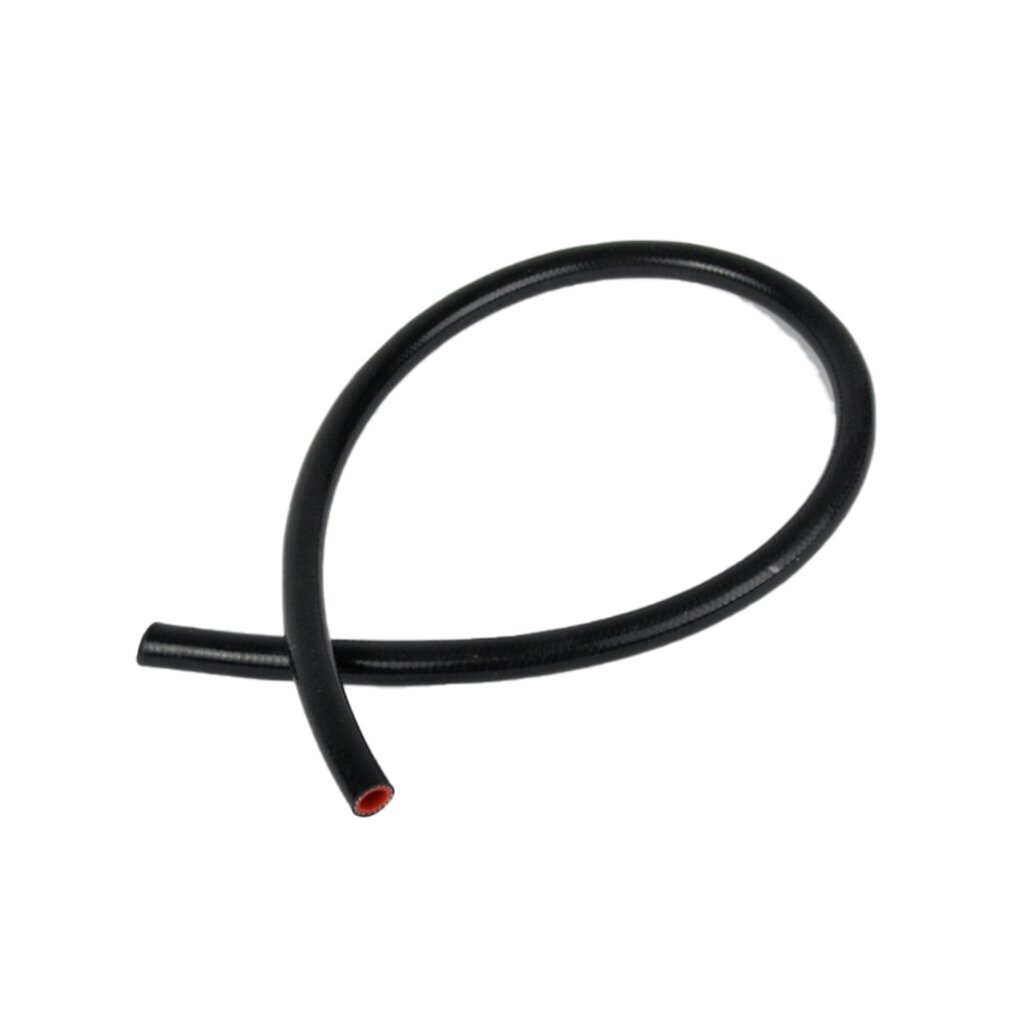

Arlows silicone hose sold by the metre 10 mm Black

Sold by the metre, 10 mm inside.
Sold by the metre, 10 mm inside. Quantity 1 is 1 metre. For control air, vacuum and water, not for 5 bar boost. Colour Black. Multilayer with fabric, logo on one side only, the other stays blank.

BY THE METRE

Quantity 3 = 3 metres. For vacuum and control lines up to 1 bar.

PRESSURE

-0,5 to +1 bar. Temperature -40 °C bis 220 °C.

INSIDE SIZE

The size is the inside diameter. Clamp: inside diameter plus twice the wall.

NOT FOR FUEL

Charge air, intake air, coolant, heater. Not petrol, not oil.

Use cases

Charge air: charge pipe, throttle, intercooler, up to the stated pressure
Intake: vacuum and control lines
Water: coolant and heater, not fuel

Technical data

Part number	AR3084
Form	sold by the metre
Inside diameter	10 mm
Colour	Black
Wall	2,5 mm
Length	1 metre each
Outside diameter	15 mm
Pressure	-0,5 to +1 bar
Temperature	-40 °C bis 220 °C
Plies	3 to 6, depending on diameter

Fitment

Deburr the pipe or stub. Do not run the hose above the stated pressure. Clamp size = inside diameter plus twice the wall (2,5 mm). Up to 3 mm stretch if the nominal size is just short. Turn the logo inward if the run should stay blank. Do not use with fuel or oil.

Other size or colour?

Elbow, reducer, hump, T piece

SHOP SILICONE HOSES >

Item number:	AR3084
Colour‍:	Black
Angle‍:	Straight
Material‍:	Silikon
manufacturer‍:	Arlows
Diameter‍:	Ø 10mm
Version‍:	Meter cuts
Contents‍:	1,00 m
