Description

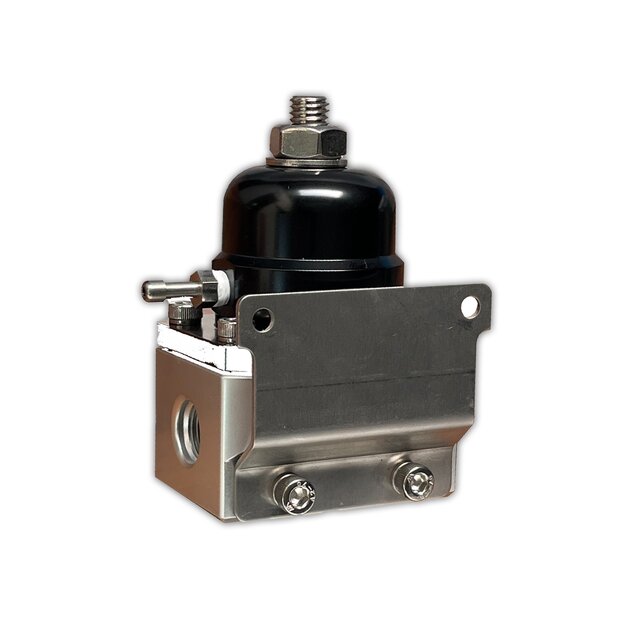

Arlows Performance Line Universal Fuel Pressure Regulator Dash 10 (Black)
This is a fuel pressure regulator which is adjustable via an adjusting screw in the range of 2-5Bar and is suitable for up to 1000HP engine power. The fuel pressure regulator is provided with a 0-10Bar pressure gauge, which is suitable for continuous operation. Furthermore, it has an O-ring to seal the adjustment screw and an extra tear-resistant double diaphragm inside!
This is a fuel pressure regulator which is adjustable via an adjusting screw in the range of 2-5Bar and is suitable for up to 1000HP engine power. The fuel pressure regulator is provided with a 0-10Bar pressure gauge, which is suitable for continuous operation. Furthermore, it has an O-ring to seal the adjustment screw and an extra tear-resistant double diaphragm inside!
The fuel pressure regulator has as in the original a vacuum connection to regulate the internal characteristic curve.
This ensures that the fuel pressure is always adjusted to the intake manifold pressure. The boost curve corresponds 1:1 to the boost pressure. This fuel pressure regulator is suitable for both turbo and naturally aspirated engines.
For large fuel pumps, these power pressure regulators are indispensable, thanks to their very high flow rate ( up to 700L/h). This regulator is approved for all fuel types incl. E85.
The use with air is not allowed!
This ensures that the fuel pressure is always adjusted to the intake manifold pressure. The boost curve corresponds 1:1 to the boost pressure. This fuel pressure regulator is suitable for both turbo and naturally aspirated engines.
For large fuel pumps, these power pressure regulators are indispensable, thanks to their very high flow rate ( up to 700L/h). This regulator is approved for all fuel types incl. E85.
The use with air is not allowed!
Scope of delivery:
- 1x fuel pressure regulator made of high-strength aluminum
Technical data:
- Housing: high strength aluminum
- Color: Black
- Flow volume: 10-700L/h
- Nominal pressure: 2-5Bar
- Application temperature: -35....140°
- Weight: 500grams
- Hose Connections:
- 2x Dash 10 / AN10 INPUT
- 1x Dash 6 / AN6 OUTPUT
| Item number: | AR12095 |
