24,49 € *
sofort verfügbar
Description
ARLOWS · AR1417

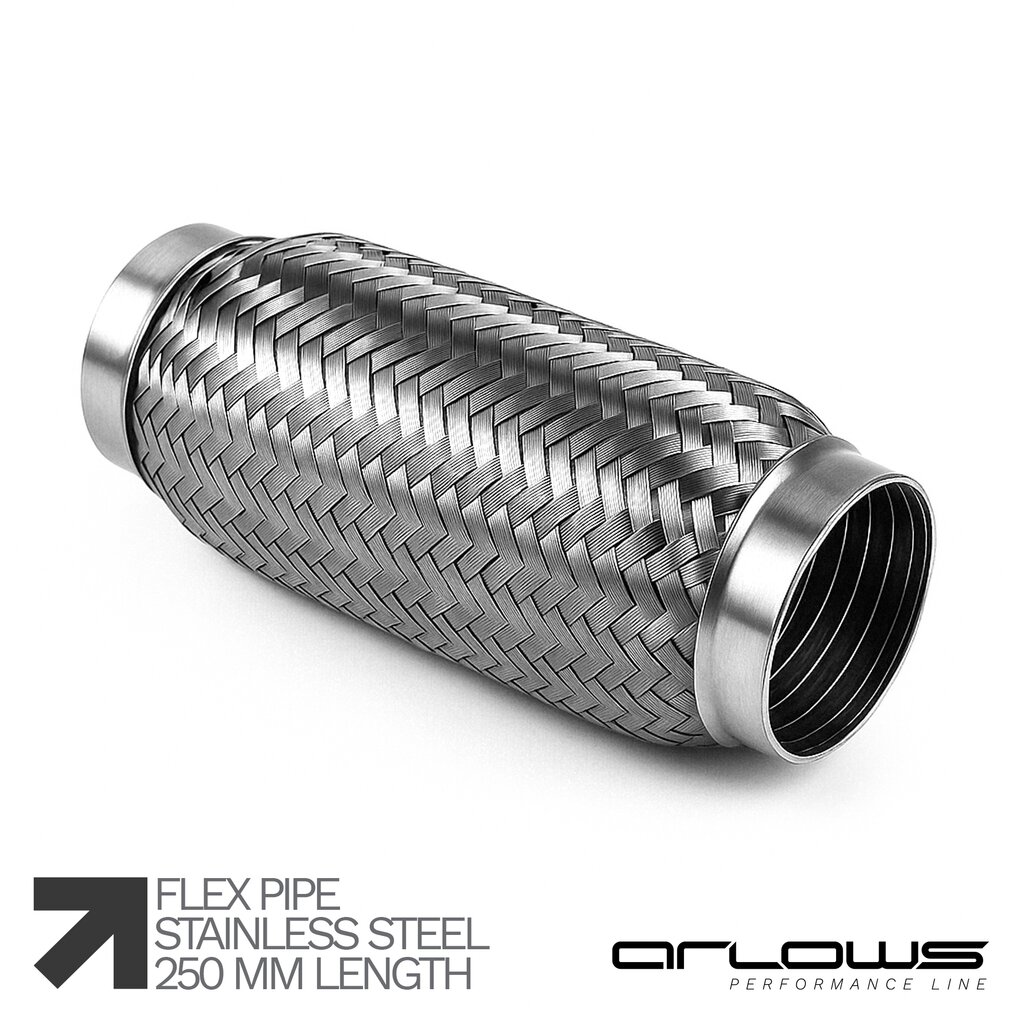

Arlows stainless steel flex pipe with interlock · 63.5 mm × 250 mm
Stainless steel flex pipe with an interlock liner for a flexible connection in the exhaust system. The flexible section helps accommodate movement between the engine and exhaust.
Benefits for your build
ACCOMMODATE MOVEMENT
The flexible section helps isolate movement between adjacent pipe sections.
INTERLOCK LINER
The internal interlock structure complements the flexible exhaust connection.
Technical specifications
| Nominal pipe size | 63.5 mm |
|---|---|
| Specified length | 250 mm |
| Material | Stainless steel / V2A |
| Internal construction | Interlock |
| Construction | 4 layers |
| Layer arrangement | 2 mesh layers, 1 bellows layer, 1 internal interlock layer |
| Nominal inch designation | 2.5 inch |
| SKU | AR1417 |
Applications
For exhaust pipe and downpipe repairs or custom fabrication with matching diameter and sufficient installation length.
Installation & notes
Align in a relaxed position without twisting, tension or compression. Prepare the joining surfaces and weld professionally. The flex section must not replace a missing exhaust support; check for leaks and clearance after installation.
Frequently asked question
Can a flex pipe replace a pipe bend?
A flex section accommodates movement. It should not be held in a severe bend to compensate for an unsuitable pipe layout.
Complete your exhaust build
Explore pipe connectors, clamps and components for your build. Select matching dimensions and configurations.
EXPLORE EXHAUST COMPONENTS >| Item number: | AR1417 |
| Diameter: | Ø 63,5mm / 2,5" |
| Length: | 250mm |
