Description
ARLOWS · AR3736

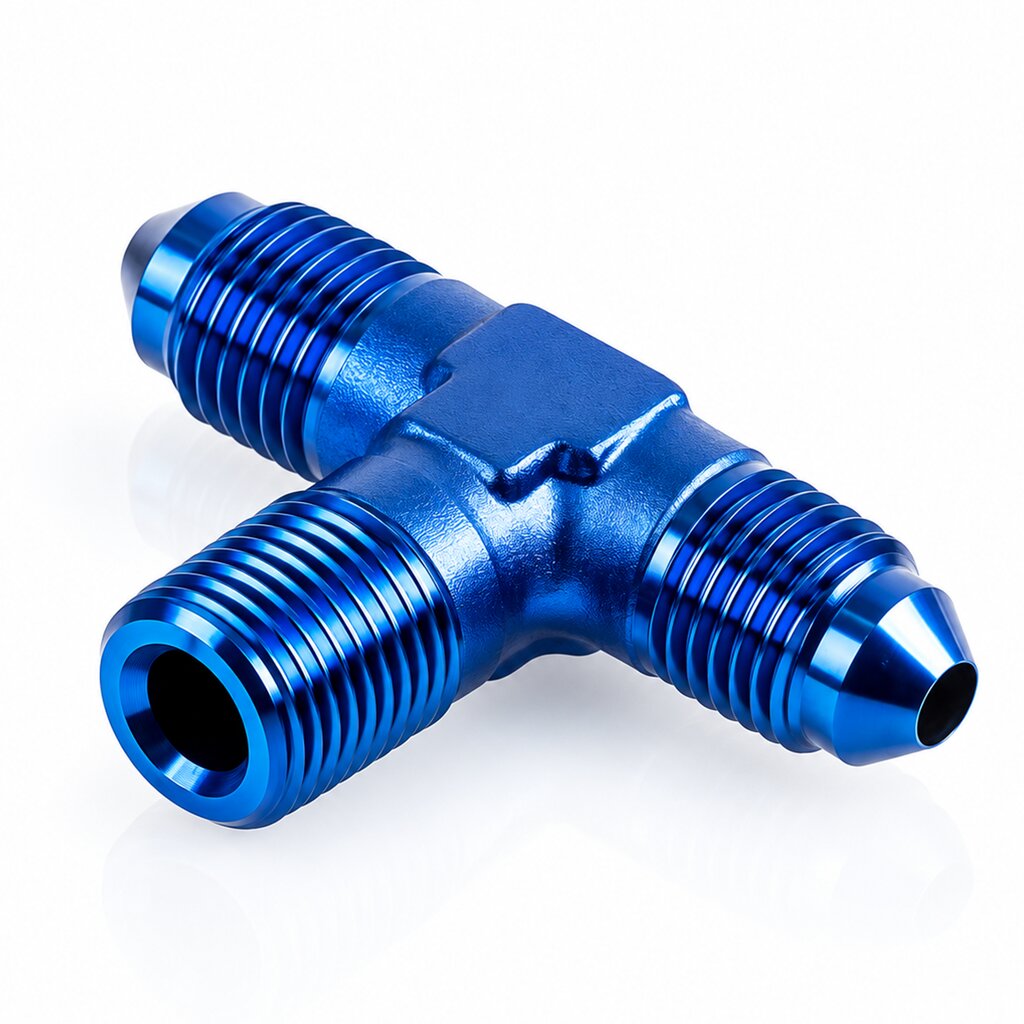

Arlows Adapter/T-piece 3/8" NPT to 2x Dash 8 " male
Split one NPT connection into two AN connections.
This aluminium T-piece combines an NPT connection with two male AN connections. The branch layout helps you plan two line routes from a suitable port. This version: Thread: 2x Dash 8 ( 3/4 - 16 UNF )/1x 3/8" NPT.
Benefits at a glance
THREE CONNECTIONS
One NPT connection and two AN connections are combined in one component.
T-SHAPED BRANCH
The design provides two branches from a shared connection point.
Technical specifications
| Thread | 2x Dash 8 ( 3/4 - 16 UNF )/1x 3/8" NPT |
|---|---|
| Material | Anodised aluminium |
| SKU | AR3736 |
Applications
For custom line branches with matching NPT and AN components. Check required flow and approval for fluid, pressure and temperature at system level.
Installation & notes
Assemble NPT threads using fluid-compatible thread sealant approved by the component manufacturer. Keep excess sealant out of the flow path. Do not back off a tightened connection to adjust its orientation. Check the completed connection for leaks. Clean and inspect the threads and sealing faces. AN/Dash flare fittings seal on the matching conical face; do not use thread tape on that connection. Use suitable tools to hold the mating part, route lines without strain and check the completed assembly for leaks. Follow the component manufacturer?s tightening instructions.
Common question
Do both connection types use the same seal?
No. NPT needs suitable thread sealing. The AN side relies on the intended flare sealing face.
Complete your line assembly
Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.
