Arlows 4x Steel Connecting Rod 137mm Honda 1.8 2.0 B18A B20 16V VTEC ( H-Beam )

549,00 €
including 19% VAT. , plus shipping (Paketversand)
Arlows 4x Steel Connecting Rod 137mm Honda 1.8 2.0 B18A B20 16V VTEC ( H-Beam )
Available now!

Shipping time: 1 - 2 workdays


Description

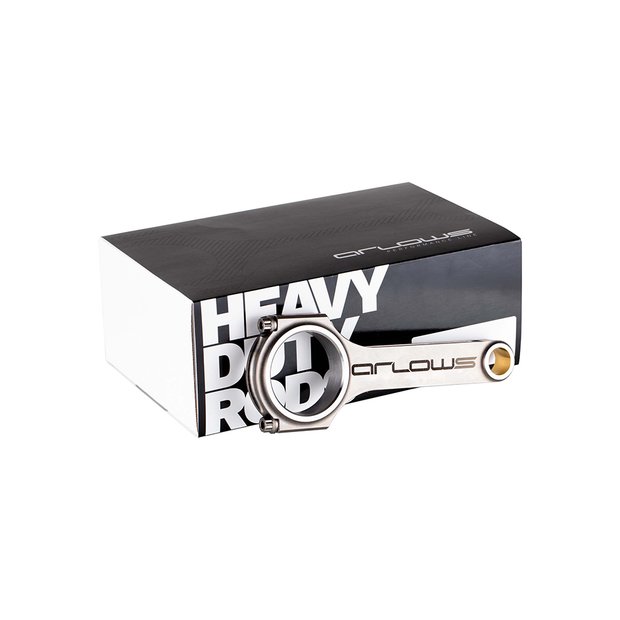

ARLOWS HONDA B18 / B20 4X STEEL CONNECTING ROD SET 137MM 16V VTEC (H-BEAM)

Light. Extremely strong. Precision engineered.
Your upgrade for maximum engine performance.

Building your Honda B18 or B20 1.8 / 2.0 16V VTEC engine for the racetrack or high performance? Then you need connecting rods you can rely on 100 %. The Arlows 4x Steel Connecting Rod Set 137mm B18 / B20 16V VTEC (H-Beam) made of high-quality 4340 steel (40CrNiMoA) is exactly the part trusted by professionals in motorsport, tuning and custom builds.

The optimized H-beam design delivers maximum stability at minimum weight. Forged, 3D-designed, CNC-machined, hardened and shot-peened ? perfect for high-revving engines. With bronze piston pin bushings, ultra-strong Pro-Series 14.9 bolts and extremely tight tolerances, you?re perfectly equipped for power levels far beyond stock.

Your advantages at a glance:

- Fits Honda B18A/B, B20, B20/B16 1.8 / 2.0 16V VTEC

- Forged from 4340 steel (40CrNiMoA) and CNC-machined

- H-beam for maximum stability at minimum weight

- 3D-designed & CNC-machined for optimal load distribution

- Hardened to HRC 35-38 + shot-peened

- Bronze piston pin bushings with lubrication hole

- High-strength Pro-Series 14.9 bolts (1490 N/mm² tensile strength)

- Rolled threads ? 30 % stronger flank strength

- Tight tolerances (±0.004 mm) and weight-matched (±1 g)

Technical Specifications

Parameter Value
Fits Honda B18A/B, B20, B20/B16 1.8 / 2.0 16V VTEC
Length 137 mm
Piston pin bore 21 mm
Crank pin bore 48 mm
Material 4340 Steel (40CrNiMoA)
Tensile strength > 1250 N/mm²
Max. RPM up to 9,000 rpm
Load capacity approx. 200 HP per rod
Bolts 3/8"

MATCHING INTERCOOLER FOR YOUR PROJECT? FIND IT HERE!

Discover the intercooler now
Item number: AR12074
×
