Description
Arlows Twin hose mounting clamp Ø11.40mm Dash 4 Black in construction equipment service; 1 component for a suitably engineered assembly.
ARLOWS · JFK-AR1702-02

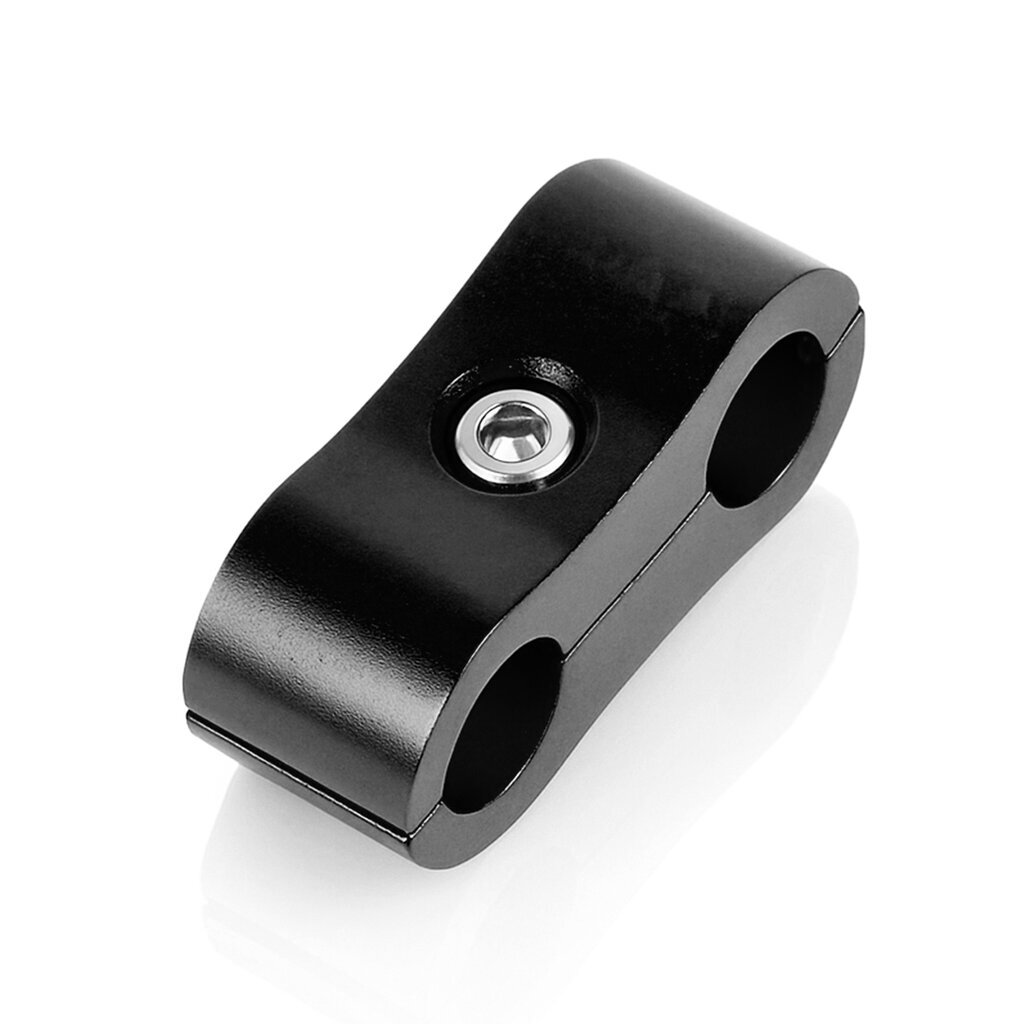

Arlows Twin hose mounting clamp Ø11.40mm Dash 4 Black Construction Service
Arlows Twin hose mounting clamp Ø11.40mm Dash 4 Black in construction equipment service; 1 component for a suitably engineered assembly.
This aluminium clamp supports two matching lines side by side at one mounting point. Both line outside diameters must suit the offered version. Parallel routing helps identify supply and return lines and keeps the line arrangement organised. In this service application, matching the existing line assembly is the main selection criterion. Offered version: Twin hose mounting clamp Ø11.40mm Dash 4 Black.
TWIN LINE SUPPORT
One clamp supports two matching lines in parallel.
CLAMP SIZE
Check the support size against both line outside diameters.
ALUMINIUM
Aluminium clamp for mechanical line support.
ORGANISED ROUTING
Defined support helps maintain separation from nearby components.
Applications
- Construction machinery service: a component for the mechanical support of matching hoses and tubes on excavators, wheel loaders and mobile work equipment.
- Keep the line away from joints, sharp edges and hot exhaust parts, with access for routine inspection.
- For custom assembly and maintenance; suitability depends on the complete assembly rather than a specific machine or engine model.
Technical data
| Brand | Arlows |
|---|---|
| Item number | JFK-AR1702-02 |
| Reference item number | AR1702 |
| Component | Twin hose mounting clamp |
| Material | Aluminium |
| Colour | Black |
| Dash designation | Dash 4 |
| Stated support diameter | 11.40mm |
| Version | twin |
| Connection or compatibility | Two lines with matching outside diameters; check the clamp size as well as the Dash designation. |
| Quantity supplied | 1 component |
Installation
- Compare the outside diameters of both lines with the clamp size.
- Plan parallel routing and a sound mounting point with sufficient clearance.
- Install the twin clamp with suitable fasteners without crushing or straining the lines.
- Check both lines for retention, movement allowance and potential chafing.
Scope of delivery
1 aluminium twin hose mounting clamp in the stated version; hoses and mounting screws are not included.
Match clamp diameter, mounting point and movement allowance to the line; inspect the installation for chafing and crushing.
| Item number: | JFK-AR1702-02 |
