Description
Arlows Hose mounting clamp Ø42mm rubber lined Red in agricultural equipment service; 1 component for a suitably engineered assembly.
ARLOWS · JFK-AR3253-01

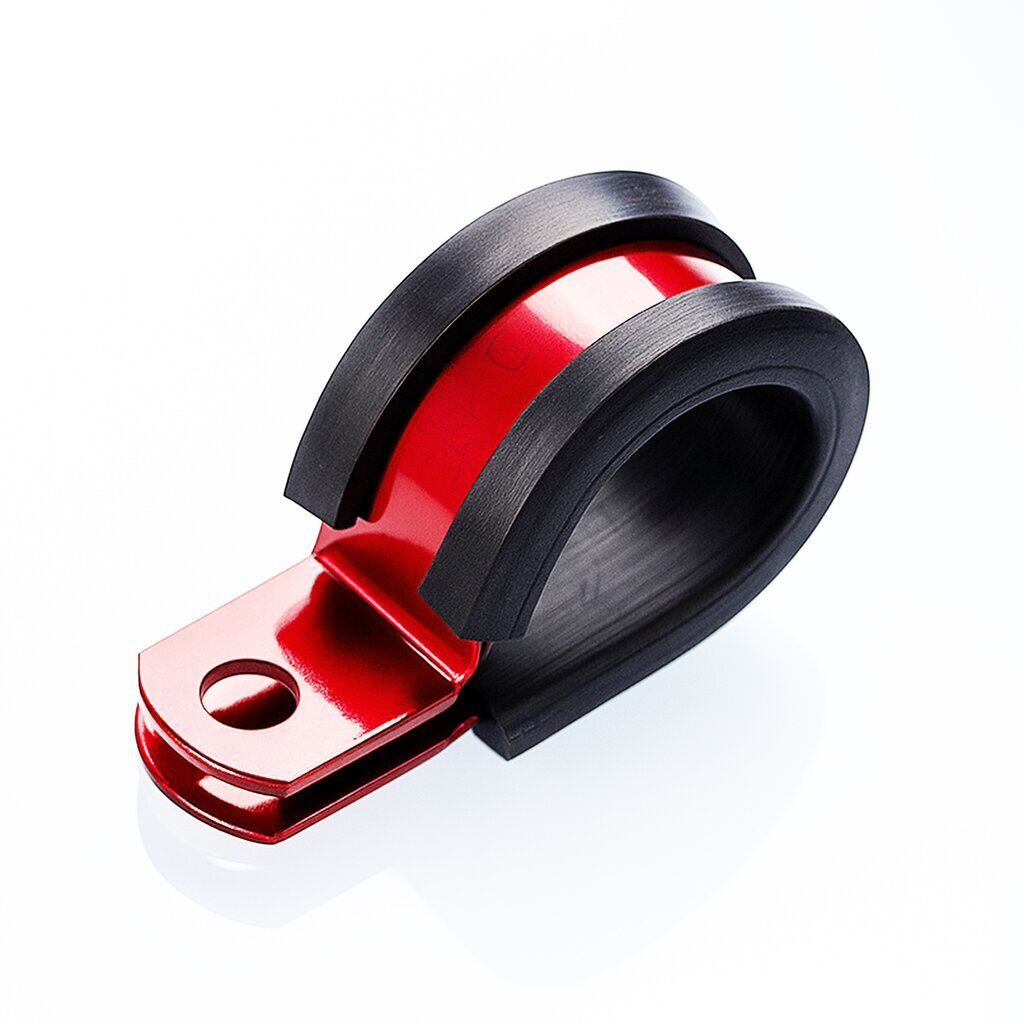

Arlows Agriculture Hose mounting clamp Ø42mm rubber lined Red
Arlows Hose mounting clamp Ø42mm rubber lined Red in agricultural equipment service; 1 component for a suitably engineered assembly.
This aluminium mounting clamp locates a suitable line at a defined mounting point. Select it using the actual outside diameter of the hose or tube. Mechanical support helps organise the routing; the clamp does not join two fluid carrying lines. In this service application, matching the existing line assembly is the main selection criterion. Offered version: Hose mounting clamp Ø42mm rubber lined Red.
SINGLE LINE SUPPORT
One clamp supports a single line at a defined mounting point.
MATCHING DIAMETER
Match the clamp size to the line outside diameter, including its cover.
ALUMINIUM
The clamp body is made from aluminium and mounts to a suitable structure.
RUBBER LINING
The internal rubber lining separates the line from the aluminium body and helps reduce chafing at the clamp.
Applications
- Agricultural machinery: a component for the mechanical support of matching hoses and tubes on tractors and harvesting machinery.
- Plan the routing around engine movement, maintenance access and machine cleaning.
- For custom assembly and maintenance; suitability depends on the complete assembly rather than a specific machine or engine model.
Technical data
| Brand | Arlows |
|---|---|
| Item number | JFK-AR3253-01 |
| Reference item number | AR3253 |
| Component | Hose mounting clamp |
| Material | Aluminium |
| Colour | Red |
| Stated support diameter | 42mm |
| Version | single, rubber lined |
| Connection or compatibility | Hose or tube with a matching outside diameter; the Dash designation alone does not replace a dimensional check. |
| Quantity supplied | 1 component |
Installation
- Measure the line outside diameter and match it to the stated clamp size.
- Choose a sound mounting point and align the line without kinks, allowing for movement.
- Install the clamp with suitable fasteners without crushing the hose.
- Check retention, clearance and potential chafing, then recheck after the first operating hours.
Scope of delivery
1 aluminium hose mounting clamp in the stated version; hose and mounting screws are not included.
Match clamp diameter, mounting point and movement allowance to the line; inspect the installation for chafing and crushing.
| Item number: | JFK-AR3253-01 |
