Description

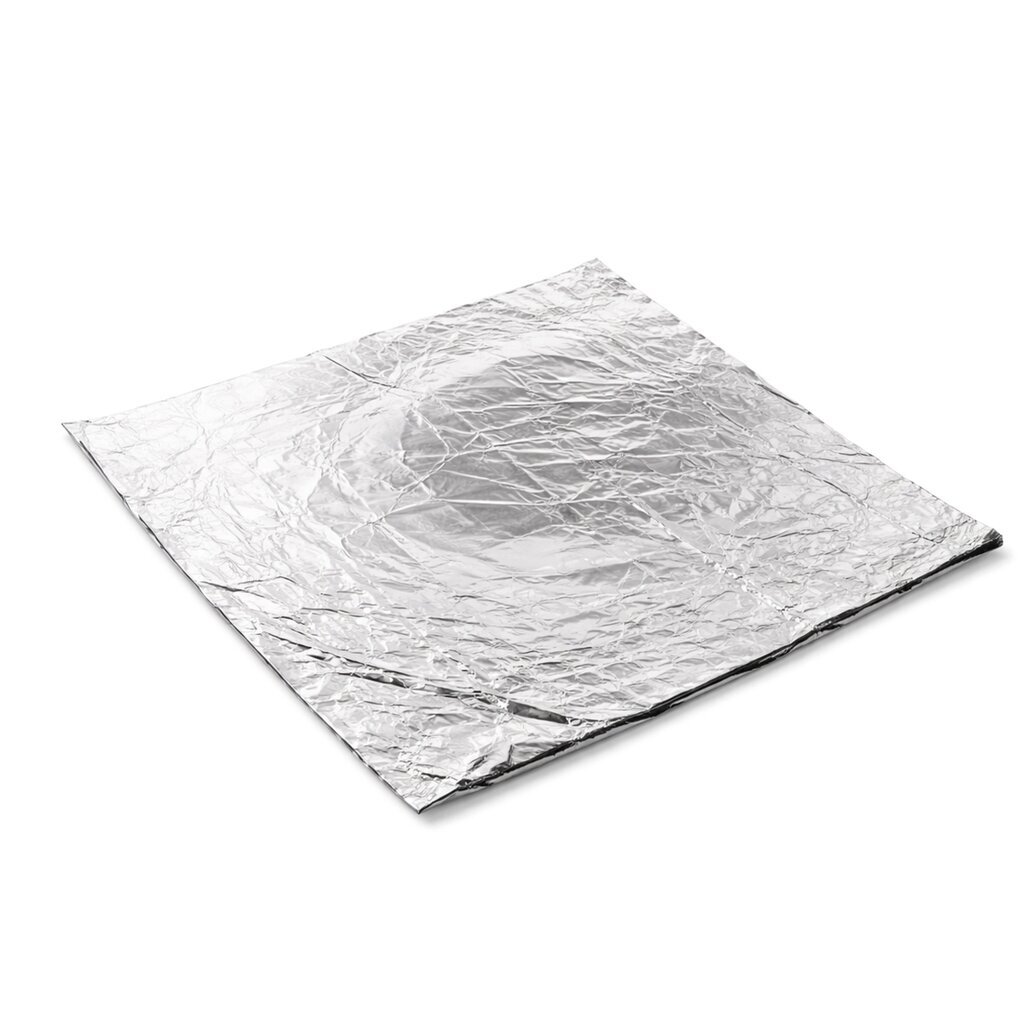

Arlows Heat Protection Mat ? 385 × 385 mm
More area. Thicker core. Same rule: heat stays outside.
Multi-layer mat 385 × 385 mm, 10 mm thick. Silicate fabric (Kevlar-titanium) inside, reflective face outside. For tunnels, firewalls, underbodies and cabins ? bond or rivet.
10 MM, NOT 6 MM
Thicker than the 320 mm sheet. More standoff between radiation and the panel ? noticeable on tunnels and floor pans.
400 °C / 1100 °C
Continuous reflection up to 400 °C, short-term up to 1100 °C. Front-to-back delta up to 80 °C.
385 × 385 MM
Square, approx. 0.15 m². One sheet for a seat base, tunnel field or underbody patch over cat/downpipe.
BOND OR RIVET
Bond large-area on clean metal. Under the floor and on vibration add rivets.
Use cases
- Automotive & motorsport: transmission tunnel, firewall, underbody over cat/downpipe, looms, fuel and vacuum lines
- Cabin: floor pan and tunnel from inside, where exhaust heat pushes upward
- Vans & commercial: seat base, extra battery, auxiliary heater, floor over the exhaust
- Marine & generators: bulkhead, machinery-space panel, routing next to a muffler
- Industry & workshop: housings, benches, sensors beside warm plant
- Classics: protect original panels and cabin heat without jumping to the 500 mm sheet
Technical data
- Part number: 2581
- Size: 385 × 385 mm (approx. 0.15 m²)
- Build: multi-layer · approx. 10 mm · silicate / Kevlar-titanium fabric + reflective face
- Fixing: self-adhesive and/or rivets
- Continuous reflection: up to 400 °C
- Short-term reflection: up to 1100 °C
- Temperature difference front/back: up to 80 °C
Fitment
Degrease and dry the surface. Reflective face toward the heat. Press on; rivet underbodies and vibrating panels. This is a shield ? it does not replace wrap on the manifold itself.
| Item number: | 2581 |
| Contents: | 0,20 m2 |
