Arlows PTFE Teflon Steel Flex Hose 1 Meter
PTFE inside. Stainless braid outside. Sold by the metre.
Highly flexible PTFE core with a stainless steel braid. For E85, petrol, diesel, methanol, oil and air. Stone chips and abrasion hit steel, not the core. Fittings sold separately, quantity = running metres.

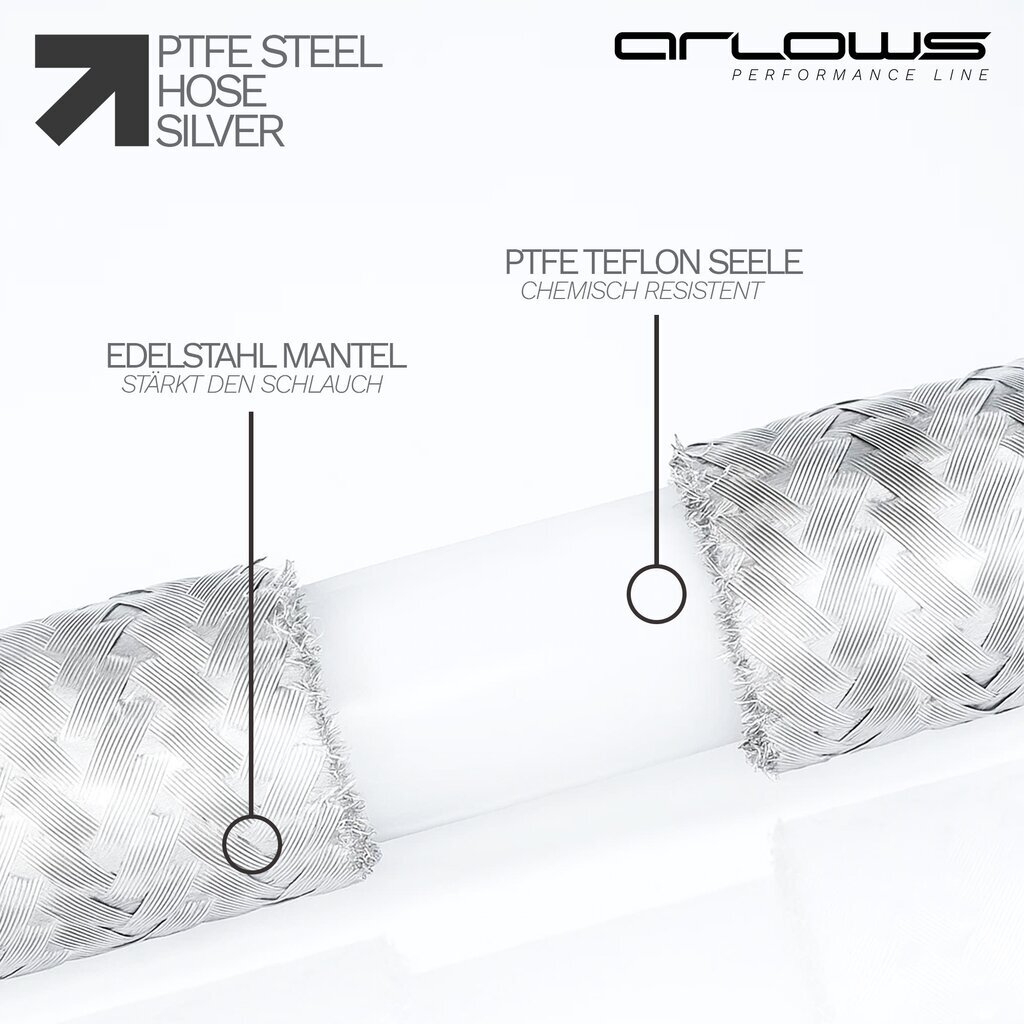

PTFE CORE
Teflon inside. Chemically inert, smooth, pressure stable. No swell from modern fuels.
STAINLESS BRAID
Silver steel jacket against chips, abrasion and UV. Tougher than the nylon braid on AR9107.
-50 °C TO +230 °C
Cold start to hot oil and fuel runs. 2900 PSI working pressure, burst up to 7000 PSI.
DASH 3 TO 16
Pick the size above. 1 metre per unit, set quantity to the length you need.
Use cases
- Fuel: feed and return, rail, E85, petrol, diesel, methanol
- Oil and hydraulics: oil cooler, catch can, power steering, pressure oil
- Air: boost, vacuum, pneumatic lines
- Automotive and motorsport: engine bay, underbody, visible steel flex look
- Van, marine, generator, industry: media lines with high abrasion
Technical data
| Dash | Thread | ID | OD | Working | Burst |
|---|---|---|---|---|---|
| Dash 4 | 7/16-20 UNF | 5.56 mm | 11.13 mm | 2900 PSI | 7000 PSI |
| Dash 6 | 9/16-18 UNF | 8.73 mm | 13.89 mm | 2900 PSI | 7000 PSI |
| Dash 8 | 3/4-16 UNF | 11.12 mm | 16.28 mm | 2900 PSI | 7000 PSI |
| Dash 10 | 7/8-14 UNF | 14.27 mm | 20.24 mm | 2900 PSI | 7000 PSI |
| Dash 12 | 1 1/16-12 UNF | 17.47 mm | 23.82 mm | 2900 PSI | 6000 PSI |
- Part number: AR9106
- Build: PTFE inner hose + stainless steel braid
- Temperature: -50 °C to +230 °C
- Variants: Dash 3, 4, 6, 8, 10, 12, 16
- Sold as: 1 metre per unit, quantity = running metres
- Fittings: PTFE AN fittings only, not included
Fitment
Cut the hose square, assemble with a PTFE fitting and olive per the fitting instructions. Use PTFE rated AN fittings only. The stainless braid is not heat wrap on a manifold. Cover cut wire ends with heat shrink or a cap.
| Item number: | AR9106 |
| Contents: | 1,00 m |
