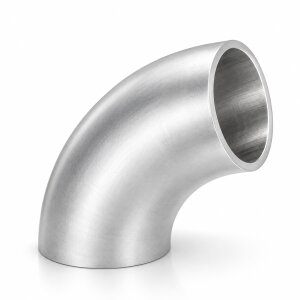

Arlows Aluminum Angle 90° Wide Radius (AlMgSi0,5 Aluminum Angle) 89mm

Arlows Aluminum Angle 90° Wide Radius (AlMgSi0,5 Aluminum Angle) 89mm

35,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	34,43 €*
3	33,72 €*
5	33,01 €*
10	31,94 €*

Arlows Aluminium tube bend 90° wide radius (AlMgSi0,5 Alu bow)

diameter

Available now!
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

90° · WIDE RADIUS

Arlows aluminium pipe bend 90° wide radius AlMgSi0.5

Wide 90° bend for smooth flow. Less turbulence, minimal pressure loss, weldable.
Mandrel bend in AlMgSi0.5 (EN AW-6060). The wide radius keeps the section open and reduces losses in the curve. 2 mm wall thickness consistent. Matches the Arlows straight tubes and other bends in the same alloy. Diameter is selected in the variant.

Why this bend?

WIDE RADIUS

Smooth transition. Less turbulence and pressure loss than tight bends. Ideal for maximum performance in charge air routing.

2 MM WALL

Consistent wall thickness. Light and sufficiently pressure resistant for charge air and intake. Example at 25 mm outer diameter.

WELDABLE

AlMgSi0.5 welds cleanly with TIG or MIG. Seamlessly formed from one piece. Laser etched Arlows logo.

SMOOTH

For custom piping where flow matters more than minimal space. Same alloy as the straight tubes.

Use cases

Charge air piping and charge pipe routing with low pressure loss
Intake tubes and cold air routing
Custom hard lines for water or oil coolers
Exhaust in motorsport (watch temperature range)
Not for fuel without material check

Technical data

Part number	AR8631
Material	Aluminium AlMgSi0.5 (EN AW-6060)
Angle	90°
Radius	wide radius (depends on diameter)
Wall thickness	2 mm consistent (example)
Diameter	see variant selection (outer diameter)
Processing	weld, saw, deburr

Fitment

Match the diameter to the mating part. Deburr the ends. Weld to Arlows straight tubes, cones or beaded ends. Connect with silicone hose and clamp (double wire or bolt clamp). Check direction and flow before tightening.
