Description

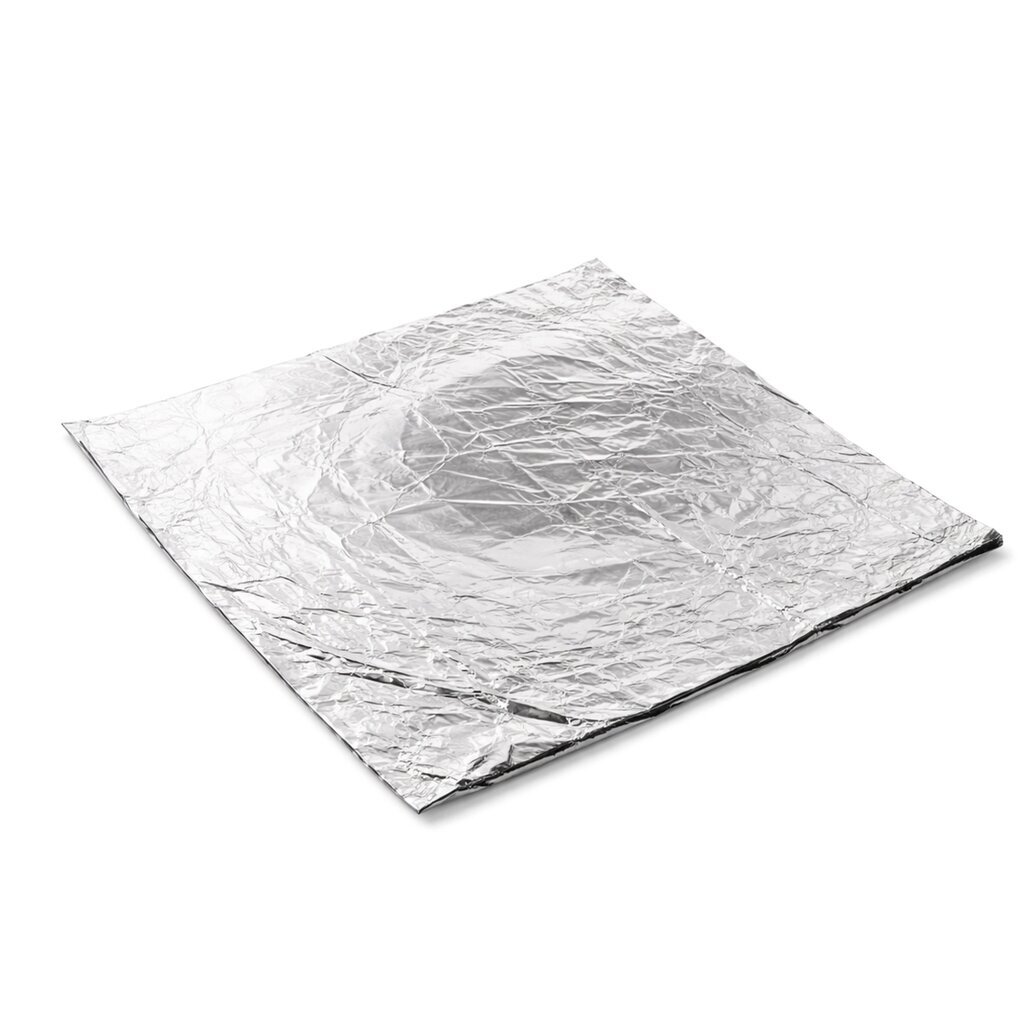

Arlows Heat Protection Mat – 770 × 385 mm
One strip. Nearly 80 cm. Fewer joints on the tunnel.
Multi-layer mat 770 × 385 mm, 6 mm thick. Silicate fabric (Kevlar-titanium) inside, reflective face outside. Built for long fields: transmission tunnel, underbody strip, firewall span – bond or rivet.
770 × 385 MM
Approx. 0.30 m² in a long format. One sheet instead of two squares. Fewer seams over the exhaust.
400 °C / 1100 °C
Continuous reflection up to 400 °C, short-term up to 1100 °C. Front-to-back delta up to 70 °C.
SILICATE + KEVLAR-TITANIUM
High-temperature fabric core, reflection toward the heat. Not soft foam.
BOND OR RIVET
Bond large-area on clean metal. Underbody and vibration: add rivets.
Use cases
- Automotive & motorsport: long transmission tunnel, underbody strip over cat/downpipe, firewall span, large loom runs
- Cabin: tunnel and floor pan from inside in one piece
- Vans & commercial: seat console lengthways, double floor, auxiliary heater, extra battery
- Marine & generators: long bulkhead or machinery-space runs next to the muffler
- Industry & workshop: cable fields and housing strips beside warm plant
- Classics: cover an original tunnel in one piece
Technical data
- Part number: 2583
- Size: 770 × 385 mm (approx. 0.30 m²)
- Build: multi-layer · approx. 6 mm · silicate / Kevlar-titanium fabric + reflective face
- Fixing: self-adhesive and/or rivets
- Continuous reflection: up to 400 °C
- Short-term reflection: up to 1100 °C
- Temperature difference front/back: up to 70 °C
Fitment
Degrease and dry the surface. Reflective face toward the heat. Lay it lengthways on the tunnel, press on, rivet underbodies. Cutting is fine. This is a shield – it does not replace wrap on the manifold itself.
| Item number: | 2583 |
| Contents: | 0,20 m2 |
