Description

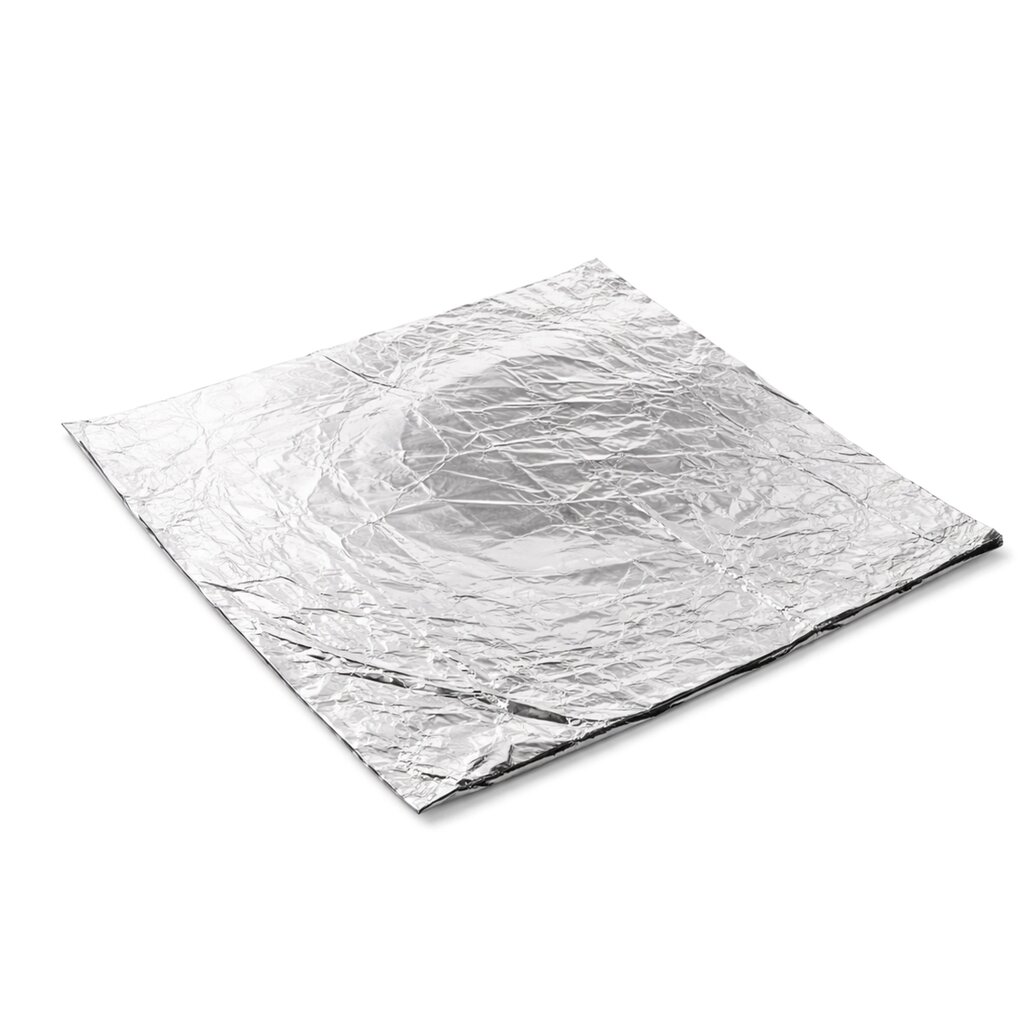

Arlows Heat Protection Mat – 500 × 500 mm
A quarter square metre of shield. One sheet instead of patches.
Multi-layer mat 500 × 500 mm, 6 mm thick. Silicate fabric (Kevlar-titanium) inside, reflective face outside. For large tunnel, firewall and underbody areas – bond or rivet.
500 × 500 MM
Approx. 0.25 m². Fewer joints, fewer gaps. One field instead of three small mats.
400 °C / 1100 °C
Continuous reflection up to 400 °C, short-term up to 1100 °C. Front-to-back delta up to 70 °C.
SILICATE + KEVLAR-TITANIUM
High-temperature fabric core, reflection facing the heat. Not soft foam.
BOND OR RIVET
Bond large-area on clean metal. Underbody and vibration: add rivets.
Use cases
- Automotive & motorsport: full tunnel section, firewall, underbody over cat/downpipe, large loom fields
- Cabin: floor pan and tunnel from inside, where exhaust heat pushes upward
- Vans & commercial: seat base, double floor, auxiliary heater, extra battery
- Marine & generators: bulkhead, machinery-space wall, routing field next to a muffler
- Industry & workshop: housings, benches, wide shields beside warm plant
- Classics: protect large original panels without HD sheet thickness
Technical data
- Part number: 2582
- Size: 500 × 500 mm (approx. 0.25 m²)
- Build: multi-layer · approx. 6 mm · silicate / Kevlar-titanium fabric + reflective face
- Fixing: self-adhesive and/or rivets
- Continuous reflection: up to 400 °C
- Short-term reflection: up to 1100 °C
- Temperature difference front/back: up to 70 °C
Fitment
Degrease and dry the surface. Reflective face toward the heat. Press on; rivet underbodies. Cutting is fine. This is a shield – it does not replace wrap on the manifold. For heavier sheet duty use HD 500 × 500 mm.
| Item number: | 2582 |
| Contents: | 0,20 m2 |
