ARLOWS ? OIL COOLING

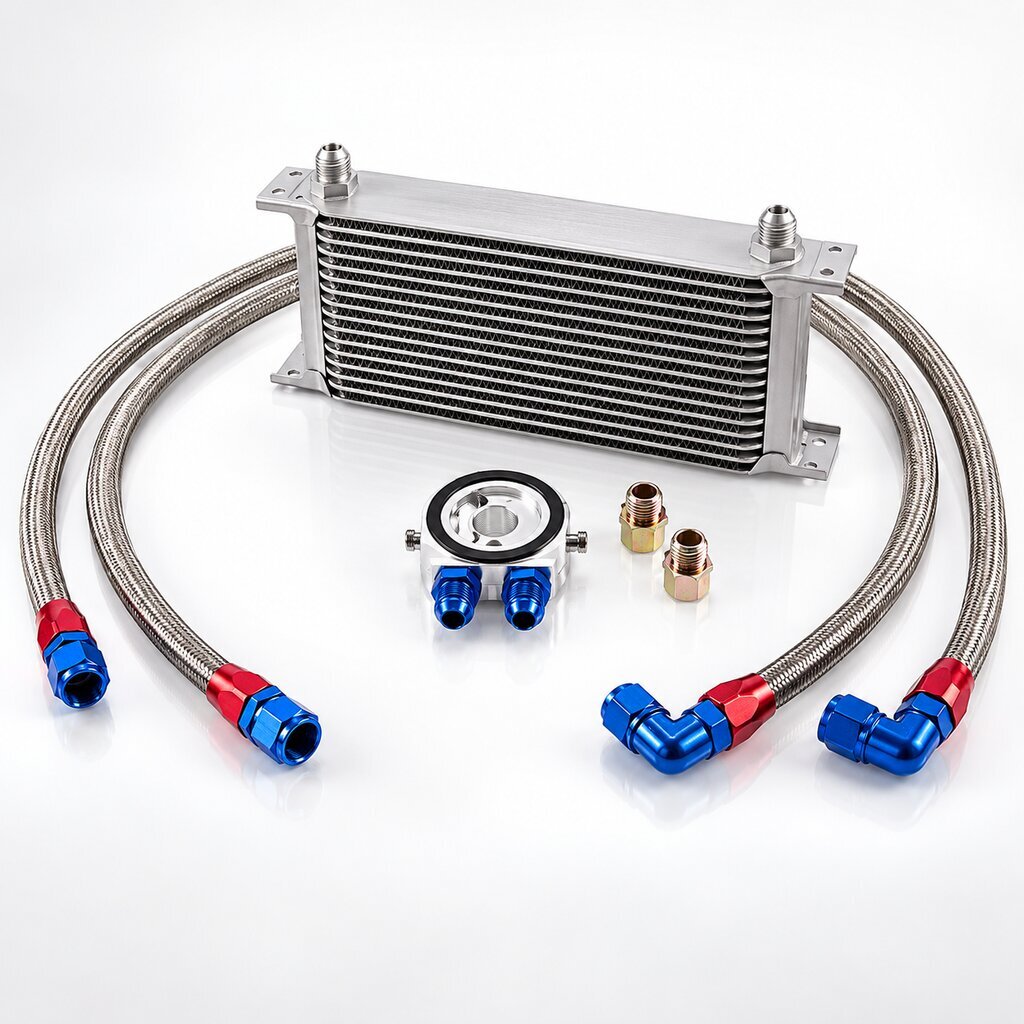

Arlows Oil Cooler Retrofit Kit ? 19-row with thermostat
Complete kit. Thermostat-controlled. Fits many vehicles.
This retrofit kit adds an auxiliary oil cooler ? including a 19-row cooler, two stainless-braided lines and an adapter flange with thermostat.
On tuned engines this is often essential: oil temperature can drop by up to 40 °C.
Why this kit?
19 ROWS
Compact all-aluminium cooler with a large cooling area ? mount it wherever there is space on the car.
THERMOSTAT
Starts opening at around 80 °C, fully open at 90 °C ? oil only reaches the cooler at operating temperature.
BRAIDED LINES
Two hoses (approx. 110 and 130 cm), can be shortened. Dash 8 / 3/4"-16 UNF, up to 30 bar and 160 °C.
ADAPTER FLANGE
Fits between the engine block and the oil filter. Matching bolt/adapter included.
Technical data
Oil cooler
- Overall length: 330 mm
- Height without fittings: 147 mm (19 rows)
- Depth: 50 mm
- Connection: Dash 8, 3/4"-16 UNF
Lines
- Stainless-steel braided
- Length: approx. 110 cm and 130 cm (can be shortened)
- Connection: Dash 8, 3/4"-16 UNF
- Outside diameter: approx. 20 mm
- Inside diameter: approx. 14 mm
- Working pressure: up to 30 bar
- Working temperature: up to 160 °C
Adapter plate
- Port 1: Dash 8
- Port 2: M20 × 1.5 and/or 3/4"-16
- Centre bore: 24 mm
- O-ring diameter on the plate: 65 mm
Installation note
The cooler can be mounted anywhere on the vehicle ? we recommend a rubber-isolated mount. The adapter plate goes between the block and the oil filter. The required bolt/adapter is in the kit.
Package contents
1× 19-row oil cooler, 2× stainless-braided lines, 1× adapter flange with thermostat, mounting bolt/adapter
| Item number: | 2534 |
| Thread: | Dash 8 |
