Description
WAGNER TUNING ? COMPETITION · NOW WITH TÜV

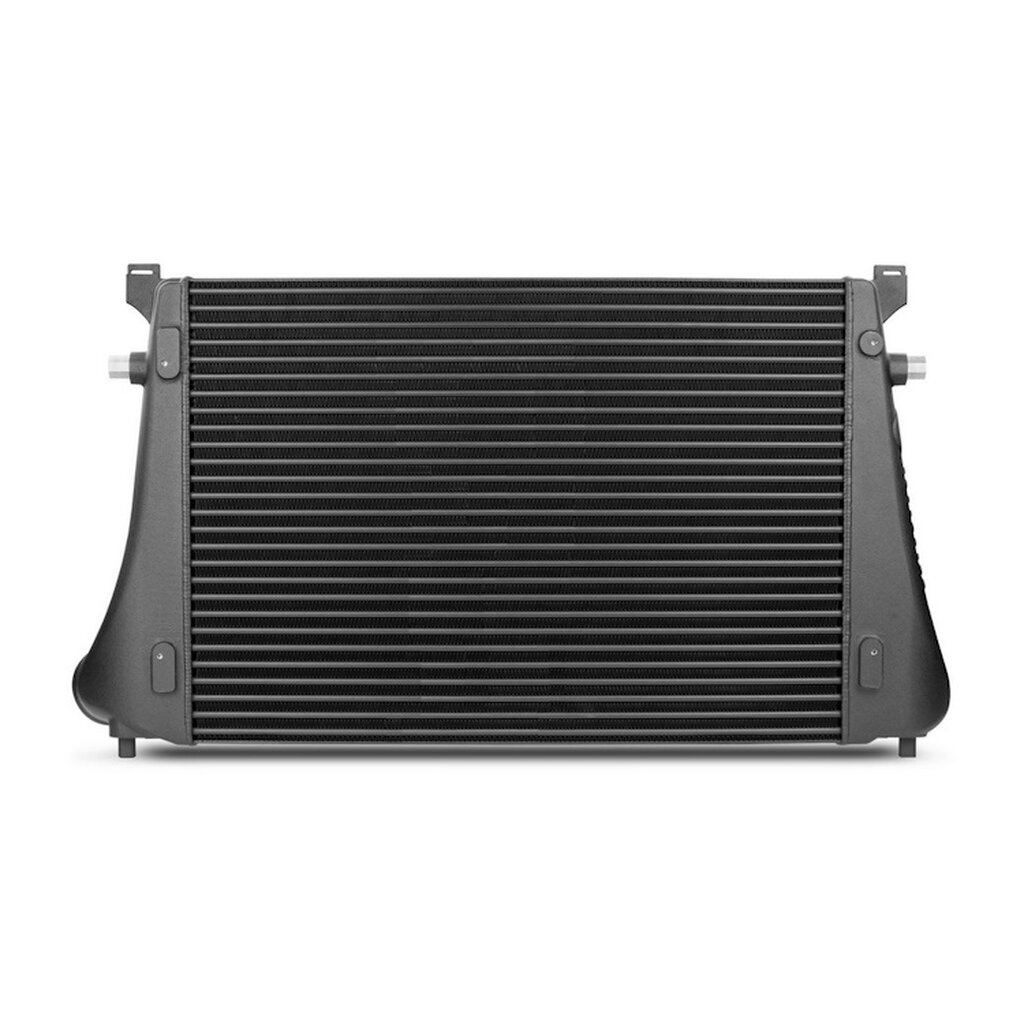

VW Golf 8 GTI / R / Audi S3 8Y Competition Intercooler ? Wagner Tuning
17.7 litres vs. 9. 57% less backpressure. TÜV parts certificate. The Wagner Tuning Competition kit for VAG 2.0 TSI EA888 Gen.4 is a 1:1 OEM replacement. Core 620 × 440 × 65 mm with 17.7 litres external volume versus 9 litres stock. Weight only 9.2 kg, inlet and outlet Ø70 mm.
Why this kit is the right choice for EA888 Gen.4
17.7 L VS. 9 L
Almost double the charge-air volume ? cooler, denser air and better cooling under load.
?57% BACKPRESSURE
Ø70 mm connections, CFD end tanks and an integrated air guide ? even core filling and far less restriction.
ONLY 9.2 KG
Competition tube-fin core stays light and still leaves airflow for the radiator behind it.
TÜV + PLUG & PLAY
Direct OEM swap. Parts certificate included. Anti-corrosion coating with high thermal conductivity.
Technical highlights
- Core dimensions: 620 × 440 × 65 mm
- External charge-air volume: 17.7 litres (OEM: 9 litres)
- Backpressure: 57% lower than stock
- Inlet / outlet: Ø70 mm
- Weight: 9.2 kg
- Competition tube-fin core
- Cast-aluminium end tanks, CAD/CFD-optimised, integrated air guide
- Heat-conductive anti-corrosion coating
- 1:1 replacement / plug & play
- TÜV parts certificate included
Fitment ? VAG 2.0 TSI EA888 Gen.4
Audi S3 8Y 2.0 TFSI 228 kW / 310 hp (from 10/2020, code DNFB)
Audi TT 8S 45 TSI 180 kW / 245 hp (from 10/2020, code DNPA)
Audi TTS 8S 235 kW / 320 hp (from 11/2020, code DNFD)
VW Golf 8 GTI 180 kW / 245 hp (from 08/2020, code DNPA)
VW Golf 8 GTI Clubsport 220 kW / 300 hp (from 10/2020, code DNFC)
VW Golf 8 R 235?245 kW / 320?333 hp (from 12/2020, code DNFG)
VW Passat B8 2.0 TSI 206 kW / 280 hp (from 11/2020, code DNFE)
VW Arteon 3H R 2.0 TSI 206?235 kW / 280?320 hp (from 12/2020, codes DNFE / DNFG)
VW T-Roc R 221 kW / 300 hp (from 10/2020, code DNFC)
Seat Leon IV KL Cupra 4Drive 228 kW / 310 hp (from 02/2021, code DNFB)
Cupra Formentor VZ 2.0 TSI 180 kW / 245 hp (from 03/2021, code DNPA)
Cupra Formentor VZ 2.0 TSI 228 kW / 310 hp (from 11/2020, code DNFB)
?koda Octavia RS 2.0 TSI 180 kW / 245 hp (from 09/2020, code DNPA)
?koda Superb 2.0 TSI 206 kW / 280 hp (from 11/2020, code DNFE)
Part number: 200001178
Package contents

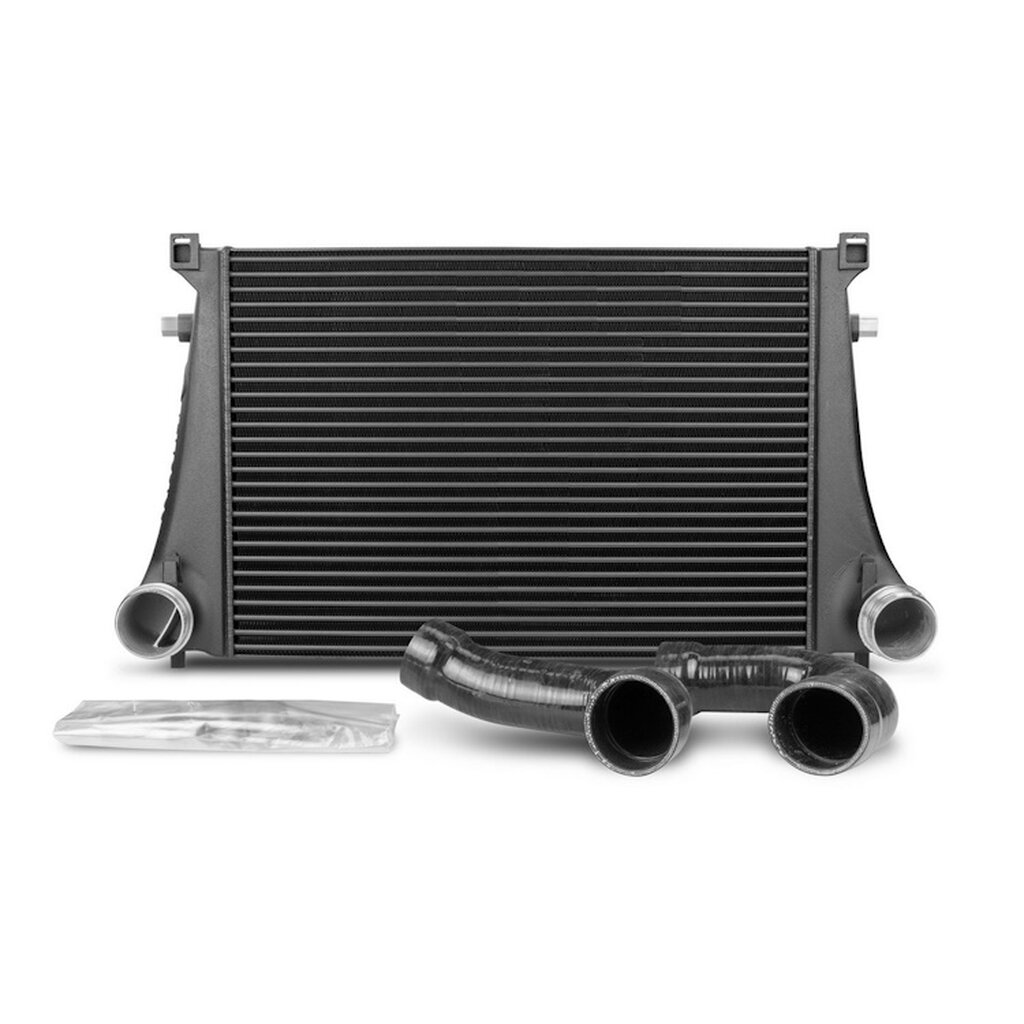

1× intercooler, 2× silicone hoses, 4× hose clamps, mounting hardware, installation instructions + TÜV parts certificate
