Fiat 500 Abarth 1.4 T Competition Intercooler Kit ? Wagner Tuning

One front-mounted cooler instead of two side coolers. More volume. Sharper response. The Wagner Tuning Competition intercooler kit for the Fiat 500 Abarth 1.4 Turbo replaces both factory side coolers with a single front-mounted competition tube-fin core. Result: +131% more core volume (9.8 L vs. 4.3 L) and +85% frontal area (1227 cm² vs. 665 cm²) ? plus a shorter charge-air path and lower backpressure.

Why this kit is the right choice for the Abarth

Technical highlights

• Competition tube-fin core: 600 × 204.6 × 80 mm
• Core volume: 9.8 litres (+131% vs. OEM 4.3 L)
• Frontal area: 1227 cm² (+85% vs. OEM 665 cm²)
• One front cooler replaces both OEM side coolers
• CAD-designed, CFD-optimised cast aluminium end tanks
• Elliptical hose connection at the outlet
• Heat-conductive anti-corrosion coating (black)
• Includes black-coated cross member and silicone hoses

OEM vs. Wagner Tuning

• OEM (2×): 190 × 175 × 64 mm · 4.3 L · 665 cm²
• Wagner Tuning: 600 × 204.6 × 80 mm · 9.8 L · 1227 cm²

Fitment

Fiat 500 Abarth 1.4 Turbo 99 kW / 135 hp (from 2008)

Not plug & play on US models.

Wagner part number: 200001109

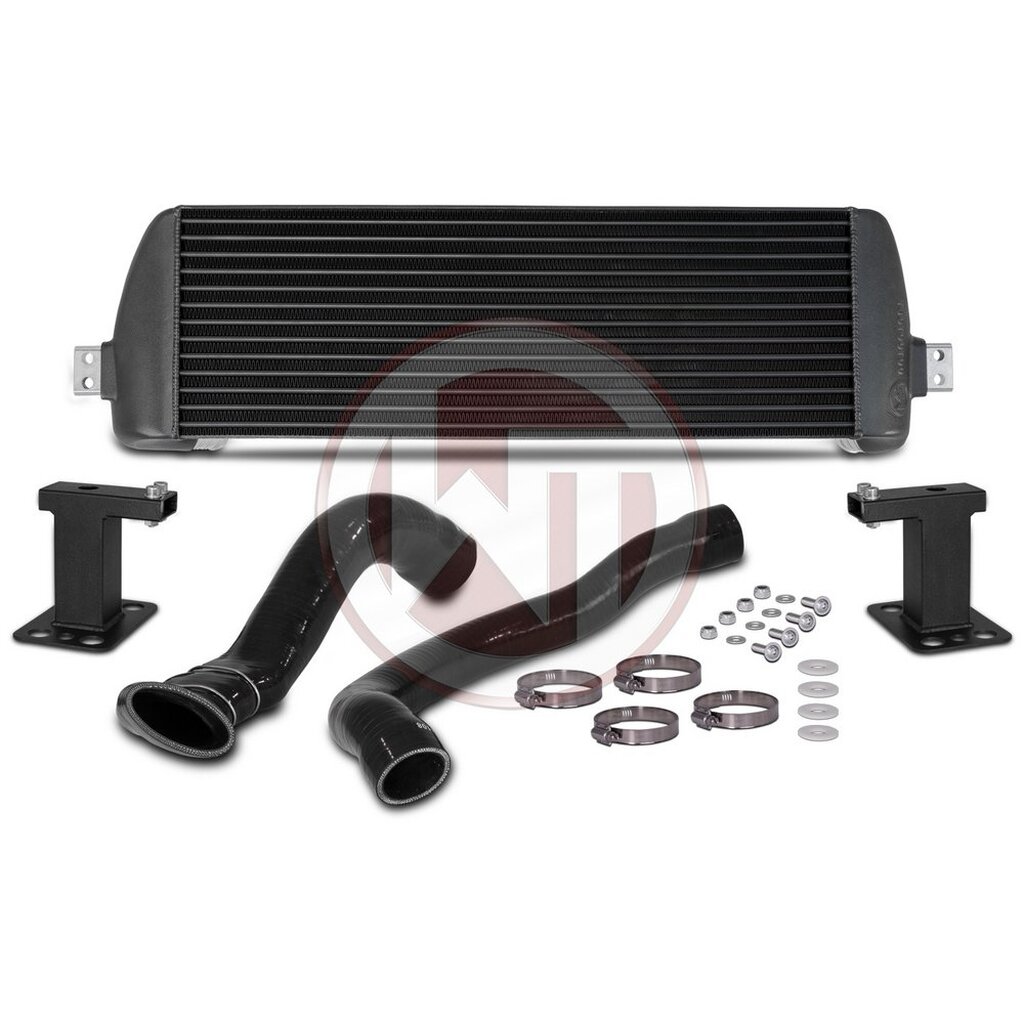

Package contents

1× intercooler (black coated), 1× cross member (black coated), 2× silicone hoses (black), mounting hardware, installation instructions

Availability note: In some cases the item is not in stock and is ordered directly from the manufacturer ? delivery may then take 1?2 additional working days.

Not approved for use on public roads under StVZO (German road traffic regulations).
