Description

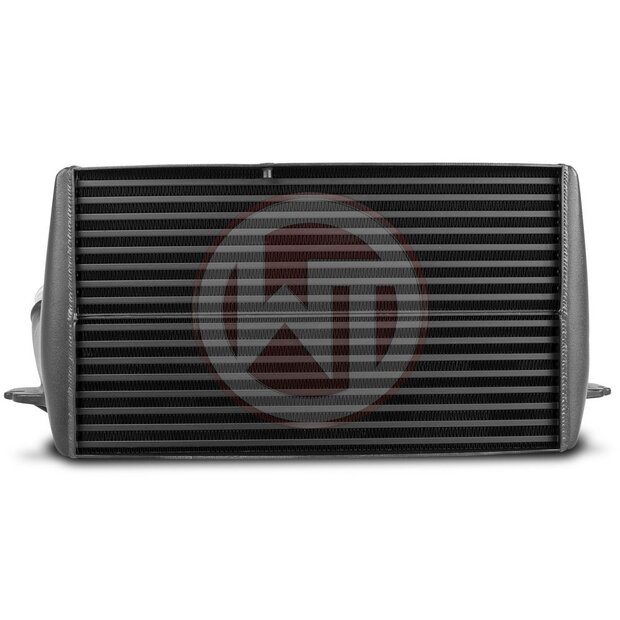

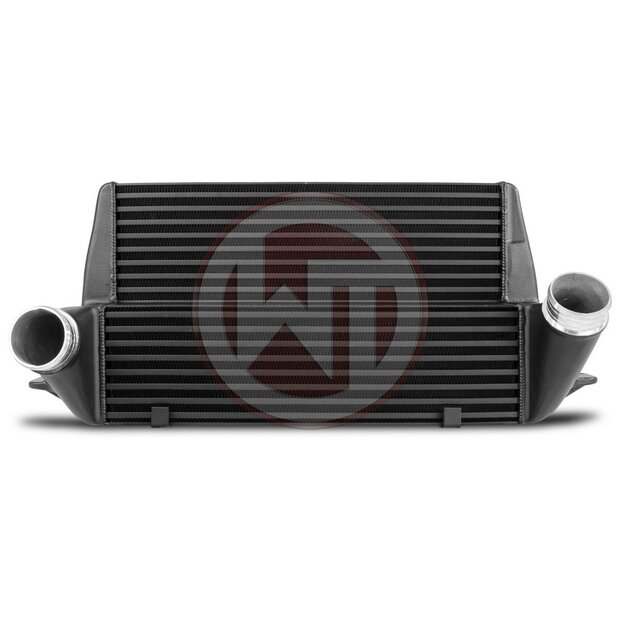

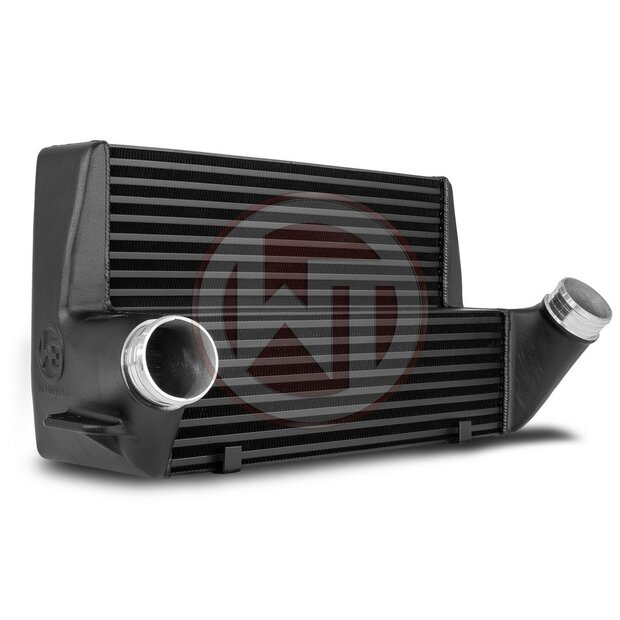

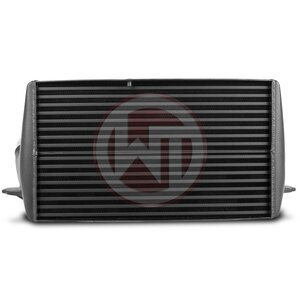

Competition Intercooler Kit EVO3 for BMW E82 E90
The high performance intercooler has the net dimensions 510mm x 303mm x 180mm (stepped 20,65L) and thus offers a 162% larger flow area, as well as 182% more charge air volume compared to the original intercooler. The Competition high performance mesh is a high quality Tube Fin mesh with internal turbulators. Despite its size, the total weight of the intercooler is only 13.2kg. The end boxes of the intercooler are made of cast aluminum and have been optimized using flow analysis in the CFD system. The intercooler kit EVO3 was developed directly for the high demands of the large tuning stages on the BMW 135i and 335i. The original click connections were eliminated and the connection diameters at the inlet and outlet were expanded to Ø70mm. Therefore, the kit includes two reinforced silicone hoses. The result is excellent cooling properties with the lowest back pressure. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees long-lasting and optimum cooling with a significant increase in performance. Complete ready-to-install kit, simply replace with stock intercooler - due to the extreme size, minor adjustments to the radiator support are necessary. Tested up to 6 bar and pressure stable. All our products are subject to constant qualitative monitoring. Suitable for racing.
The intercooler kit EVO III Competition fits the following vehicles with N54 & N55 engines:
BMW 335 (x)i E90/E91/E92/93 2006-2011 (without ACC)
BMW 335is E92 2009-2013 (without ACC)
BMW 135i E82/E88 2007-2013 (without ACC)
BMW 1erM E82 2011-2013 (without ACC)

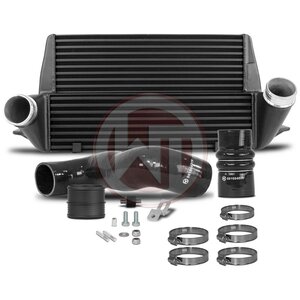

Scope of delivery:
1 intercooler
2 silicone hoses
1 aluminum adapter
1 mounting material
1 assembly instruction
| Item number: | AR12284 |
