Description

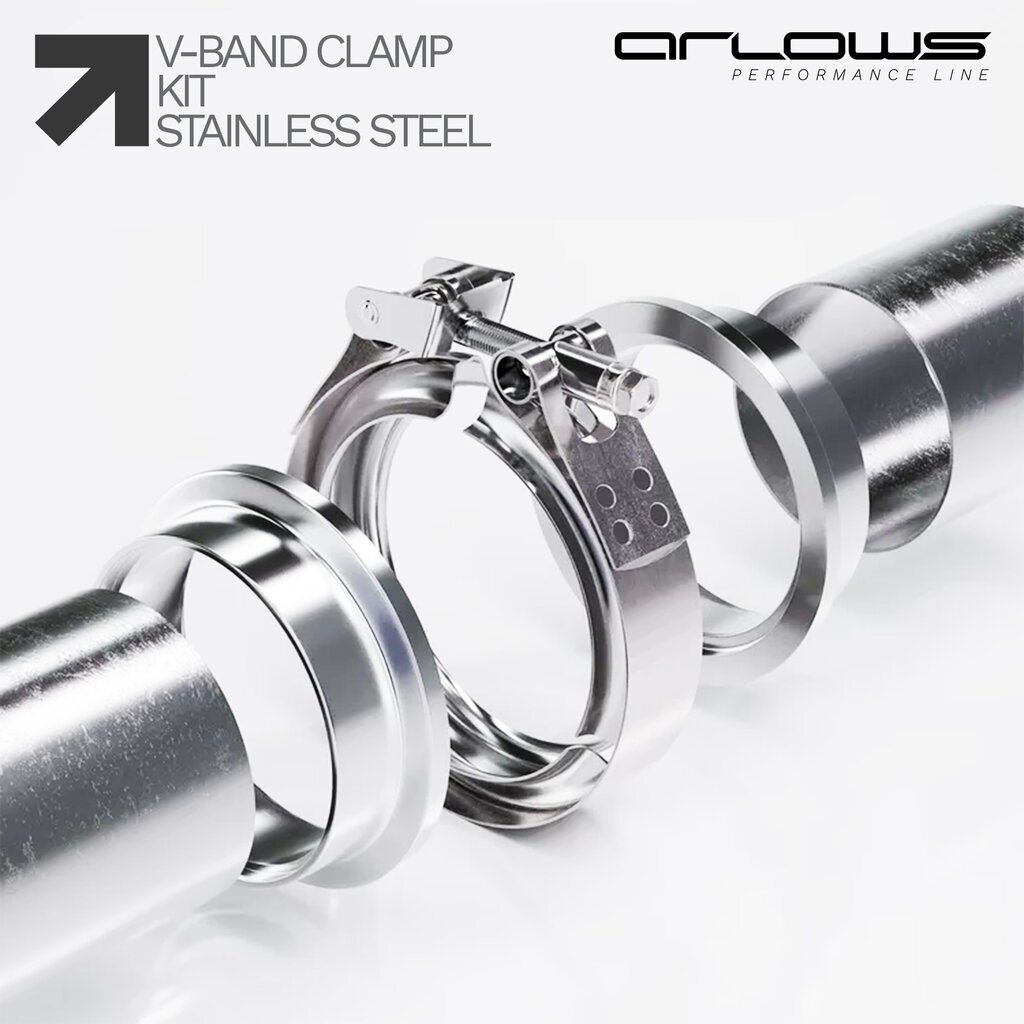

These are 2 welded rings, intended for 76 mm stainless steel tubes.
This high-end variant is "self-centering ".
In this variant, there is a male and a female flange, which are centered through a centering nut.
The welded rings are fitted with a phase, in which the 76mm stainless steel tube is inserted for mounting.
Afterwards the flange and tube are welded on the inside as well as on the outside.
So there are no problems with wrong fitted or distorted flanges.
The internal diameter of the flange is then equal to the inner diameter of the pipe, so that no current unfavorable edges may occur.
Dimensions:
Inner diameter weld-on ring external: 3 "/ 76 mm
The phase depth: 7mm
Inner diameter weld-on ring inside: 72, 1 mm
Thick pro weld-on ring: 15 mm
| Item number: | AR7433 |
| Diameter: | Ø 89mm / 3,5" |
