Description

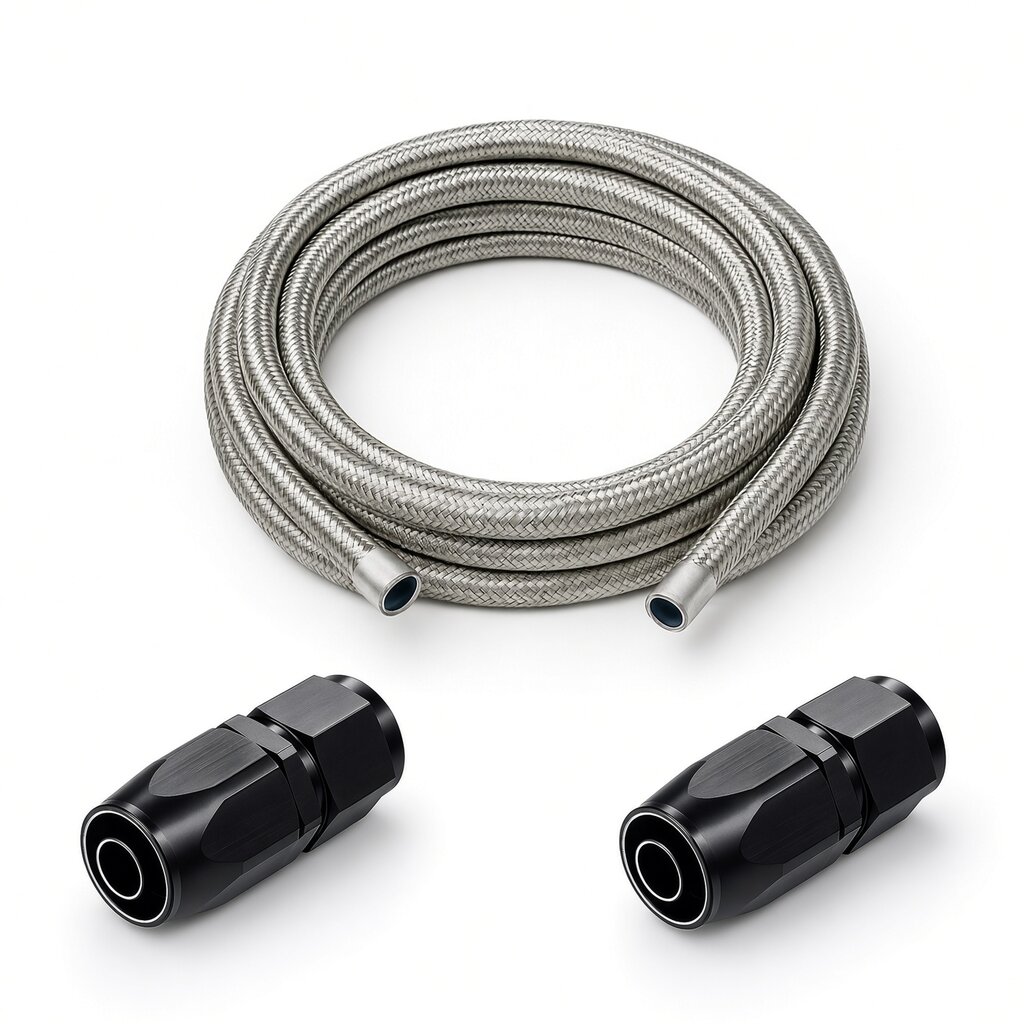

Arlows steel braided hose set Dash 8 black, 1 metre, 2x straight. Hose and aluminium AN fittings in one size, for self-assembly. Fittings are anodized aluminium, the hose is the steel braided hose.
Your advantages at a glance
- Matched set instead of separate parts - Dash 8 throughout
- Steel braided hose with anodized aluminium fittings in black
- 1 metre of hose, packed as one set
- Straight ends for a direct connection.
- Not for push-on rubber hose and not for PTFE
Scope of delivery
- 1x AR0250-1 - Arlows 1 Meter Stahlflexschlauch Dash 8 ( 3/4 - 16 UNF )
- 1x AR1831-1 - Arlows Alu Dash Fitting - gerade - Schwarz Dash 8 ( 3/4 - 16 UNF )
- 1x AR1831-1 - Arlows Alu Dash Fitting - gerade - Schwarz Dash 8 ( 3/4 - 16 UNF )
Technical data
- System: Steel braid / AN Dash
- Dash: Dash 8
- Port thread: 3/4-16 UNF
- Fitting colour: Black
- Angle: 2x straight
- Hose length: 1 metre
- Nominal inner diameter: 11.12 mm
- Nominal fitting outer diameter: 16.28 mm
- Fitting material: Aluminium, anodized
- Hose: Steel braided hose
- Supply condition: Set, self-assembly
Assembly
The set is supplied unassembled. Hose and fittings are the same Dash size. Colour refers to the fittings. Do not mix with push-on or PTFE fittings.
Not included
- Adapters, clamps, sealant
- Push-on or PTFE hose
- Extra angles or a second hose length
| Item number: | AR12878 |
