Description

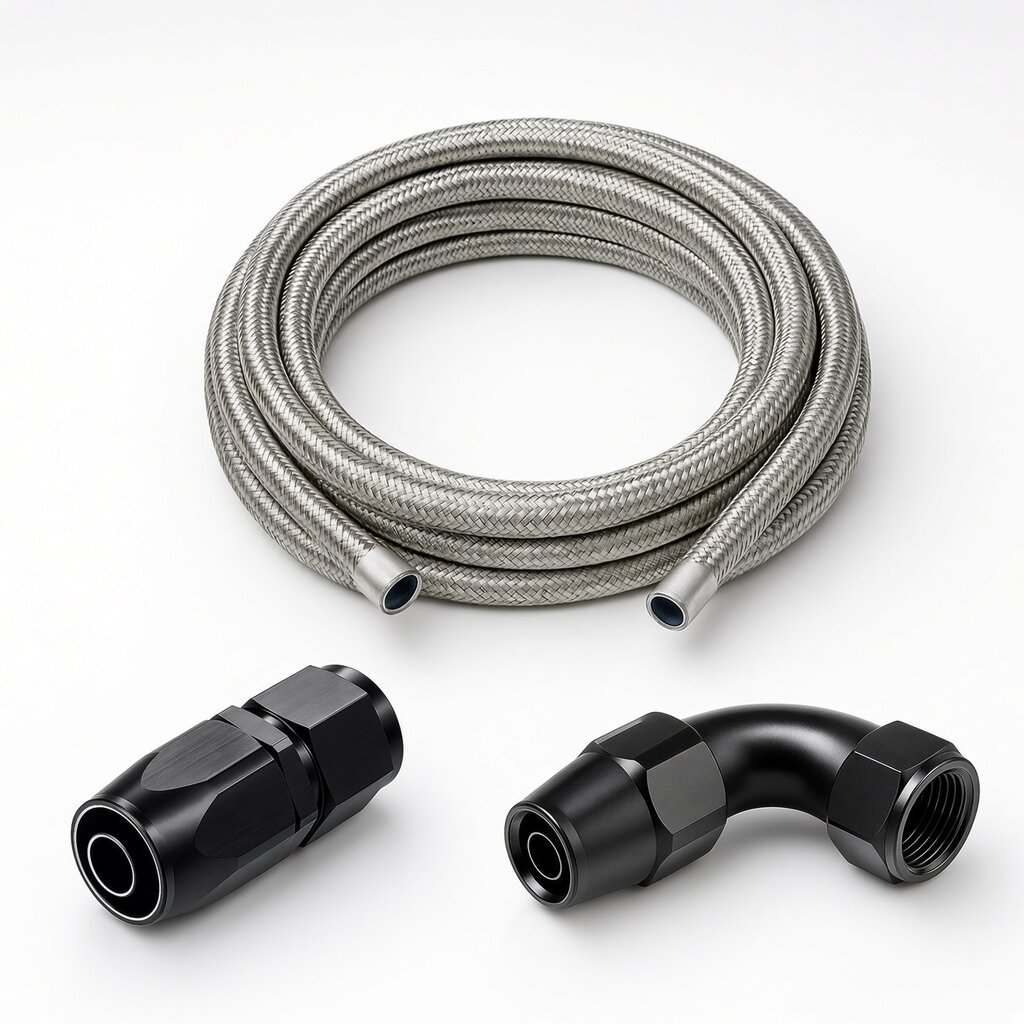

Arlows steel braided hose set Dash 4 black, 1 metre, 90° and straight. Hose and aluminium AN fittings in one size, for self-assembly. Fittings are anodized aluminium, the hose is the steel braided hose.
Your advantages at a glance
- Matched set instead of separate parts - Dash 4 throughout
- Steel braided hose with anodized aluminium fittings in black
- 1 metre of hose, packed as one set
- The 90° end turns the line around a corner, the straight end sits on the port.
- Not for push-on rubber hose and not for PTFE
Scope of delivery
- 1x AR0248-1 - Arlows 1 Meter Stahlflexschlauch Dash 4 ( 7/16 - 20 UNF )
- 1x AR1822-1 - Arlows Alu Dash Fitting - gerade - Schwarz Dash 4 ( 7/16 - 20 UNF )
- 1x AR1824-1 - Arlows Alu Dash Fitting - 90° - Schwarz Dash 4 ( 7/16 - 20 UNF )
Technical data
- System: Steel braid / AN Dash
- Dash: Dash 4
- Port thread: 7/16-20 UNF
- Fitting colour: Black
- Angle: 90° and straight
- Hose length: 1 metre
- Nominal inner diameter: 5.56 mm
- Nominal fitting outer diameter: 11.13 mm
- Fitting material: Aluminium, anodized
- Hose: Steel braided hose
- Supply condition: Set, self-assembly
Assembly
The set is supplied unassembled. Hose and fittings are the same Dash size. Colour refers to the fittings. Do not mix with push-on or PTFE fittings.
Not included
- Adapters, clamps, sealant
- Push-on or PTFE hose
- Extra angles or a second hose length
| Item number: | AR12871 |
