Description
PUSH ON 180° AR8381
Arlows Push On Aluminium AN Dash Fitting 180°
Push on. Full reverse. The rubber does not kink.

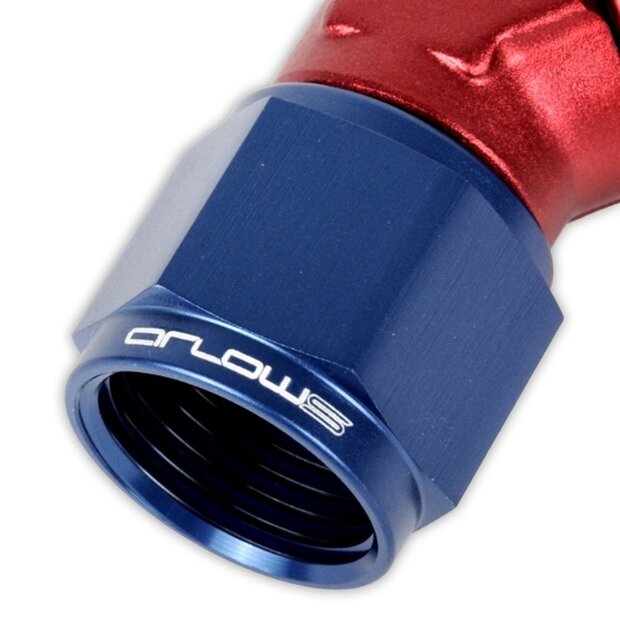

Anodized aluminium fitting with a push on barb and a 180° body. For Dash rubber hose, not for steel flex and not for PTFE. Pick Dash size above. AN thread on the port side, hose slides on the barb without a clamp. The line comes back parallel without folding the hose itself.
PUSH ON
Slide the hose onto the barb. No crimp, no olive, no clamp.
180° TURN
A full reverse at the fitting. Less bend radius and less stress in the rubber.
ANODIZED ALU
Light, corrosion resistant, race look. Pick colour above.
AN DASH
AN thread to the block, filter or adapter. Size must match the rubber hose.
Use cases
- Fuel and oil: rail, filter, catch can with a return at the same point
- Air: vacuum, breather, blow off, when the stub faces a wall
- Tight bay: port against a wall, the line has to come straight back
- Not for: PTFE Teflon AR9106 / AR9107 and classic steel flex AR8394
Technical data
| Dash | Thread | ID | OD |
|---|---|---|---|
| Dash 4 | 7/16-20 UNF | 5.56 mm | 11.13 mm |
| Dash 6 | 9/16-18 UNF | 8.73 mm | 13.89 mm |
| Dash 8 | 3/4-16 UNF | 11.12 mm | 16.28 mm |
| Dash 10 | 7/8-14 UNF | 14.27 mm | 20.24 mm |
| Dash 12 | 1 1/16-12 UNF | 17.47 mm | 23.82 mm |
| Dash 16 | 1 5/16-12 UNF | 22.20 mm | 30.50 mm |
| Dash 20 | 1 5/8-12 UNF | 28.50 mm | 35.81 mm |
- Part number: AR8381
- Material: aluminium, anodized
- Angle: 180°
- Hose: Dash rubber / push on hose
- Not for: steel flex AR8394, PTFE AR9106 / AR9107
- Sister parts: straight AR8377, 45° AR8378, 90° AR8379, 135° AR8380
Fitment
Cut the hose square, wet the barb lightly, push the hose on to the stop. Dash size must match hose and counterpart. Push On holds on the barb, no hose clamp. For high pressure, hot oil or E85 switch to steel flex or PTFE. Straight, 45°, 90° and 135° are separate items.
