ALU AN 45° AR8371

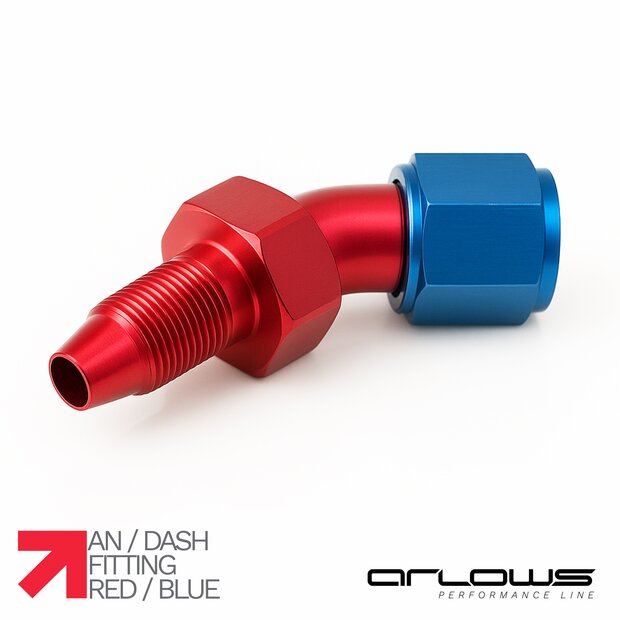

Arlows Aluminium AN Dash Fitting 45°
The working angle. Save space without a 90°.
Anodized aluminium fitting with a 45° body for classic steel braided hose. Black or blue, Dash 4 to Dash 20. For fuel, oil, cooling and hydraulics. For PTFE hose use PTFE fittings.
45° ANGLE
Standard turn in the bay. Less hose stress than a hard 90° kink.
ANODIZED ALU
Light, corrosion resistant, race look. Pick colour above: black or blue.
AN DASH
Fits common steel flex. Pick size above, threads in the table.
TIGHT BAY
At the cooler, rail and block, where straight will not sit and 90° swings too far.
Use cases
- Fuel and oil: feed, return, oil cooler, catch can
- Cooling and hydraulics: stubs that leave the part at an angle
- Car, van, motorsport: clean routing without hose pinch at the fitting
Technical data
| Dash | Thread | ID | OD |
|---|---|---|---|
| Dash 4 | 7/16-20 UNF | 5.56 mm | 11.13 mm |
| Dash 6 | 9/16-18 UNF | 8.73 mm | 13.89 mm |
| Dash 8 | 3/4-16 UNF | 11.12 mm | 16.28 mm |
| Dash 10 | 7/8-14 UNF | 14.27 mm | 20.24 mm |
| Dash 12 | 1 1/16-12 UNF | 17.47 mm | 23.82 mm |
| Dash 16 | 1 5/16-12 UNF | 22.20 mm | 30.50 mm |
| Dash 20 | 1 5/8-12 UNF | 28.50 mm | 35.81 mm |
- Part number: AR8371
- Material: aluminium, anodized
- Colours: black, blue
- Angle: 45°
- Hose: classic steel flex AR8394, not PTFE core
Fitment
Cut the hose square, assemble the fitting per the instructions. Dash size must match hose and counterpart. For PTFE Teflon hose (AR9106 / AR9107) use PTFE fittings. Straight, 30°, 90° and 180° are separate items.
