Description
ARLOWS · AR7523

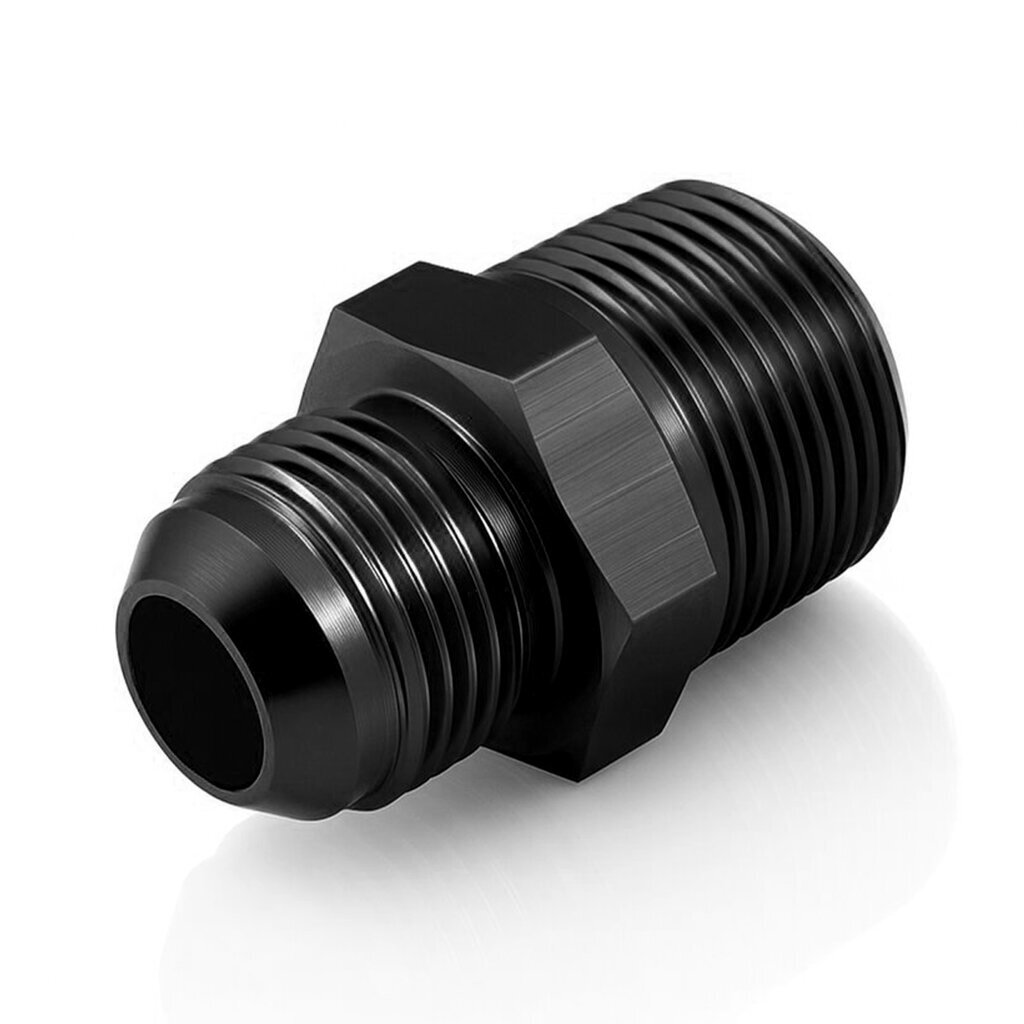

Arlows Adapter 7/8 - 14 UNF ( Dash 10 ) to Dash 6 ( Screw-in adapter ) Black
Join a UNF port to an AN flare connection.
This adapter combines a male UNF thread with a sealing face below the hexagon and a male AN connection with a conical sealing face. It joins two different connection geometries. This version: Thread 1: 7/8 - 14 UNF ( Dash 10 ) male. Thread 2: Dash 6 male.
Benefits at a glance
TWO SEALING GEOMETRIES
The port side and AN side are designed for different sealing faces.
CHECK EACH THREAD
Both connections are listed individually to help avoid mismatches.
Technical specifications
| Thread 1 | 7/8 - 14 UNF ( Dash 10 ) male |
|---|---|
| Thread 2 | Dash 6 male |
| Material | Aluminium |
| Colour | Black anodised |
| SKU | AR7523 |
Applications
For compatible UNF ports designed to seal below the hexagon and a matching AN fitting on the other side.
Installation & notes
Install metric or straight port threads with the seal required by the sealing face. Thread tape does not replace that seal. Clean and inspect the threads and sealing faces. AN/Dash flare fittings seal on the matching conical face; do not use thread tape on that connection. Use suitable tools to hold the mating part, route lines without strain and check the completed assembly for leaks. Follow the component manufacturer?s tightening instructions.
Common question
Is this automatically an ORB adapter?
The product information describes a sealing face below the hexagon. Confirm the exact seal type and port geometry rather than assuming that it is ORB.
Complete your line assembly
Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.
