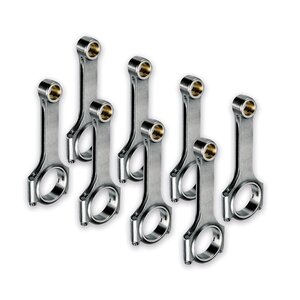

ARLOWS AUDI RS6 C5 8X STEEL CONNECTING ROD SET 154MM 4.2L BITURBO (H-BEAM)
Light. Extremely strong. Precision engineered.
Your upgrade for maximum engine performance.
Building your Audi RS6 C5 4.2L BiTurbo engine for the racetrack or high performance? Then you need connecting rods you can rely on 100 %. The Arlows 8x Steel Connecting Rod Set 154mm 4.2L BiTurbo (H-Beam) made of high-quality 4340 steel (40CrNiMoA) is exactly the part trusted by professionals in motorsport, tuning and custom builds.
The optimized H-beam design delivers maximum stability at minimum weight. Forged, 3D-designed, CNC-machined, hardened and shot-peened ? perfect for high-revving engines. With bronze piston pin bushings, ultra-strong Pro-Series 14.9 bolts and extremely tight tolerances, you?re perfectly equipped for power levels far beyond stock.
Your advantages at a glance:
- Fits Audi RS6 C5 4.2L BiTurbo (BCY / BRV)
- Forged from 4340 steel (40CrNiMoA) and CNC-machined
- H-beam for maximum stability at minimum weight
- 3D-designed & CNC-machined for optimal load distribution
- Hardened to HRC 35-38 + shot-peened
- Bronze piston pin bushings with lubrication hole
- High-strength Pro-Series 14.9 bolts (1490 N/mm² tensile strength)
- Rolled threads ? 30 % stronger flank strength
- Tight tolerances (±0.004 mm) and weight-matched (±1 g)
Technical Specifications
| Parameter | Value |
|---|---|
| Fits | Audi RS6 C5 4.2L BiTurbo (BCY / BRV) |
| Length | 154 mm |
| Piston pin bore | 21 mm |
| Material | 4340 Steel (40CrNiMoA) |
| Tensile strength | > 1250 N/mm² |
| Max. RPM | up to 9,000 rpm |
| Load capacity | approx. 150 HP per rod |
| Bolts | 3/8"-24 |
