Description
Arlows PTFE Teflon Nylon Steel Flex Hose 1 Meter
PTFE inside. Nylon outside. Sold by the metre.
Highly flexible PTFE core with a black nylon braid. For E85, petrol, diesel, methanol, oil and air. Stone chips, abrasion and UV stay outside. Fittings sold separately, quantity = running metres.

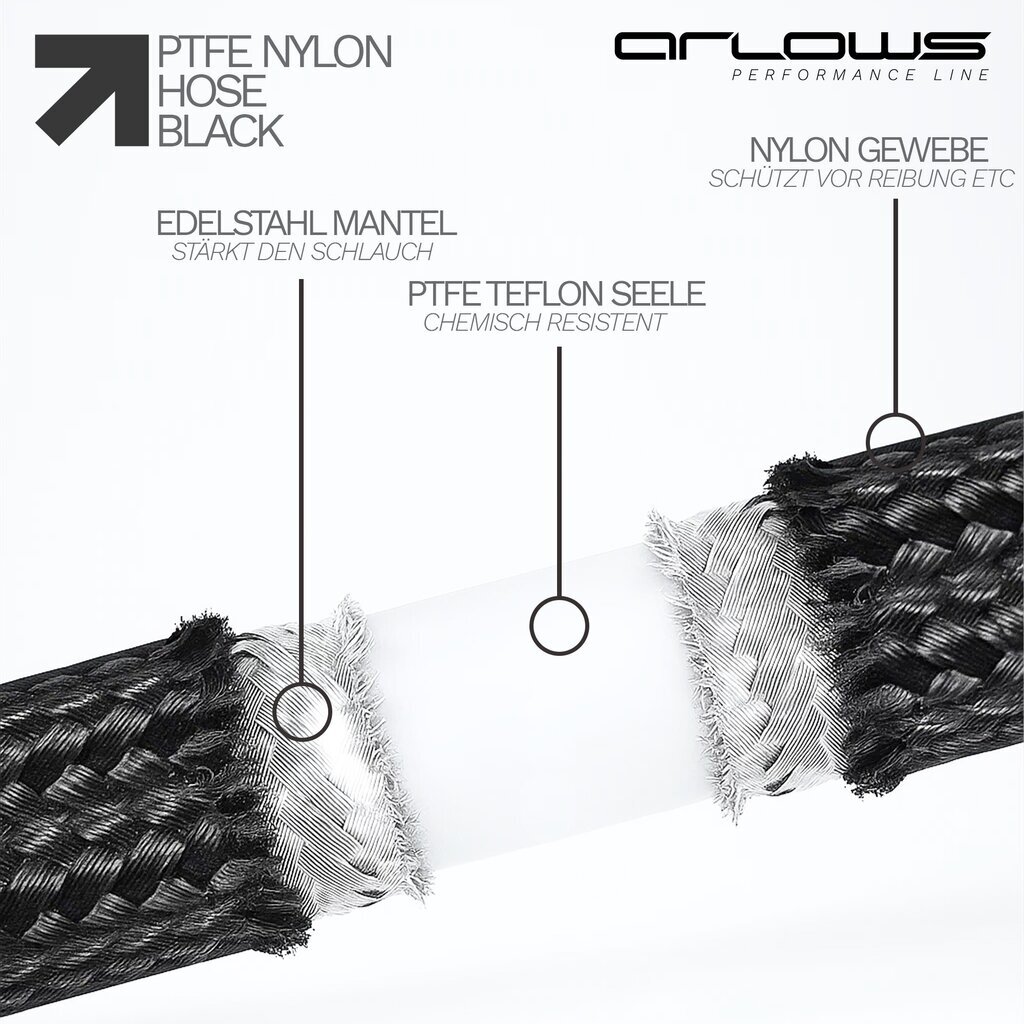

PTFE CORE
Teflon inside. Chemically inert, smooth, pressure stable. No swell from modern fuels.
BLACK NYLON BRAID
Protection against stone chips, abrasion and UV. Quiet look in the bay and under the car.
-50 °C TO +230 °C
Cold start to hot oil and fuel runs. 2900 PSI working pressure, burst up to 7000 PSI.
DASH 4 TO 12
Pick the size above. 1 metre per unit, set quantity to the length you need.
Use cases
- Fuel: feed and return, rail, E85, petrol, diesel, methanol
- Oil and hydraulics: oil cooler, catch can, power steering, pressure oil
- Air: boost, vacuum, pneumatic lines
- Automotive and motorsport: engine bay, underbody, black show setup
- Van, marine, generator, industry: media lines next to heat and abrasion
Technical data
| Dash | Thread | ID | OD | Working | Burst |
|---|---|---|---|---|---|
| Dash 4 | 7/16-20 UNF | 5.56 mm | 11.13 mm | 2900 PSI | 7000 PSI |
| Dash 6 | 9/16-18 UNF | 8.73 mm | 13.89 mm | 2900 PSI | 7000 PSI |
| Dash 8 | 3/4-16 UNF | 11.12 mm | 16.28 mm | 2900 PSI | 7000 PSI |
| Dash 10 | 7/8-14 UNF | 14.27 mm | 20.24 mm | 2900 PSI | 7000 PSI |
| Dash 12 | 1 1/16-12 UNF | 17.47 mm | 23.82 mm | 2900 PSI | 6000 PSI |
- Part number: AR9107
- Build: PTFE inner hose + black nylon braid
- Temperature: -50 °C to +230 °C
- Sold as: 1 metre per unit, quantity = running metres
- Fittings: PTFE AN fittings only, not included
Fitment
Cut the hose square, assemble with a PTFE fitting and olive per the fitting instructions. Use PTFE rated AN fittings only, not classic push on rubber fittings. The nylon braid is not heat wrap on a manifold. Add a clamp or P clip at abrasion points.
| Item number: | AR9107 |
| Contents: | 1,00 m |
